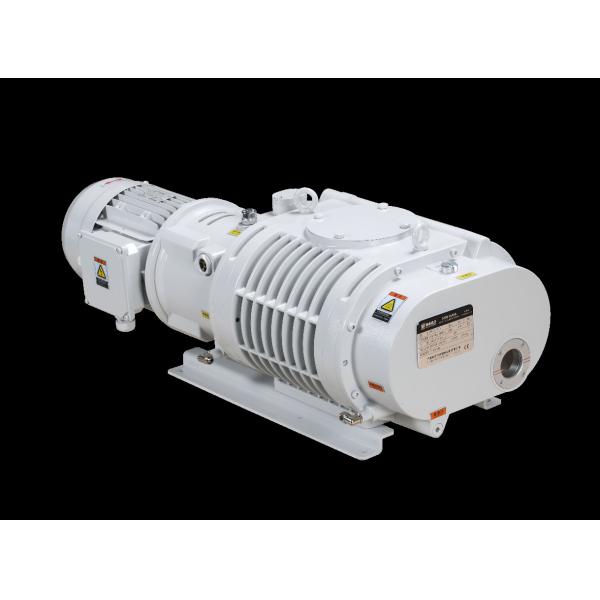

BSJ300L Aluminium Alloy Roots Vacuum Pump, Booster Pump 1000m³/h 3.7kW
BSJ300L Aluminium Alloy Roots Vacuum Pump, Booster Pump 1000m³/h 3.7kW
BSJ300L Aluminium Alloy Roots Vacuum Pump, Booster Pump 1000m³/h 3.7kW
BSJ300L Aluminium Alloy Roots Vacuum Pump, Booster Pump 1000m³/h 3.7kW
BSJ300L Aluminium Alloy Roots Vacuum Pump, Booster Pump 1000m³/h 3.7kW
BSJ300L Aluminium Alloy Roots Vacuum Pump, Booster Pump 1000m³/h 3.7kW
Specifications
Brand Name :
BSC
Model Number :
BSJ300L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD2450 per set
Payment Terms :
T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-30 days
Packaging Details :
Plywooden case
Surface :
Painting
Color :
White
Pumping Rate :
1000 m³/h(16667L/min)
Material :
7047
Features :
Heat sink, Corrosion resistance, Efficient energy saving
G.W. :
128kgs
N.W. :
115kgs
Meas. :
102*50*50cm
Description

1000 m³/h White, 3.7kW Mechanical Booster Pump, Roots Pump BSJ300L

Description :

Roots vacuum pumps, which are also called Roots blowers, are rotary plunger-type pumps where two symmetrically shaped impellers rotate in opposite directions inside the pump housing.

Characteristics:

  • The use of an oil-free intermediate seal, a multiple-sealed way to ensure a high clean vacuum environment in the rotor chamber.
  • Advanced proceesing to ensure the good geometrical symmetry of the rotors, as well as low noise and long service life.
  • A special shaft seal is used to achieve long, stable running without oil leakage.
  • The BSJ-L series is made of all-aluminum alloy, a heat sink, corrosion-resistant, and efficient, energy-saving. The BSJ-LC series is made of cast iron. The unique liquid coupling method enables the pump to start directly under the atmosphere, which greatly reduces the time of pumping.
  • Compact structure, light weight, and small volume.

​Technical Parameter :

Model Units BSJ300L
Pumping Rate 50 Hz m³h-1 / Lmin-1 1000/16667
60 Hz 1200/20000
Max Inlet Pressure 50Hz Pa 1.3x103
60Hz Pa 1.1x103

Ultimate Vacuum

 Pa/ mbar

0.4/4×10-3
Motor Power kW(hp) 3.7 (5.0)
Inlet -- VG100
Outlet -- VF80
Cooling Method Water cooled
Cooling Water Flow(L) 3.0
Differential Pressure (MPa) 0.1
Oil Need L 2.0
Ambient Temp. ℃ 5~40
Oil -- BSO-46

Note: The value of 'Ultimate Pressure' in this sheet is measured by a Pirani gauge when the Baosi special pump oil is used, and the value should be 4x10-3 if the McLeod gauge is used.

The cooling water temperature of the inlet port must be 5~30℃. When the temperature is too low, keep it in an environment that is not easy to condense.

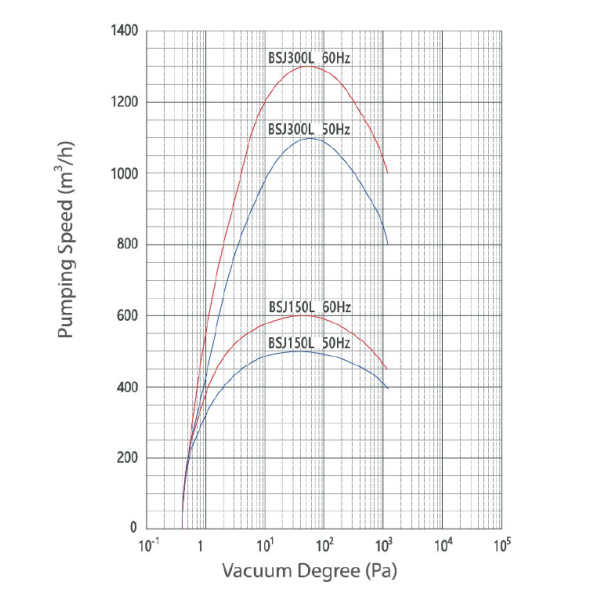

Performance Curve:

BSJ300L Aluminium Alloy Roots Vacuum Pump, Booster Pump 1000m³/h 3.7kW

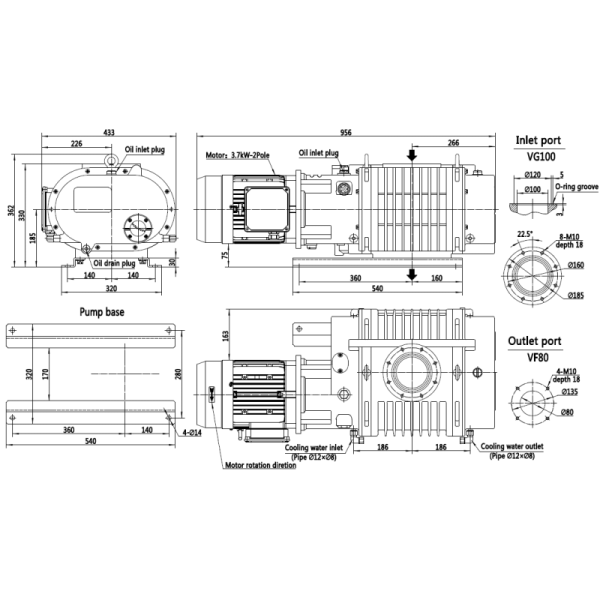

Dimensions:

BSJ300L Aluminium Alloy Roots Vacuum Pump, Booster Pump 1000m³/h 3.7kWBSJ300L Aluminium Alloy Roots Vacuum Pump, Booster Pump 1000m³/h 3.7kW

Applications

  • Vacuum distillation
  • Vacuum packaging
  • Thin film coating
  • Freeze drying
  • Electrical engineering
  • Printing
  • Surface treatment technique
  • Wind Energy
  • Ceramics and glasses

We provide you with individual support, we train you, and we offer 24/7 service worldwide.
