RM520N 5G IoT Wireless Modules Multipurpose B46 LAA for Industrial
RM520N 5G IoT Wireless Modules Multipurpose B46 LAA for Industrial
RM520N 5G IoT Wireless Modules Multipurpose B46 LAA for Industrial
RM520N 5G IoT Wireless Modules Multipurpose B46 LAA for Industrial
RM520N 5G IoT Wireless Modules Multipurpose B46 LAA for Industrial
RM520N 5G IoT Wireless Modules Multipurpose B46 LAA for Industrial
Specifications
Brand Name :
Quectel
Model Number :
RM500Q-GL
Certification :
CE、FCC、RoHS
Place of Origin :
China
MOQ :
100
Price :
USD 500
Payment Terms :
D/A, L/C, D/P, T/T, MoneyGram, Western Union
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
30mm × 52mm × 2.3mm
NSA :
n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
SA :
n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
LTE-FDD :
B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
LTE-TDD :
B34/B38/B39/B40/B41/B42/B43/ B48
LAA :
B46
WCDMA :
B1/ 2/ 4/ 5/ 8/ 19
Description

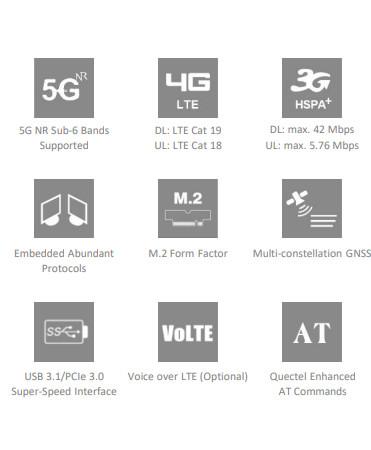

5G Modules RM520N for Industrial

  • 5G NR Sub-6GHz module
  • M.2 form factor
  • 30mm × 52mm × 2.3mm
  • SA data rates: 2.4Gbps (DL) / 900Mbps (UL)
  • NSA data rates: 3.4Gbps (DL) / 550Mbps (UL)
  • Extended temperature range of -40°C to +85°C

The RM520N-GL is a 5G IoT module specially optimized for IoT/eMBB applications, designed in an M.2 form factor in accordance with the 3GPP Release 16 specification, which supports both 5G NSA and SA modes.

The RM520N-GL is compatible with Quectel's 5G module series RM50xQ, LTE-A Cat 6 module EM06, Cat 12 module series EM12/EM12xR/EM120K, and Cat 16 module EM160R-GL, facilitating migration from LTE-A to 5G.

The RM520N-GL is an industrial-grade module for industrial and commercial applications only. It covers nearly all the mainstream carriers worldwide and supports Qualcomm® IZat location technology Gen9C Lite (GPS, GLONASS, BDS and Galileo). The integrated GNSS receiver greatly simplifies the product design and provides quicker, more accurate and dependable positioning capability.

RM520N 5G IoT Wireless Modules Multipurpose B46 LAA for IndustrialRM520N 5G IoT Wireless Modules Multipurpose B46 LAA for Industrial
