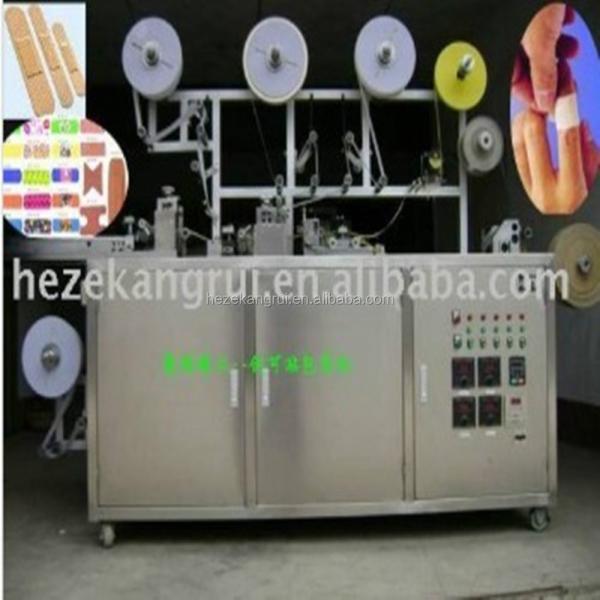

Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Customized KC-360N-D Waterproof Elastic Material Band Aid Machine And Processing
Specifications
Place of Origin :
Shandong, China
Brand Name :
RuiKang
Model Number :
KC-360N-D
Certification :
Other
Packaging Details :
Standard exporting wooden cases or as customers' requirement.
Supply Ability :
10 Set/Sets per Month
Price :
$12,000.00 - $19,000.00/sets
Condition :
New
Product Type :
Other
Processing Type :
Other
Voltage :
220V/380V
Power :
1.7KW or customized
Dimension(L*W*H) :
3.3*0.8*1.8m
Weight :
600kg
After-sales Service Provided :
Engineers available to service machinery overseas
Shell :
Stainless
Port :
QingDao Port or as buyer's requirement
MOQ :
1
Description

Useage

Mainly suitable for the cartoon and with beautiful pattern band-aid production packaging.

Characteristics

1.This machine adopts: PLC Programmable Controller,Computer touch screen, Human-machine interface automatic control system,Color code tracking positioning system. Color tracking positioning system adopts frequency Converter to regulate speed,thus it's easy to adjust the production speed.

2.KR-360N-D model uses Multi-floating roller buffer device,so that the anti-adhesive paper and the tape are steady while towing-striping-compounding at high speed,reducing the deformation fight wrinkles and the damage to the tape.

3.The machine using light -control switch to control solenoid,so it can change the number of products to cut off automatically.

4.KR-360N-D model can easily adjust the working condition of tape,pinhole,medicine belt and wrapping paper to the correct location.

5.KR-360N-D model's drug pad feeding and tape walking are in the same direction

6.Machine drive adopts timing belt wheel drive mode.The equipment is smoothly when it is in high-speed operation and stopped,while eliminating the phenomenon of machine-inch movement and noise.

7.The outer casing of the eqipment using stainless steel packaging easy cleaning and maintenance,in line with national health standards.

Main Technical Paramerers

Model KR-360N-D
Production capacity 260-320 pcs/min
Total power 1.7KW
Machine dimension 3.3*0.8*1.8m(L*W*H)
Machine weight 600kgs

Mainly specification can be made by KC-360N-D
