Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
Specifications
Place of Origin :
Shandong, China
Brand Name :
Ruikang
Packaging Details :
Standard exporting wooden cases
Supply Ability :
150 Set/Sets per Month
Price :
$10,000.00 - $18,000.00/sets
Warranty :
1 Year
Type :
Other, Making and Packing Machine
Applicable Industries :
Medical
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor
Condition :
New
Application :
Medical
Packaging Type :
Cold/hot sealing packing paper
Packaging Material :
Paper, Film
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220V/380V
Power :
1.5kw
Weight :
600 KG
Dimension(L*W*H) :
3.3*0.8*1.8m
Key Selling Points :
Easy to Operate
After-sales Service Provided :
Engineers available to service machinery overseas
Shell :
Stainless steel
Packing speed :
0-360pieces/minute
Plaster size :
72*19mm/60*19mm/65*19mm/76*19mm/70*18mm/76*25mm/22mm ect.
Port :
Qingdao,China or as buyer's request
MOQ :
1
Description

We are manufacturer in China

Useage

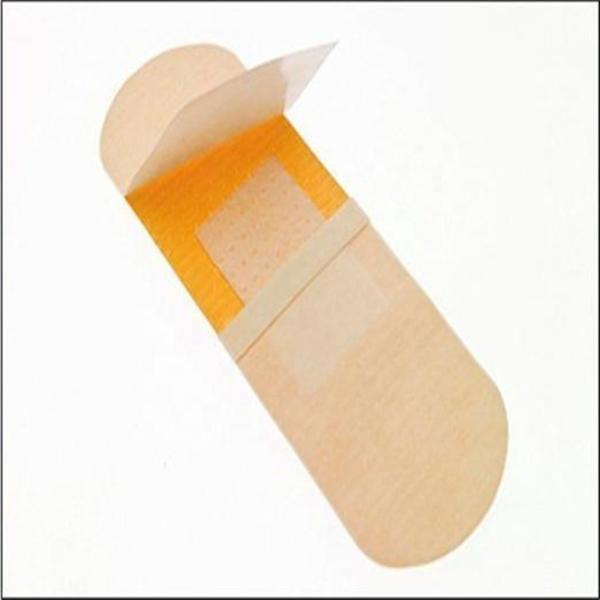

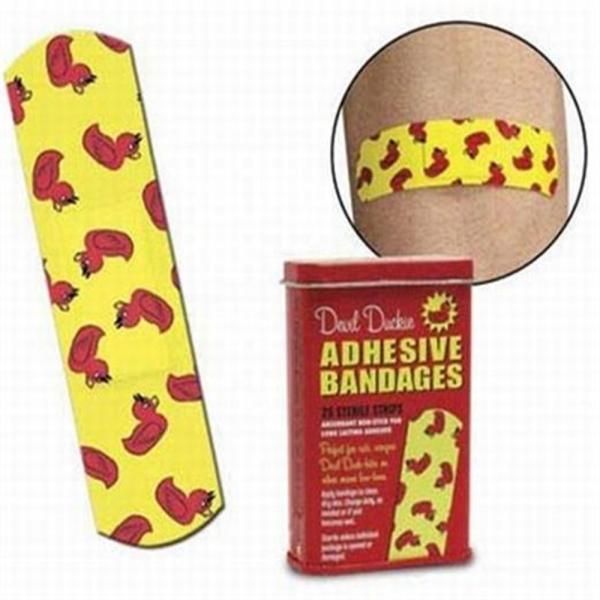

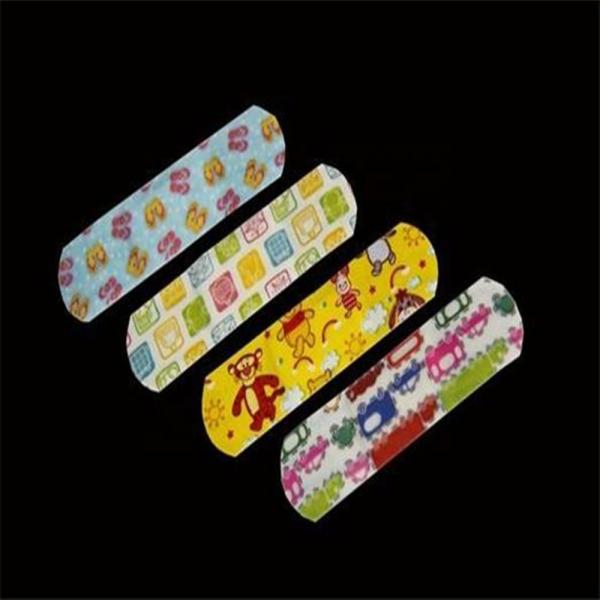

Mainly suitable for the cartoon and with beautiful pattern band-aid production packaging.

Characteristics

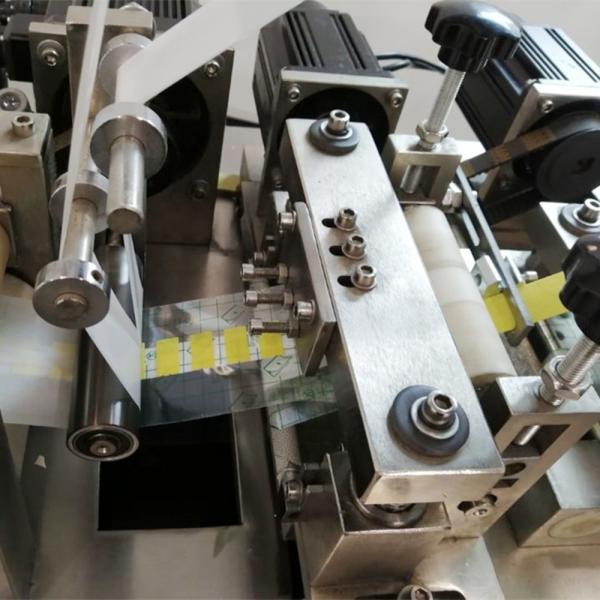

1.This machine adopts: PLC Programmable Controller,Computer touch screen, Human-machine interface automatic control system,Color code tracking positioning system. Color tracking positioning system adopts frequency Converter to regulate speed,thus it's easy to adjust the production speed.

2.KC-360N-D model uses Multi-floating roller buffer device,so that the anti-adhesive paper and the tape are steady while towing-striping-compounding at high speed,reducing the deformation fight wrinkles and the damage to the tape.

3.The machine using light -control switch to control solenoid,so it can change the number of products to cut off automatically.

4.KC-360N-D model can easily adjust the working condition of tape,pinhole,medicine belt and wrapping paper to the correct location.

5.KC-360N-D model's drug pad feeding and tape walking are in the same direction

6.Machine drive adopts timing belt wheel drive mode.The equipment is smoothly when it is in high-speed operation and stopped,while eliminating the phenomenon of machine-inch movement and noise.

7.The outer casing of the eqipment using stainless steel packaging easy cleaning and maintenance,in line with national health standards.

Main Technical Paramerers

Model KC-360N-D
Production capacity 0-360 pcs/min
Size

72*19mm/60*19mm/65*19mm/76*19mm/70*18mm

/76*25mm/22mm ect.
Total power 1.7KW
Machine dimension 3.3*0.8*1.8m(L*W*H)
Machine weight 600kgs

Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid MachineFully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine

Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine

Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine

Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid MachineFully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine

Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid MachineFully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid MachineFully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid MachineFully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid MachineFully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid MachineFully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine

Fully Automatic KC-360N-D Adhesive Bandage Sticking Plaster Band Aid Machine
