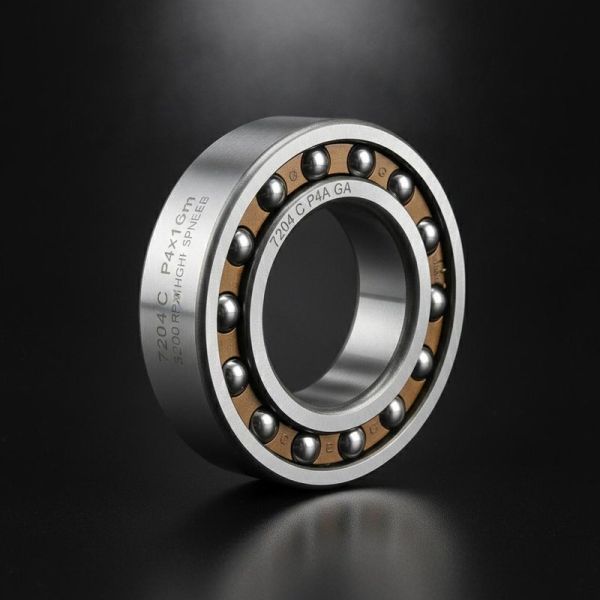

7204 C P4A GA Angular Contact Ball Bearing 20x47x14mm 32000RPM High Speed with P4A Precision and 15° Contact Angle for CNC Spindle
7204 C P4A GA Angular Contact Ball Bearing 20x47x14mm 32000RPM High Speed with P4A Precision and 15° Contact Angle for CNC Spindle
Specifications
Brand Name :
WNRLN
Pairing Configurations :
DB, DT, TBT, QBC
Grease :
Kluberspeed NBU15
Payment Terms :
T/T, L/C, PayPal, Western Union
Supply Ability :
50000 Pieces per Month
Delivery Time :
3-5 working days for stock, 15-25 days for production
Packaging Details :
WNRLN branded color box with anti-rust paper, export-grade corrugated carton with shock-proof foam
Outer Diameter (D) :
47 mm
Rolling Element :
G5 Grade Steel Ball
Place of Origin :
Zhejiang, China
Contact Angle :
C (15°)
Speed Limit (Grease) :
32,000 RPM
Speed Limit (Oil) :
48,000 RPM
Price :
USD 8-18 / Piece
MOQ :
10 Pieces
Bore Diameter (d) :
20 mm
Preload :
Light Preload (GA)
Cage Material :
Nylon
Dynamic Load (Cr) :
14.60 kN
Width (B) :
14 mm
Preload-B :
252 N
Certification :
ISO 9001:2015
Preload-C :
527 N
Model Number :
7204 C P4A GA
Preload-A :
74 N
Static Load (Cor) :
8.15 kN
Description
7204 C P4A GA Angular Contact Ball Bearing 20x47x14mm 32000RPM High Speed for CNC Spindle
7204 C P4A GA Angular Contact Ball Bearing

The 7204 C P4A GA is a precision angular contact ball bearing designed for high-speed CNC machine tool spindles and electric spindles. With a 15° (C-type) contact angle and P4A precision tolerance, it delivers exceptional running accuracy at speeds up to 32,000 RPM under grease lubrication, making it the fastest bearing in the 72 series lineup.

Key Features
  • Ultra-High Speed: 32,000 RPM grease limit, 48,000 RPM oil limit — the highest in the 72 series for its size class.
  • P4A Precision Grade: Tight dimensional tolerances and low runout ensure smooth spindle operation at elevated speeds.
  • G5 Grade Steel Balls: Imported precision balls with consistent sphericity reduce vibration and extend service life.
  • Kluberspeed NBU15 Grease: High-speed lubricant factory-filled for optimal thermal stability.
  • Flexible Pairing: Supports DB, DT, TBT, and QBC configurations for tailored stiffness and load distribution.
Technical Specifications
Parameter Value
Bore Diameter (d) 20 mm
Outer Diameter (D) 47 mm
Width (B) 14 mm
Dynamic Load Rating (Cr) 14.60 kN
Static Load Rating (Cor) 8.15 kN
Speed Limit (Grease, Steel Ball) 32,000 RPM
Speed Limit (Oil, Steel Ball) 48,000 RPM
Speed Limit (Grease, Ceramic Ball) 43,000 RPM
Speed Limit (Oil, Ceramic Ball) 63,000 RPM
Contact Angle C (15°)
Preload Light Preload (GA)
Preload-A / Preload-B / Preload-C 74 N / 252 N / 527 N
Applications
  • Small CNC machine tool spindles
  • High-speed grinding spindles
  • Precision rotary tables
  • High-speed electric motors
Contact us today for volume pricing, custom pairing arrangements, or technical consultation.
