High Efficiency Copper Ore Grinding 20mm Mine Mill
High Efficiency Copper Ore Grinding 20mm Mine Mill
Specifications
Brand Name :
JINMA
Model Number :
cement mill
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
US$ 2500-40000/piece
Payment Terms :
T/T
Delivery Time :
one month
Packaging Details :
Standard shipping packaging
type :
Ball Grinder
name :
High Efficiency Copper Ore Grinding 20mm Mine Mill
specifications :
Various specifications
Mine :
Gold Ore
Application :
Mines
Advantage :
Energy saving
Motor Type :
AC Motor
Description

High Efficiency Copper Ore Grinding 20mm Mine Mill

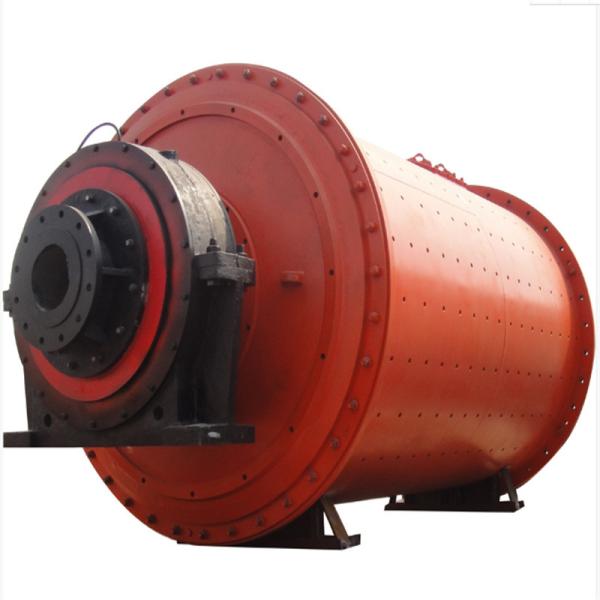

Ball mill machine is the key equipment for recrushing the materials after they are primarily crushed. It is widely used for the dry type or wet type grinding of all kinds of ores and other grindable materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry. The ore grinding methods of ball mill include dry type and wet type.

Ball mill machine is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. The hollow shaft uses steel casting, the inner lining can be dismantled and changed, and the rotary rack wheel uses casting gear hobbing and inside the cylinder there is wear-resisting lining board which has fine abrasion performance. This machine has stable operation and reliable performance.

Name High Efficiency Copper Ore Grinding 20mm Mine Mill
Advantage High Efficiency
Grinding size 20mm

PARAMETER
Technical Specifications and Performance

Specification Production Capacityt/h Rotating speed
r/min		 Feed particle size Reducer Power
mm Models kw

MQ Φ 1.83x6.4 5-6 23.3 ≤ 20 ZD 60 210
MQ Φ 2.2x9.5 11-15 21.4 ≤ 20 ZD 80 475
x12 12-16 21.4 ≤ 20 ZD 80 570
MQ Φ 2.4x8 14-18 20.4 ≤ 20 ZD 110 475
x9 12-16 20.4 ≤ 20 ZD 110 570
x10 16-19 20.4 ≤ 20 ZD 110 630
x11 17-21 20.4 ≤ 20 ZD 110 630
x13 22-25 21.4 ≤ 20 ZD 110 800
MQ Φ 2.6x13 26-30 19.11 ≤ 20 ZD 110 1000
MQ Φ 3x13 33-37 19.36 ≤ 20 MBY 900 1400
MQ Φ 3.2x13 45-50 17.42 ≤ 20 MBY 1000 1600
MQ Φ 3.4x13 50-55 17.2 ≤ 20 JDX110 2000
MQ Φ 3.5x13 20-60 17 ≤ 20 JDX110 2000
MQ Φ 3.6x13 55-60 16.5 ≤ 20 JDX120 2240
MQ Φ 3.8x13 40-65 16 ≤ 20 JDX120 2500
MQ Φ 4.0x13 65-70 15.5 ≤ 20 DBS280 2800
MQ Φ 4.2x13 75-90 15 ≤ 20 MFY320 3150
MQ Φ 4.3x14 80-90 15 ≤ 20 MFYX360 3550

High Efficiency Copper Ore Grinding 20mm Mine Mill

High Efficiency Copper Ore Grinding 20mm Mine MillHigh Efficiency Copper Ore Grinding 20mm Mine Mill
