High Chrome White iron Chute Liners Sand Casting Parts for Crusher
High Chrome White iron Chute Liners Sand Casting Parts for Crusher
High Chrome White iron Chute Liners Sand Casting Parts for Crusher
High Chrome White iron Chute Liners Sand Casting Parts for Crusher
Specifications
Brand Name :
Chen's Liner
Model Number :
DF720
Certification :
ISO 9001:2008
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
3Ton/Tons
Price :
USD 2500~3200 / Ton
Payment Terms :
L/C,T/T
Supply Ability :
4500 Ton/Tons / Year
Delivery Time :
It depends on quantity to be ordered.
Packaging Details :
Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo
Port :
Shanghai
Application :
Mining Industry
Material :
Iron
Dimensions :
As per drawing
Hardness :
More than HRC58
Product Name :
Chute Liners
MOQ :
2tons
Inspection: :
UT&MT
Impact Value： :
More than AK49J
Heat Treatment： :
Quenching&Tempering
Description

High Chrome White iron Chute Liners Sand Casting Parts for Crusher


1. Hardness difference from surface to center is less than HRC2.
2. The steel liners have higher reliability in AG mills and SAG mills.
3. The Pearlitic Cr-Mo Alloy Steel mill liners are widely used for AG mills, SAG mills, large ball mills.


Specification

Model Number DF720
Material High Cr Cast Iron
Hardness More than HRC58
Dimension As per drawing
Casting Process Sand Casting
Heat Treatment Process Quenching and Tempering
Impact Value ≥AK10J
Inspection

Dimensional Inspection
Chemical Composition Inspection
Hardness Inspection

UT Test
Application Coal Mill,Cement Mill,Mining Industry etc.
MOQ 2Tons
Delivery Time Depends on the quantity to be ordered.
Port Shanghai
Package Steel Pallets
Payment Terms T/T,L/C


Technical Parameters

Item High Cr White Iron
C 2.4-3.2
Si 0.6-1.2
Mn 0.5-1.0
Cr 12.0-30.0
S ≤0.04
P ≤0.06
Mo 0.1-3.0
Cu 0.1-1.0
Ni 0-0.3
Re -
Equivalent
Specification		 GB/T8263-1999
AS2027 Cr27
AS2027 CrMo 15/3
AS2027 CrMo 20/2/1
ASTM A532 Class Ⅲ Type A 25%Cr
ASTM A532 Class Ⅱ Type B 15%Cr-Mo
BS 4844 3E
DIN1695
NFA32401
Material Type Martensite Matrix
Hardness HRC≥56
Impact Value AK≥4J

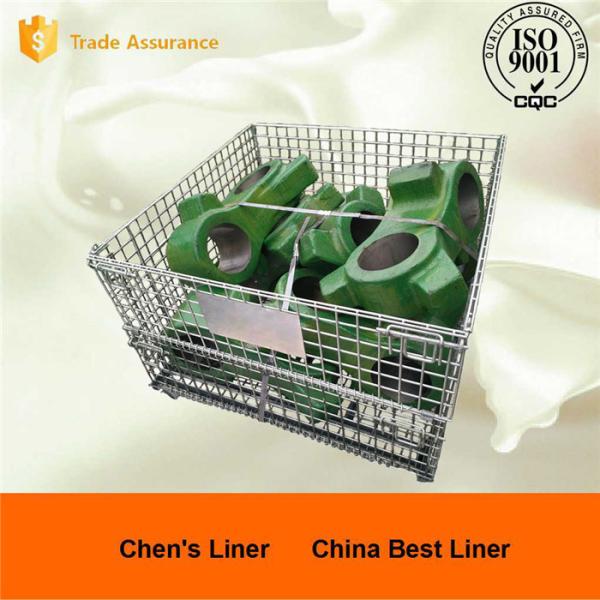

Product Photo
High Chrome White iron Chute Liners Sand Casting Parts for Crusher High Chrome White iron Chute Liners Sand Casting Parts for Crusher
Summarization
High Cr white iron material possess a combination of superior abrasion resistance and a reasonable
degree of toughness. The high Cr castings have longer service life than the other material,such as
high Mn steel and Cr-Mo alloy steel.And now it is widely used in the working condition of high wear and low impact,such as dry grinding process,coal mills,cement mills due to its excellent performance.
