Specifications
Brand Name :
KINGDA
Model Number :
KDGQM
Certification :
TUV
Place of Origin :
Hunan, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
Negotiable
Delivery Time :
15Day
Packaging Details :
The packages are different in different sizes
Product name :
Jar Ball Mill
Type: :
Ball Mill
Metal material: :
304 stainless steel
Weight: :
100kg
Warranty: :
1 year
Applicable Industries: :
Lab Research
After-sales Service Provided :
Video technical support
Working Position :
4 working positions
Rotation Speed :
90-870 rpm
Feeding Size (mm) :
≥5mm
Output Size (mesh): :
1000 Mesh / 13µm
Description
High-Efficiency Dual-Workstation Laboratory Rolling Ball Mill, Widely Applied in Electronic Materials

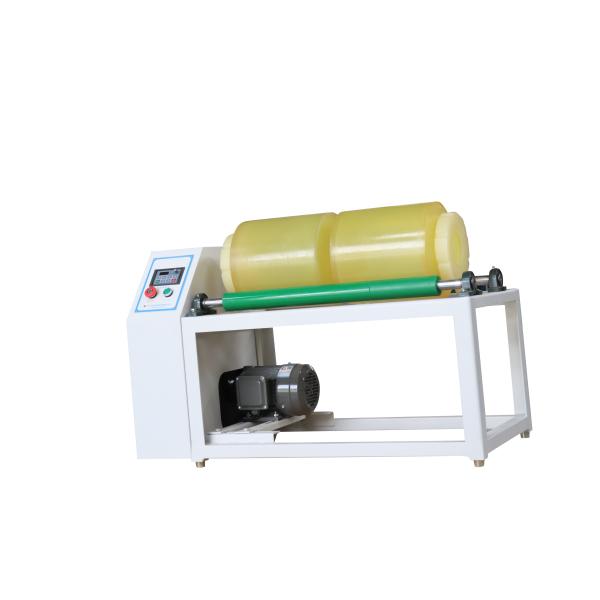

The Rolling Ball Mill is a versatile powder grinding and mixing device designed for ultra-fine processing in laboratories and small-scale production environments.
Also referred to as a multi-position rolling mill, it is widely used for scientific research, teaching, material experiments, and pilot production. Its modern and compact design, user-friendly operation, high efficiency, and uniform grinding performance make it an ideal choice for precision material processing.

This equipment is extensively applied in industries such as electronic materials, magnetic materials, pharmaceuticals, ceramic glazes, metal powders, nonmetallic minerals, and new material development.
With an optimized rotation speed design, the mill jars are driven by durable rubber rollers. As the jars rotate, the grinding media inside move in an inclined rolling motion, ensuring thorough material dispersion and producing uniform micro-powders.

The system is equipped with a digital timing control panel, featuring pause and cumulative timing functions, allowing users to set customized milling durations. This intelligent control design improves efficiency, reduces manual effort, and simplifies the overall operation process.

Laboratory Jar Mill with Multiple Grinding Stations for Material Testing
Working Principle
When the machine operates, the grinding media and the materials within the cylinder are rotated to a specific height. Due to gravity, they then fall down along the tube wall. This process crushes the materials through the impact of the grinding media, as well as through the friction and shear forces generated by the rolling and sliding of the grinding media. This method not only saves time and labor but also makes operation straightforward.
Applications
Rolling Jar Mill is mainly applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.
Features
  • More kinds of sample material can be ground each time.
  • It can be operated intermittently or continuously.
  • Timing can be set according to users' needs.
  • Suitable for ultrafine grinding with high efficiency of pulverizing.
  • Rubber roller is made of special materials and durable in use.
Mill Pot Options
Materials of jars for choosing: Agate, Zirconia, Alumina ceramic (Corundum), Tungsten Carbide, Stainless steel, PU (Polyurethane), PU with stainless steel liner, PTFE (Polytetrafluoroethylene), Nylon etc. Vacuum jars are available as well.
Mill Balls Options
Materials of balls for choosing: Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel, PU, PTFE, Nylon, Carbon steel, PU etc. Sizes for choosing: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm
Pricing Information
Item NO. Description Qty Unit price (exw-works) Total price
1 GQM-2-15L rolling ball mill 1set (220V) USD1068.0/set USD1068.0
2 10L 95% alumina rolling ball mill jar 4pc USD480.0/pc USD1920.0
3 92% alumina grinding balls 15mm 20kg USD5.0/kg USD100.0
Total price USD 3088.0
We can delivery it within 7-10 working days after getting your full payments. (total value: USD3088.0)
Frequently Asked Questions
1. Which procedure to secure your Quality?
Our company has own research & development and production base, the products have been calibrated by central laboratory professionals before they leave the factory, ensure the accuracy of test results and authority.
2. What's your warranty?
One-year warranty period is provided. If any problem while you are using the machine, you may contact Service Hotline: 0086 15367874686
3. Can you provide testing service of grinding powder experiment before we place order?
Yes. Sample powder testing is available for any customer who sends material to us, and powder testing is also free of charge.
4. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.
5. Payment methods?
T/T, L/C, D/P and so on.
6. Packing method?
Standard export wooden box packaging
7. What's the delivery time?
We have lots of regular Models in stock. Packing can be done within 3 working days after your full payment is confirmed. Delivery time is about 5 days by courier. Therefore, you are expected to get the equipment in about 10 days after your payment confirmed
