Specifications
Brand Name :
KINGDA
Model Number :
KDGQM
Certification :
TUV
Place of Origin :
Hunan, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
Negotiable
Delivery Time :
15Day
Packaging Details :
The packages are different in different sizes
Product name :
Jar Ball Mill
Type: :
Ball Mill
Metal material: :
304 stainless steel
Weight: :
100kg
Warranty: :
1 year
Applicable Industries: :
Lab Research
After-sales Service Provided :
Video technical support
Working Position :
4 working positions
Rotation Speed :
90-870 rpm
Feeding Size (mm) :
≥5mm
Output Size (mesh): :
1000 Mesh / 13µm
Description
Safe & low noise – Suitable for universities, R&D labs, and material research centers.
Heavy-duty rollers ensure smooth rotation and uniform grinding for ultra-fine powder processing in laboratory and small batch production environments.
Product Overview
The Rolling Ball Mill is a precision powder milling equipment designed for ultra-fine grinding and mixing applications. Also known as a multi-position rolling ball mill, this system combines elegant design with robust performance for scientific research, education, experimentation, and small-scale production.
Safe & low noise – Suitable for universities, R&D labs, and material research centers.
Working Principle
During operation, grinding media and materials within the cylinder are elevated to a specific height and then descend due to gravity along the tube wall. This process achieves material crushing through media impact, combined with friction and shear forces generated by rolling and sliding media movement.
Safe & low noise – Suitable for universities, R&D labs, and material research centers.
Applications
This rolling jar mill serves multiple industries including electronic materials, magnetic materials, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, and new materials development.
Key Features

1.Multiple sample material processing capacity

2.Intermittent or continuous operation modes

3.Programmable timing control for customized workflows

4.High-efficiency ultrafine grinding capabilities

5.Durable rubber rollers made from specialized materials

6.Compact design with easy operation and maintenance

Mill Pot Options
Available in various materials: Agate, Zirconia, Alumina ceramic (Corundum), Tungsten Carbide, Stainless steel, PU (Polyurethane), PU with stainless steel liner, PTFE (Polytetrafluoroethylene), Nylon. Vacuum jars also available.

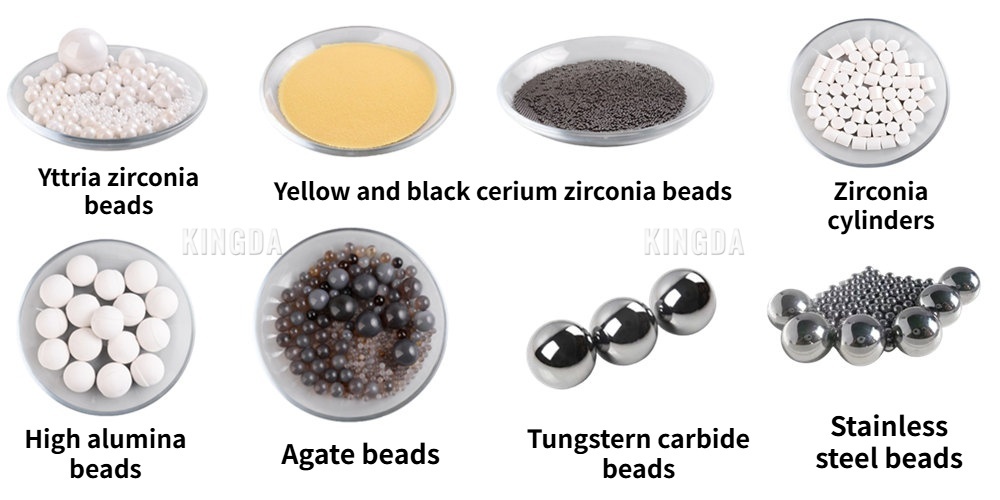

Mill Balls Options
Material choices include: Agate, Zirconia, Alumina, Tungsten Carbide, Stainless steel, PU, PTFE, Nylon, Carbon steel. Sizes available: 1mm, 3mm, 5mm, 8mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm.
Safe & low noise – Suitable for universities, R&D labs, and material research centers.

Frequently Asked Questions
Which procedure to secure your Quality?
Our company maintains its own research & development and production facilities. All products undergo professional calibration by central laboratory experts before leaving the factory, ensuring test result accuracy and authority.
What's your warranty?
One-year warranty period provided. For any operational issues, contact Service Hotline: 0086 15367874686
Can you provide testing service of grinding powder experiment before we place order?
Yes. We offer complimentary sample powder testing for customers who provide materials for evaluation.
Our country's power supply and plug are different, how do you solve it?
We customize equipment with appropriate transformers and plugs to match your local power requirements and standards.
Payment methods?
T/T, L/C, D/P and other standard payment options.
Packing method?
Standard export wooden box packaging for secure international shipping.
What's the delivery time?
We maintain stock of regular models. Packaging completed within 3 working days after payment confirmation. Courier delivery approximately 5 days. Total expected delivery time: about 10 days after payment confirmation.
