Specifications
Model Number :
Retsch PM100 PM200 PM300 PM400
Type :
Ceramic Parts, 50ml volume zirconia ball mill jar for Retsch PM100 PM200 PM300 PM400
Size :
50 ml / 80 ml / 125 ml / 250 ml / 500 ml
Usage :
small lab planetary ball
Material :
Zirconia Ceramic, Zirconium Oxide -ZrO2
OEM :
available
Product name :
retsch milling jars
Price :
$599.00 - $799.00/sets
Application :
Industrial Ceramic
density :
6.02g/cm3
surface :
good surface zirconia milling jar
Abrasion Resistance :
Very good
Shape :
cylindrical
Place of Origin :
Hunan, China
Brand Name :
KINGDA
Description

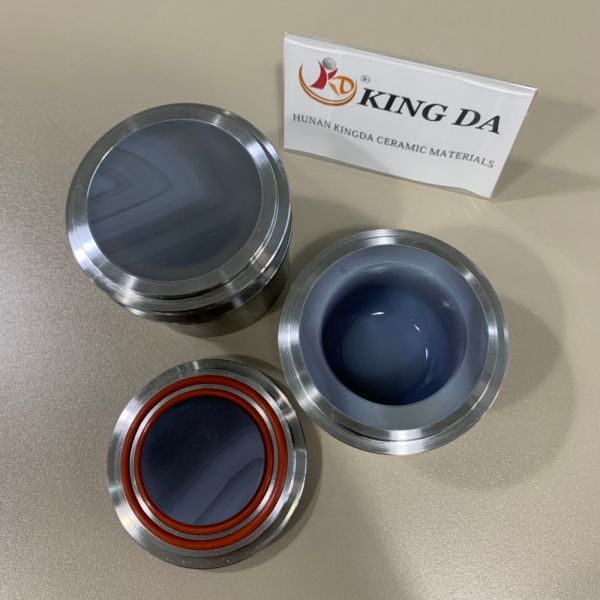

Lab Grinding Jar 50ml - Natural Agate Stainless Steel Jacket Ceramic Parts
Compatible with Retsch PM Series for Industrial Ceramic Applications
Highly polished natural agate (SiO₂) grinding jars featuring excellent chemical stability, low contamination and high hardness. Agate jars provide outstanding resistance to acids, alkalis and organic solvents, making them ideal for high-purity sample preparation and precision grinding applications.
50ml Volume Zirconia Ceramic Lab Grinding Jar Compatible with Retsch PM Series for Industrial Ceramic 50ml Volume Zirconia Ceramic Lab Grinding Jar Compatible with Retsch PM Series for Industrial Ceramic
Optimal Grinding Configuration
To produce optimum grinding results, the jar size should be adapted to the sample amount to be processed. The grinding balls are ideally sized 3 times bigger than the largest sample piece. Following this rule of thumb, the number of grinding balls for each ball size and jar volume is indicated in the table below.
To pulverize, for example, 200 ml of a sample consisting of 7 mm particles, a 500 ml jar and grinding balls sized at least 20 mm or larger are recommended. According to the table, 25 grinding balls are required.
50ml Volume Zirconia Ceramic Lab Grinding Jar Compatible with Retsch PM Series for Industrial Ceramic
Typical Sample Materials
Zirconia planetary ball mills are perfectly suitable for size reduction and dispersing of various materials including:
  • Alloys, bentonite, bones, carbon fibres
  • Catalysts, cellulose, cement clinker, ceramics
  • Charcoal, chemical products, clay minerals, coal
  • Coke, compost, concrete, electronic scrap
  • Fibres, glass, gypsum, hair, hydroxyapatite
  • Iron ore, kaolin, limestone, metal oxides
  • Minerals, ores, paints and lacquers, paper
  • Pigments, plant materials, polymers, quartz
  • Seeds, semi-precious stones, sewage sludge
  • Slag, soils, tissue, tobacco, waste samples, wood
50ml Volume Zirconia Ceramic Lab Grinding Jar Compatible with Retsch PM Series for Industrial Ceramic
Application Fields
The grinding jars are widely applied in geology, mineral analysis, electronics, ceramics, chemical engineering, materials research, environmental protection and other laboratory applications.
Each jar set includes a grinding jar, jar lid, rubber sealing gasket and different sizes of agate grinding balls, ensuring efficient and reliable grinding performance.
50ml Volume Zirconia Ceramic Lab Grinding Jar Compatible with Retsch PM Series for Industrial Ceramic
Compatible Models
For Retsch grinding jars:
  • 50ml, 80ml, 125ml zirconium oxide, agate, tungsten carbide grinding jars for Retsch planetary ball mill PM100, PM200, PM300, PM400
  • 25ml, 35ml, 50ml zirconia oxide, tungsten carbide jars for Retsch Mix mill MM 500
  • 50ml, 100ml, 250ml and 500ml zirconia oxide and tungsten carbide for Retsch vibratory disc ball mill RS200
For Fritsch grinding jars:
  • 250ml and 500ml zirconia, alumina, agate grinding jar for Fritsch P5, P5/2, P5/4, P6
We have drawings for all the above models of equipment and maintain inventory of all ball mill jars.
Contact us for more information:
WhatsApp/WeChat: +86 19119299397
Standard Dimensions
(Offer OEM & ODM Service)
Jar Volume OD (mm) ID (mm) Total Height (mm)
25ml493251
50ml553867
100ml655075
250ml927488
500ml10084118
1000ml128108150
2.0L158138162
3.0L158138220
Note: Jar size tolerance ±0.1-0.2mm per batch. One set includes: jar + lid + rubber sealing gasket.
Choice of Grinding Jars & Grinding Balls
To prevent excessive abrasion, the hardness of the grinding jars and grinding balls must be higher than that of the material used. Normally, grinding jars and grinding balls of the same material should be chosen.
Material Compatibility Recommendations
Categories of Materials Recommended Mill Jars
Soil and other materials not allowed with any impurityAgate mill jar
Metal & nonmetal materials not allowed with any impurityZirconia mill jar
High hardness materials like diamond, tungsten carbideTungsten carbide mill jar
Strong acid & alkali materials or high temperature applicationsPTFE mill jar
Iron ore materials with lower impurity sensitivity304 Stainless steel mill jar
Pigment or materials with later high-temperature processingNylon mill jar
Aluminum materials like ceramic glazeCorundum mill jar
Electronic materials like lithium batteryPolyurethane mill jar
Easily oxidized materials requiring special atmosphere protectionVacuum mill jar
Mill Jar & Ball Compatibility Matrix
Items Agate Balls Alumina Balls Stainless Steel Balls Zirconia Balls Tungsten Carbide Balls
Agate Mill Jar1
Alumina/Corundum Mill Jar212
Stainless Steel Mill Jar1
Zirconia Mill Jar21
Nylon Mill Jar21
PTFE Mill Jar12
Polyurethane Mill Jar12
Tungsten Carbide Mill Jar21
Key: 1 = Most suitable, 2 = Suitable
Features of Zirconium Oxide Grinding Jar
  • High specific gravity, high efficiency
  • Highly wear resistant to acid and solvents
  • High cost-effective, low wear and long lifetime
  • Highly polished, smooth, easy to clean, low abrasion to equipment
  • High mechanical strength, good toughness, impact resistance, no broken beads
  • Mainly used for lab planetary ball mill machines
