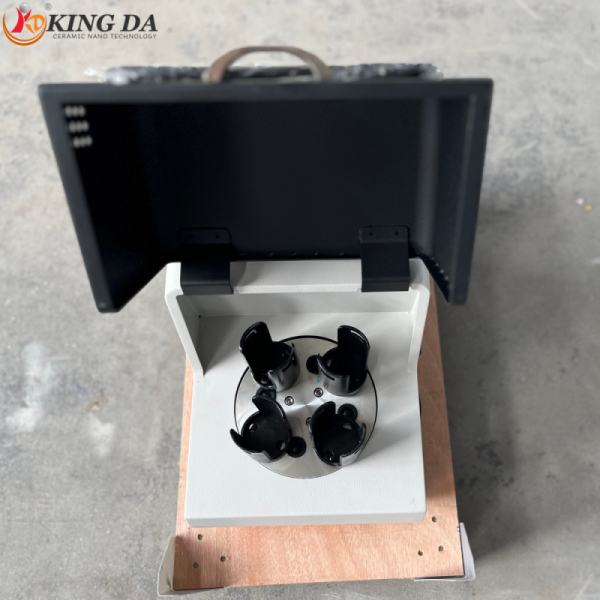

Vertical planetary ball mill is a necessary device for high-tech materials mixing, fine grinding, sample preparation, new product development, and small batch production. The Kingda planetary ball mill features compact volume, high efficiency, low noise, and versatile functionality, making it an ideal equipment for R&D institutions, universities, and enterprise laboratories to obtain samples (each experiment can process four samples simultaneously). It can obtain powder samples under vacuum conditions when equipped with a vacuum ball mill jar.

The planetary ball milling machine features four ball grinding jars installed on a single turntable. When the turntable rotates, the jar axis performs planetary movements, and the balls within the jars grind and mix samples through high-speed motion. This equipment can effectively smash and blend various products of different materials and granularities using either dry or wet methods. The minimum granularity of ground products can reach as small as 0.1 micron (1.0×10-4mm).

Widely applied across multiple industries including Geology, Mining, Metallurgy, Electronics, Construction Materials, Ceramics, Chemical Engineering, Light Industry Medicine, and Environmental Protection.

KINGDA utilizes dust-removing cast iron and a one-piece casting molding process to manufacture the main disk of the planetary ball mill. This advanced manufacturing process significantly extends the equipment's service life compared to the splicing processes used by other manufacturers.

• Drive Mode: Gear drive and belt drive
• Operation Mode: Two or four grinding tanks working together
• Maximum Loading Capacity: 2/3 of the capacity of milling tank
• Feeding Granularity: Soil material ≤10mm, other materials ≤3mm
• Output Granularity: Minimum 0.1μm
• Rotational Speed Ratio (revolution:rotation): 1:2 (0.4L, 2L, 4L); 1:1.5 (12L, 20L)
• Rotation Speed: 0.4L: 0-600 rounds/min; 2L: 0-580 rounds/min; 4L: 0-530 rounds/min; 20L: 0-280 rounds/min
• Speed Regulation Mode: Variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed positive or negative revolving
• Max. Continuous Operating Time (full-load): 72 hours

• Package Type: Carton or plywood case + foam
• Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port
• Delivery Time: Within 15 working days from the date of payment receipt

• We can produce other grinding balls as per your requirements
• We test all goods before delivery
• We respect every customer as our friend and sincerely conduct business and build relationships, regardless of origin
• If you have any questions, please contact us without hesitation - we will reply within 12 hours
