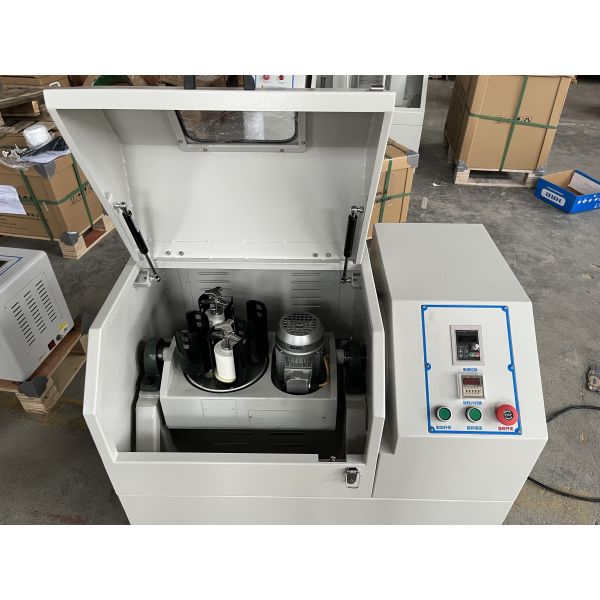

Advanced ceramic laboratory ball mill designed for new materials research with 360° omnidirectional planetary motion technology.

• 360° Omnidirectional Planetary Motion: Continuous multidirectional movement eliminates dead-angle grinding and improves material mixing uniformity and grinding efficiency.
• Prevents Material Sedimentation & Wall Sticking: Ideal for high-viscosity and easily agglomerated materials by reducing settling and adhesion during high-speed grinding.
• Higher Energy Impact & Ultra-Fine Grinding: Multidirectional centrifugal force increases collision frequency, achieving faster particle size reduction down to nano-level fineness.
• More Uniform Particle Size Distribution: Enhanced random movement of grinding media results in better dispersion performance and consistent particle distribution.
• Ideal for Advanced Material Research: Suitable for laboratory sample preparation, nano material grinding, battery materials, ceramics, electronic materials, chemicals, minerals, and high-purity powder processing.
• Durable Structure & Reliable Performance: High-strength planetary transmission system and durable components ensure stable operation and long service life.

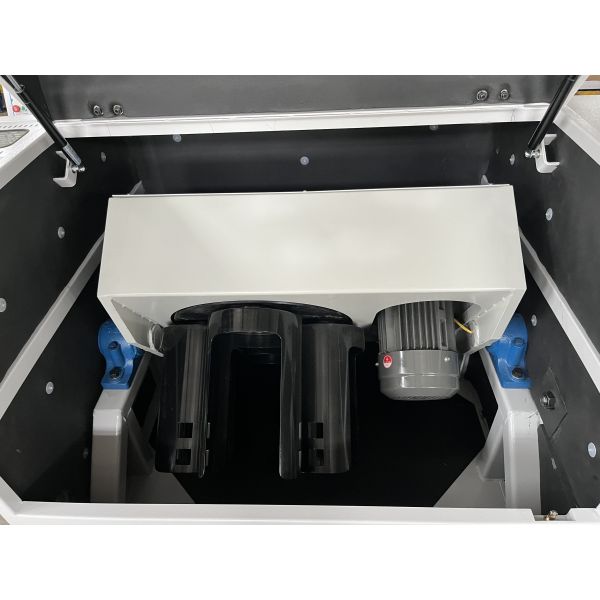

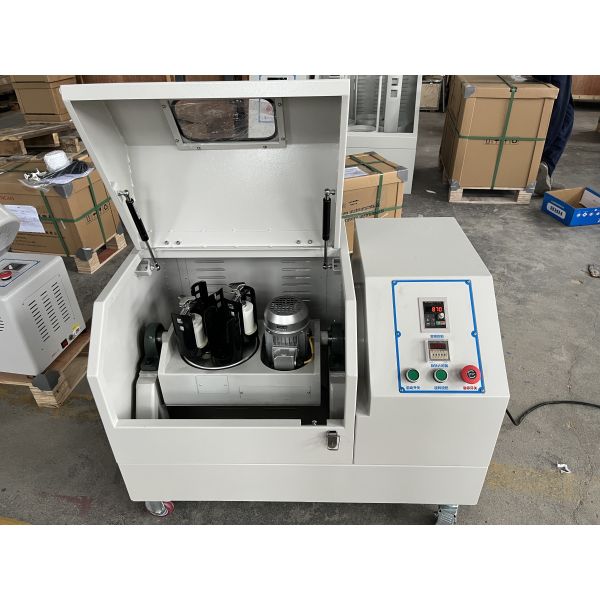

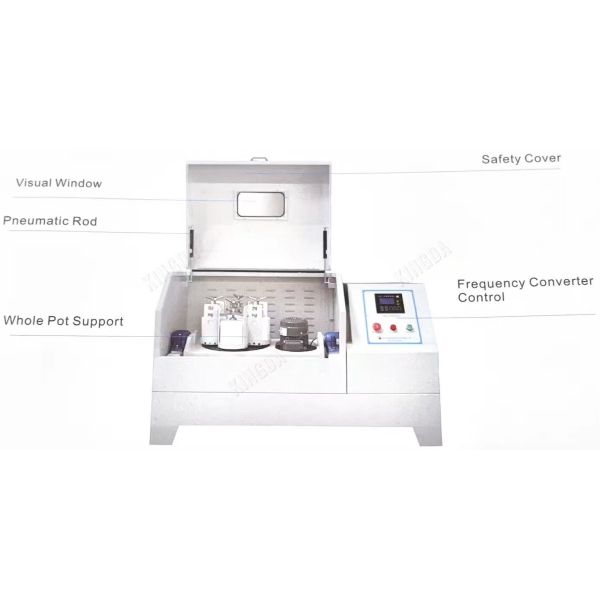

The all-direction planetary ball mill (omnidirectional planetary ball mill) is developed based on the vertical planetary ball mill with an additional planetary disk tilting function. During operation, both the planetary disk and milling jars perform simultaneous planetary motion and 360° multi-dimensional tumbling within a three-dimensional space, enabling full-direction movement of the grinding jars.

This unique motion mode significantly enhances the random movement of grinding media and materials, achieving dead-angle-free grinding and more efficient energy transfer. It effectively improves ultrafine grinding performance and particle size uniformity, while also solving common problems such as material sedimentation and jar wall sticking during milling.

The machine is widely used for laboratory sample preparation, nano powder grinding, ultrafine material processing, battery materials, ceramics, chemicals, and advanced material research applications, delivering higher efficiency compared with conventional vertical planetary ball mills.

Package Type: PE Form + Cartons / Wooden cases; Custom packaging available

Port: Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port

Delivery Time: Within 3-7 working days from payment receipt

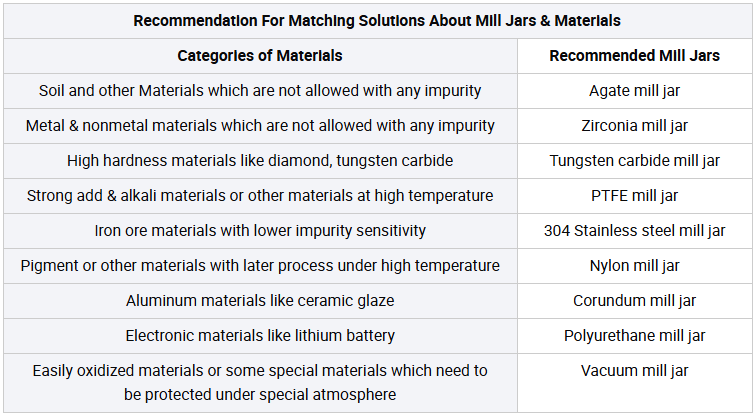

Our available roll mill jars include alumina, zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane, and more.

FOB, CFR, CIF.

Yes, we can provide samples for testing before production. Customers are responsible for courier costs.

Typically 3-15 days after receiving advance payment. Specific delivery time depends on items and order quantity.

T/T 30% deposit, 70% balance against original B/L copy, or 100% L/C at sight. We provide product photos and B/L copy before balance payment.

• Custom grinding balls production available
• Comprehensive pre-delivery testing of all goods
• Customer-focused business relationships
• Prompt response within 2 hours for all inquiries

HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD specializes in manufacturing Grinding Media Balls, Grinding Jars, Zirconium Dioxide, and Zirconia structures.

Our commitment to "Quality Is in the First Position forever" has earned us high reputation and recognition from prestigious institutions including University of Oxford, Loughborough University, Peking University, and Tsinghua University.

We are dedicated to providing high-quality grinding products and exceptional services to customers worldwide, fostering mutual benefit and sustainability through technological excellence.
