Refractory YSZ Ceramic Grinding Media Zirconium Dioxide Grinding Ball
Refractory YSZ Ceramic Grinding Media Zirconium Dioxide Grinding Ball
Refractory YSZ Ceramic Grinding Media Zirconium Dioxide Grinding Ball
Refractory YSZ Ceramic Grinding Media Zirconium Dioxide Grinding Ball
Refractory YSZ Ceramic Grinding Media Zirconium Dioxide Grinding Ball
Refractory YSZ Ceramic Grinding Media Zirconium Dioxide Grinding Ball
Refractory YSZ Ceramic Grinding Media Zirconium Dioxide Grinding Ball
Refractory YSZ Ceramic Grinding Media Zirconium Dioxide Grinding Ball
Specifications
Place of Origin :
Hunan, China
Model Number :
0.1-50MM
Brand Name :
Kingda
Packaging Details :
25KG/drum / 500-1000KG on pallet with shrink wrapped
Supply Ability :
10 Ton / Month
Price :
Negotiable
MOQ :
1 KG
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
3-7 Days
Type :
Ceramic Balls
Application :
Refractory
Material :
Zirconia Ceramic
Color :
White
Shape :
sphere
Density :
6.02g/cm3
Usage :
Grinding,dispersing and polishing
Compress Strength :
>2300 MPa
Certificate :
SGS
Size :
0.3mm,0.4-0.5mm,0.4-0.6mm
Raw material :
95% ZrO2+5%Y2O3
Feature :
High Wear-resistance,low wear loss
product name :
0.3mm YSZ zirconium dioxide grinding ball for ceramic digital inking
Port :
Guangzhou,shenzhen,shanghai
Description
0.3mm and 0.4-0.6mm YSZ zirconium dioxide grinding ball
for ceramic digital inking

Chemical Composition:

≥ ZrO2: 94.5%

≥ Y2O3: 5.0%
Specific Gravity:

≥ 6.02g/cm3

Bulk Gravity:

3.7g/cm3

Flexibility factor:

8.0Mpa.m1/2

Hardness(Mohs)

9

Crushing strength:

150kgf(2mm)

Wear value:

< 0.01%
Sphere size (mm) : Φ0.08, Φ0.1, Φ0.2, Φ0.3, Φ0.4, Φ0.5, Φ0.6, Φ0.8, Φ1, Φ1.5, Φ2, Φ2.5, Φ3,Φ4, Φ5, Φ6, Φ7, Φ8, Φ10, Φ12, Φ15, Φ20, Φ25, Φ30, Φ40, Φ50;

Cylinder size (mm) : 7*7, 10*10, 12.7*12.7, 15*15
Refractory YSZ Ceramic Grinding Media Zirconium Dioxide Grinding Ball

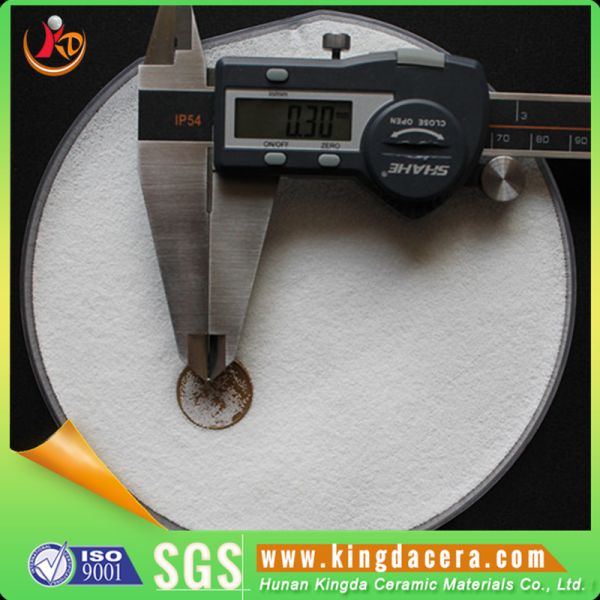

0.3mm Yttrium stabilized zirconia ball under telescope 40times

Features:

u High density, high grinding efficiency, high hardness;

u Compact Tetragonal Zirconia Polycrystalline (Y-TZP) to give the beads outstanding anti- corrosion and wear resistance;

u Always keep the smooth surface and the good roundness.

Kingda TZP zirconium grinding beads have uniform microstructure from inside to outside.

We have unique ways in control product microstructure crystalling phase .Scanning electron microscopy showed,

beads microstructure is almost the same as that of Japan TOSOH company similar product.

Application Fields:

FAQ

1.What's product your company supply?

A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate ball, ball mill grinding jar, tungsten carbide ball,zirconium powder,ceramic structual elements etc.

2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.

3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .

4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.

5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.

6. Q: What is your payment term?
A: T/T 30%-70% Deposit, balance against copy of B/L.

L/C at sight,Western Union, paypal,Visa,etc.
