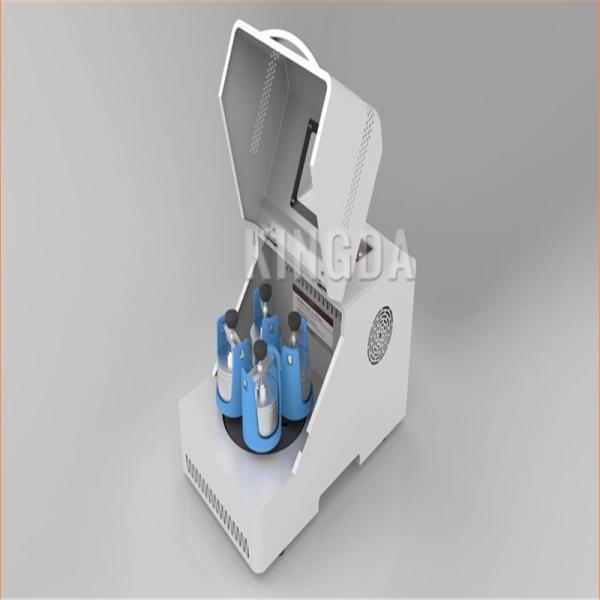

0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
Specifications
Place of Origin :
Hunan, China
Brand Name :
Kingda
Packaging Details :
PE Foam + Cartons / Wooden cases
Price :
Negotiable
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 Set / Month
Delivery Time :
3-7 Days
Certification :
CE ISO
Output (kg/h) :
1 - 100 kg/h
Feeding Size (mm) :
1 - 100 mm
Output Size (mesh) :
45 - 12500 mesh
Range of Spindle Speed(r.p.m) :
420 - 512 r.p.m
Application :
Medicine Processing, Chemicals Processing
Product Type :
machine
Voltage :
220V
Weight (KG) :
92 KG
Product name :
Planetary Ball Mill
Applicable Industries: :
Lab Research
Description
Product Description
Full Automatic 0.2L Desktop Laboratory 220 V Planetary Ball Mills Lab Use
Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which
features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples.
Application Field
The product is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics,
Model No. XQM-0.4A
Max volume of each matched Jar 100ml
Voltage 110V/220V - 50Hz
Machine Size 500*300*340mm
Machine Weight 29 Kg without mill jar
Work mode 2 or 4 jars working together
Mill mode Dry / wet milling
Speed Frequency Adjusting
Drive Mode Gear drive
Rotational Speed 90-870 r/min, adjusting
revolution: rotation 1:2.14
Material Capacity Material + mill balls < 2/3 volume

Input Granularity Size

< 10mm for soft material,

< 3mm for hard material
Output Granularity Size Minimum 0.1μm

Field of application

Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light

Industry Medicine, Environmental Protection etc.

Feed material

Soft, hard, brittle, fibrous, cellulose, herb, glass, soil,

ore, pharmacy, chemical, fluorescent, pigment etc.

Type of grinding jars

Stainless steel, zirconia, alumina, nylon, PU, tungsten,

PTFE etc., vacuum jars are available as well.

Type of grinding medium

Stainless steel balls, zirconia balls, alumina balls, PU

balls, steel carbon balls, tungsten balls, etc.
Max. continuous operating time (full-load) 72 hours
Interval operation With direction reversal
Certificate ISO 9001. CE certificate

Product Paramenters
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
Packaging and delivery
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
Company Profile
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill
0.2L Planetary Ball Mill 220V Full Automatic Desktop lab bead mill

Main advantage

1.It is one of biggest manufacture to make ceramic grinding media ball in China.

2.SGS, ROHS certificate,Strict quality control system ISO 9001.

3.Professional,Sincerity,Concentration,Honesty,Constant striving for improvement,Mutual Glory.

4.High Quality raw material imported from Australian.

5. Quick-delivery, safe packing
FAQ
1.Q:What's product your company supply?
A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate ball,tungstern carbide ball, ball mill grinding jar,tungsten carbide ball, zirconium powder,ceramic structual elements etc.

2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.

3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .

4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.

5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.

6. Q: What is your payment term?
A: T/T 30%-70% Deposit, balance against copy of B/L.
L/C at sight,Western Union, paypal,Visa,etc
