CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20
CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20
CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20
CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20
CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20
CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20
CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20
CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20
Specifications
Brand Name :
GQZ or Other famous brand
Model Number :
CKA60X24-20
Certifiion :
ISO9001,ROHS
MOQ :
5pcs
Supply Ability :
10000/month
Packaging Details :
Plastic Bag+cox+carton
Certification :
ISO9001:2015
Product name :
Automotive Needle Roller Bearings
Material :
Chrome Steel
Appliion :
Automotive
Retainer :
Stainless steel/Chrome
Inner diameter :
20mm
Outside diameter :
60mm
Width :
24mm
Price :
$10-$15/pcs
Description
CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20

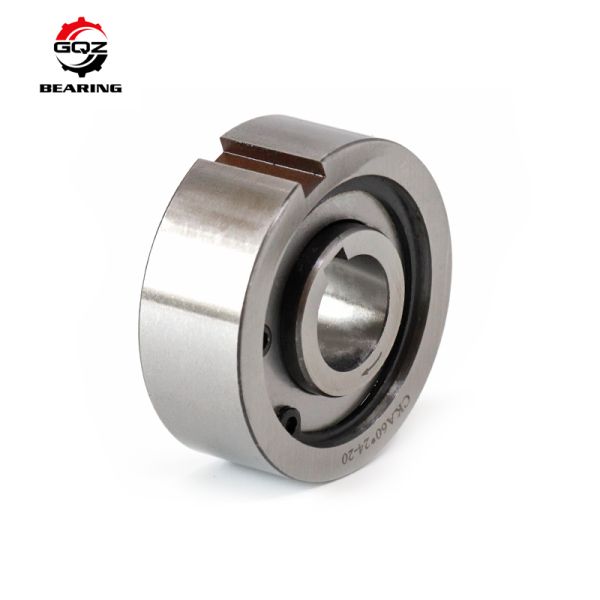

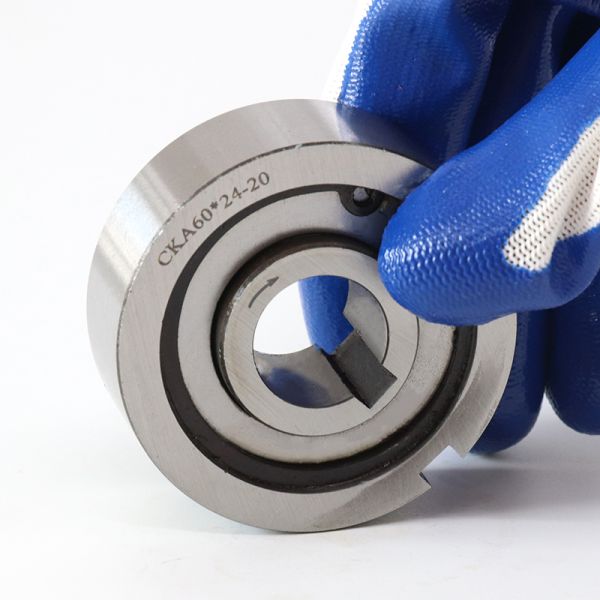

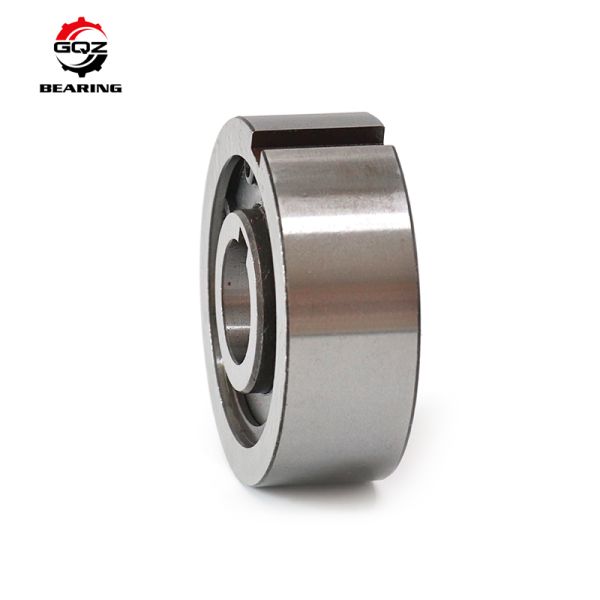

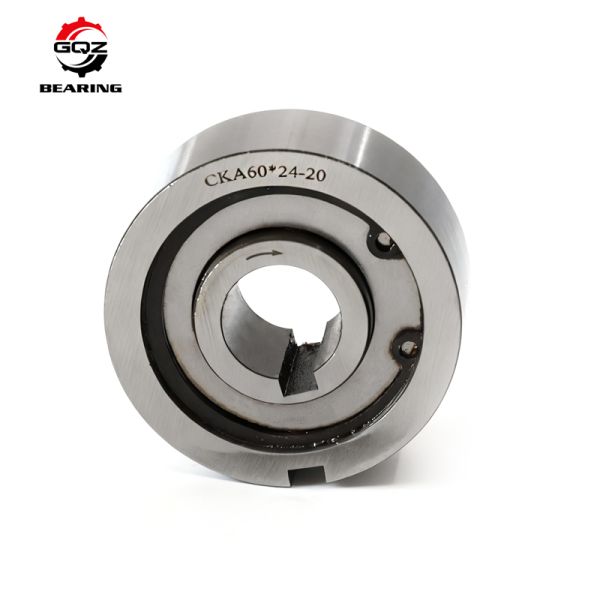

CKA60X24-20 is a one way bearing featuring a specialized design that enables unidirectional torque transmission. It is engineered to withstand radial loads while providing reliable one-way rotation, making it suitable for appliions where directional motion control is critical. The bearing’s structure ensures compact installation and efficient power transmission, with high dimensional accuracy and surface finish for stable operation even under dynamic load conditions. It is typically supplied with standard internal clearance and can be lubried as per operational requirements, offering flexibility across diverse working environments.

Sizes:

20mm ID * 60mm OD * 24mm Width

Interchange:

CKA60X24-20 (cross-brand equivalents such as SKF CKA60X24-20, NSK CKA60X24-20, Timken CKA60X24-20), and one way bearings with identical "20mm ID + 60mm OD + 24mm width" specifiions

Appliions:

Automation Equipment, Agricultural Machinery, Engineering Machinery, Conveyors, and other scenarios where unidirectional motion control and radial load capacity are essential.

Product Description
Parameter Item Details
Product Model CKA60X24-20 One Way Bearing
Inner Diameter (ID) 20mm
Outer Diameter (OD) 60mm
Width 24mm
Type One Way Bearing
Material Chrome Steel

CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20

CKA60X24-20 One Way Overrunning Sprag Freewheel Cam Clutch Bearing CKA 60X24-20

Beside,we also supply following bearings:
Model ID(mm) OD(mm) W(mm) Applicable Car No. OE
DBF68933 50.205 58.23 27 Peugeot 405 5131.48 513148
DB47260EE 46.95 53 24.5 Peugeot 306 5132.49 513249
NE70172 50 58 25 Peugeot 207 5131.96,513196
5035.05 60 85 3.6 Peugeot 204/304/404 AK6085 64183 M259.03 50
NE68934 50 58 25 Peugeot 405 5131.49 513149
NE70214 47 53.12 26 Peugeot 206 5131.A6 5131.95
DB70911 50.205 58.23 24.5 Peugeot 207 5132.66 513266
DB47937EE 42 49 22 Peugeot 306 5131.45 513145
5035.08 74 92 4 Peugeot 204/304/404 AX20697 M259.02 503508 0355085
280608 　 　 　 Peugeot 404/504/505 8062082,280608
3172222 18 28 16 Peugeot 404/504/505 231722,3172222
DBF70697 47 53.12 24.5 Peugeot 106 5132.55,513255,DS759.09
DB69899E 47 53.12 21.5 Peugeot 106 5131.64,513164,DS759.03
DB69902 47 53.12 18.4 Peugeot 106 5132.56,5179.14
DB4716 47 55 16 Peugeot 404/504/505/604 DB4716,281108,8112082
DB4020 40 48 20 Peugeot 404/504/604 DB4020,3582122,235812
DB70216 47 53.12 19.5 Peugeot 206 5132.72,5132.65,DS759.09
965900 34 50.17 197 Peugeot 405 830003930,965900
F-110731 24.5 47.3 28 Fiat F110731,F122899,710002400
F-552400 24.5 40 87.6 Fiat 8200035339,8200039656
F-123433.09 24.5 40 87.6 Fiat 414013010,F-123433.09
7625542 22.9 47.3 28 Fiat 46307336,71738383
7700860455 24.5 48.8 73 Fiat 7700860455,77010355379
7120389100 25.8 47.3 28 Fiat F-89628.1,F-89628.6
AP40016 1 2 3 Fiat AP40016S01
F-110731 24.5 47.3 28 Fiat F-110731,46307337,F-122899
F-120838.5 28 47.3 28 Fiat 7700743521
F-123471.03 24.5 40 28.3 Fiat F-123471.2,712129010
NE47170 25.8 47.3 28 Fiat 7700769075,F-89628.1,F-89
F-123471.3 24.5 40 28.3 8200142677,8200055372
F-89647.3 24.5 47 87.5 414000810,30862047
NA4900RS 10 14 22 Car NA4900RS NA4900-2RS
NKI42/20 42 57 20 Car NKI42/20 NKI45/25 NKI45/3
F-239190.04 15 21 23.5 Car 06B105313D,06B105313C
DGX264 22 36.15 11 Steering Wheel DGX244 DGX264 DG199
2557182 25.4 38.1 25.4 Car 746697M1,BR162416
2557181 31.75 44.45 25.4 Car BR202816,746696M1
FC67148.5 41.2 64.3 21 Car DB50185,VKBA6681
F-91943 50 58 25 Benz 　
F-85265 15 21 15 Car FC35354,HK152115RS
308-203 35 62 19 Car 520228,F-43710.1,F19066
DG343TN 33 45 21.3 Steering Wheel DG1410TN DG146 DG343TN
DG138TN 22 37 19 Steering Wheel DG138TN DG138
NB102 11 17.5 15.6 Car F-56769,140115,717000200
YC1R-7600-AA 15 28 26 Car F-214930 410011710
HMK5045 50 62 45 Car TA5045
HMK5030 50 62 30 CAMC TA5030
81934040065 52 60.5 76.7 Car F-232759.3,81934040065
NKI20/16 20 32 16 Car 　
BK0509 5 9 9 Car 　
HK0509TN 5 9 9 Car 　
B-2420 38.1 47.62 31.75 Car 　
B-3016 47.62 57.15 25.4 Car 　
NB109 17 23.8 31.4 Car 　
1H0419517A 1 2 3 Volkswagen Golf 　
BH-68 9.52 15.88 12.7 Car 　
B-1212 19.05 25.4 19.05 Car 　
