KM-24 KM24 Lock Nut With Metric Thread For Locking By Lock Washer Bore Diameter 120mm
KM-24 KM24 Lock Nut With Metric Thread For Locking By Lock Washer Bore Diameter 120mm
KM-24 KM24 Lock Nut With Metric Thread For Locking By Lock Washer Bore Diameter 120mm
KM-24 KM24 Lock Nut With Metric Thread For Locking By Lock Washer Bore Diameter 120mm
KM-24 KM24 Lock Nut With Metric Thread For Locking By Lock Washer Bore Diameter 120mm
KM-24 KM24 Lock Nut With Metric Thread For Locking By Lock Washer Bore Diameter 120mm
KM-24 KM24 Lock Nut With Metric Thread For Locking By Lock Washer Bore Diameter 120mm
KM-24 KM24 Lock Nut With Metric Thread For Locking By Lock Washer Bore Diameter 120mm
Specifications
Brand Name :
GQZ or Other famous brand
Model Number :
KM24 KM-24
Certification :
ISO9001,ROHS
Place of Origin :
China
MOQ :
5pcs
Supply Ability :
10000/month
Packaging Details :
Plastic Bag+cox+carton
Product Type :
Expansion Coupling Sleeve
Application :
Automotive.tractor.construction Machinery.rolling Mill
Bore diameter :
120mm
Outside diameter :
155mm
Width :
20mm
Thread designation :
M120x2
Product net weight :
1.16kg
Material, bearing :
Bearing steel
Description

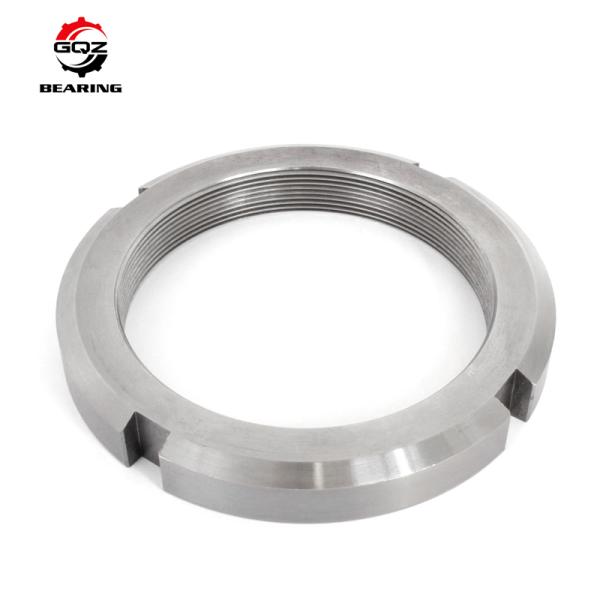

KM-24 KM24 Lock Nut with Metric Thread for Locking by Lock Washer

KM and KML lock nuts are used to locate bearings onto a shaft. They have metric threads and four equally spaced slots located around their circumference to accommodate a spanner. They should be locked by a lock washer to prevent unintentional loosening. KM and KML lock nuts can be reused, provided they are not damaged.

Product Description
Applicable IndustriesAutomotive.tractor.construction Machinery.rolling Mill
Place of OriginChina
TypeLock washer
Model NumberKM-24,KM24
Brand NameGQZ or OEM
Seals TypeOpen
MaterialChrome Steel
Outside diameter155mm
Bore size120mm
FeatureLong Life
CertificateISO9001:2008
VibrationZ1V1 Z2V2 Z3V3
PrecisionP0,P5,P6
ServiceOEM Service
StockRich
Lock Nut Sleeve Main Advantages
  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new lock washer
  • Available for thread M 10x0.75 to M 200x3 (sizes 0 to 40)
KM-24 KM24 Lock Nut With Metric Thread For Locking By Lock Washer Bore Diameter 120mm
Beside,we also supply following bearings:
Unit No.ThreadDimentions(mm)Lock washerWeight
Gdd1d2BbhW.t(kg)
KM06M30*1.5303845752MB060.038
KM07M35*1.5354450852MB070.058
KM08M40*1.5405058962.5MB080.078
KM09M45*1.54556651062.5MB090.11
KM10M50*1.55061701162.5MB100.14
KM11M55*25567751173MB110.15
KM12M60*26073801173MB120.16
KM13M65*26579851273MB130.19
KM14M70*27085921283.5MB140.22
KM15M75*27590981383.5MB150.27
KM16M80*280951051583.5MB160.36
KM17M85*2851021101683.5MB170.42
KM18M90*29010812016104MB180.51
KM19M95*29511312517104MB190.58
KM20M100*210012013018104MB200.68
KM21M105*210512614018125MB210.81
KM22M110*211013314519125MB220.89
Company Information
FAQ

Can adapter sleeves withstand harsh environmental conditions?

Harsh environments, characterized by moisture, dust, and extreme temperatures, pose significant challenges. Corrosion Resistance: Exposure to moisture can lead to corrosion, affecting the sleeve's performance. Solution: For operations in harsh environments, select adapter sleeves made from corrosion-resistant materials or consider protective coatings to enhance the durability of adapter sleeves.

How should maintenance routines be structured for systems utilizing adapter sleeves?

Effective maintenance is crucial for maximizing lifespan and performance. Inspection Schedules: Establishing routine inspection schedules helps detect potential issues early. Lubrication Needs: Proper lubrication ensures smooth operation and reduces wear. Solution: To maintain systems with adapter sleeves effectively: Implement a comprehensive maintenance schedule including cleaning, inspection, and re-lubrication of components around the adapter sleeve. Keep detailed records of all maintenance activities to track the condition and performance of adapter sleeves over time.
