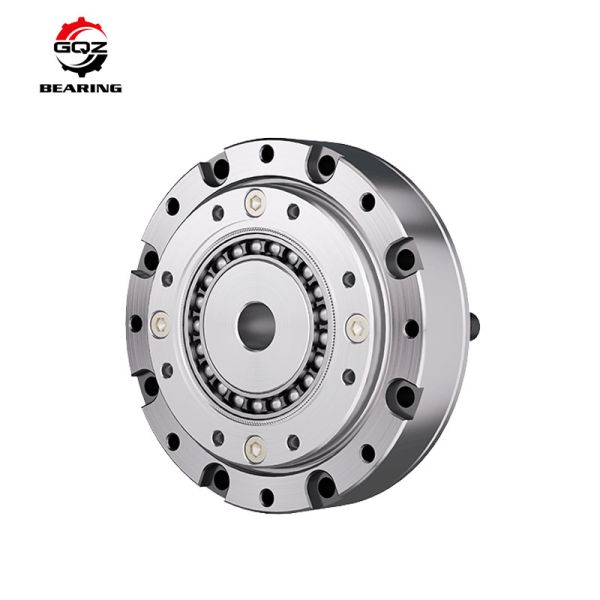

FSD Series Harmonic Drive Bearing with Zero Backlash High Rigidity and P4A Precision for Robotics and Aerospace
FSD Series Harmonic Drive Bearing with Zero Backlash High Rigidity and P4A Precision for Robotics and Aerospace
FSD Series Harmonic Drive Bearing with Zero Backlash High Rigidity and P4A Precision for Robotics and Aerospace
FSD Series Harmonic Drive Bearing with Zero Backlash High Rigidity and P4A Precision for Robotics and Aerospace
Specifications
Brand Name :
GQZ or OEM
Model Number :
FSD Series
Place of Origin :
China
MOQ :
1
Price :
USD 50/ PC
Payment Terms :
T/T,Western Union
Supply Ability :
1000PCS/WEEK
Certification :
ISO9001
Packaging Details :
Export packaging
Seal :
sealed
Precision :
P4
Lubrication Method :
Grease
Inner Diameter :
11mm
Rolling :
Ball
Outerdiameter :
55mm
Package :
cartons, plywood case
Application :
Industrial Robot Service Robots Printed Circuit Manufacturing Metal Machine Tools Equipment Wood, Light Metal, Plastic Machine Tools
Weight :
0.2KG
Number Of Row :
Single Row
Precsion Level :
High precision
Description
FSD Series Harmonic Drive Bearing for Reducer
The FSD-14 (FSD 14) Crossed Roller Bearing delivers zero backlash and high rigidity performance. This miniaturized product was developed to meet market demands for compact solutions. Compared to the FSS series with equivalent torque capacity, the FSD series offers more compact dimensions and thinner walls in a smaller overall size.
Key Features
  • Zero backlash operation
  • High rigidity construction
  • Compact, miniaturized design
  • Thin-walled smaller size
  • Crossed roller bearing configuration
  • Specifically designed for reducer applications
Technical Specifications
Model Speed Ratio Rated Torque at 2000 rpm Permissible Peak Torque Max Permissible Average Load Torque Instantaneous Max Permissible Torque Permissible Max Input Speed Permissible Average Input Speed Backlash Weight Design Life


N·m | kgf·m N·m | kgf·m N·m | kgf·m N·m | kgf·m r/min r/min Arc Sec Kg Hour
14 50 3.7 | 0.38 12 | 1.2 4.8 | 0.49 24 | 2.4 8500 3500 ≤20 0.37 9000
80 5.4 | 0.55 16 | 1.6 7.7 | 0.79 35 | 3.6 10000
100 5.4 | 0.55 19 | 1.9 7.7 | 0.79 35 | 3.6 10000
17 50 11 | 1.1 23 | 2.3 18 | 1.8 48 | 4.9 7300 3500 ≤20 0.46 9000
80 15 | 1.5 29 | 3 19 | 1.9 61 | 6.2 10000
100 16 | 1.6 37 | 3.8 27 | 2.8 71 | 7.2 10000
20 50 17 | 1.7 39 | 4 24 | 2.4 69 | 7 6500 3500 ≤20 0.65 9000
80 24 | 2.4 51 | 5.2 33 | 3.4 89 | 9.1 10000
100 28 | 2.9 57 | 5.8 34 | 3.5 95 | 9.7 10000
25 50 27 | 2.8 69 | 7 38 | 3.9 127 | 13 5600 3500 ≤20 1.2 9000
80 44 | 4.5 96 | 9.8 60 | 6.1 179 | 18 10000
100 47 | 4.8 110 | 11 75 | 7.6 184 | 19 10000
32 50 53 | 5.4 151 | 15 75 | 7.6 268 | 27 4800 3500 ≤20 2.4 9000
80 83 | 8.5 213 | 22 117 | 12 398 | 41 10000
100 96 | 9.8 233 | 24 151 | 15 420 | 43 10000
