GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm
GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm
GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm
GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm
GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm
GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm
GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm
GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm
Specifications
Housing Type :
Split Plummer Block
MOQ :
1 Piece
Net Weight :
1.12 kg
Price :
$20-$50
Brand Name :
GQZ
Certifiion :
ISO 9001
Shaft Diameter :
30 mm
Model Number :
LES 206 2F
Packaging Details :
Packed in carton firstly, then reinforced with wooden case for outer packing
Lubriion :
Grease / Oil
Place of Origin :
China
Payment Terms :
T/T,,PayPal
Delivery Time :
3-7 working days after payment
Dimensions :
30x165x81.4mm
Supply Ability :
3000 Pieces per Month
Housing Material :
Cast Iron
Product Name :
LES 206 2F
Description

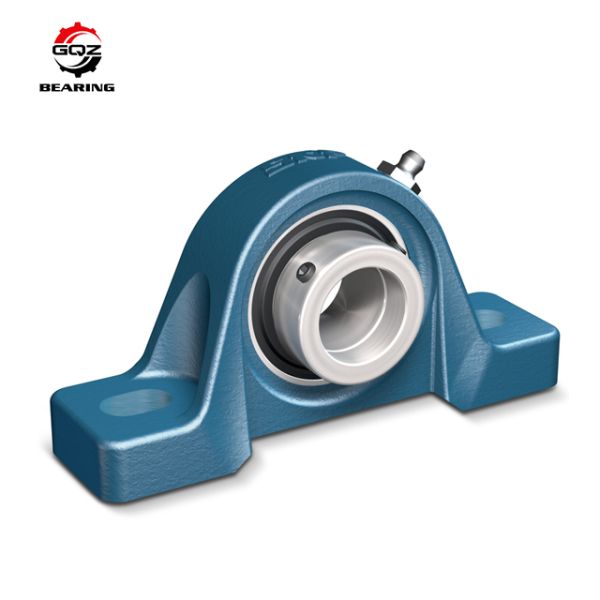

LES 206 2F Heavy Duty Plummer Block Bearing Housing 30mm Shaft Diameter

The LES 206 2F is a high-performance split plummer block housing designed for industrial bearing appliions. It accommodates spherical roller bearings and self-aligning ball bearings with a 30mm shaft diameter, providing excellent support and alignment for rotating shafts in demanding environments.

Product Features
  • Split housing design for easy bearing installation and maintenance
  • Made of high-strength cast iron for exceptional durability and load capacity
  • Precision machined bore ensures accurate bearing seating and alignment
  • Suitable for both oil and grease lubriion systems
  • Ribbed housing design enhances heat dissipation and structural rigidity
  • Compatible with standard spherical roller bearings and adapter sleeves

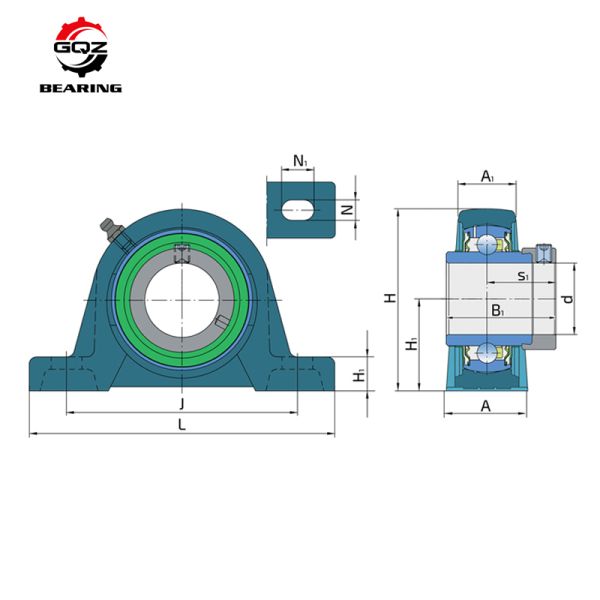

Technical Specifiions
Parameter Value
Model LES 206 2F
Shaft Diameter (d) 30 mm
Overall Length (L) 165 mm
Width (A) 42 mm
Height (H) 81.4 mm
Center Height (H₁) 42.9 mm
Base Height (H₂) 16 mm
Mounting Span Min (Jmin) 111 mm
Mounting Span Max (Jmax) 125 mm
Bolt Hole Width (N) 17 mm
Bolt Hole Length (N₁) 24 mm
Seal Width (S₁) 22.2
Net Weight 1.12 kg
Material Cast Iron
Housing Type Split Plummer Block
Appliions
  • Conveyor systems and material handling equipment
  • Fans, blowers, and air handling units
  • Crushers and mining machinery
  • Pumps and compressors
  • Industrial gearboxes and transmission systems
Why Choose GQZ
  • 25+ years experience in industrial bearing manufacturing
  • Exported to 50+ countries worldwide
  • Rich experience in OEM & custom projects
  • Strict quality inspection before shipment
  • Fast response within 24 hours
  • Stable supply for long-term cooperation

GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm

GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm

GQZ Cast Iron Housing LES 206 2F 30mm Shaft SN Plummer Block Bearing 30x165x81.4mm

FAQ

Q1: Do you support custom or non-standard dimensions?

Yes, we offer OEM service and can produce housings according to your drawings or samples. Contact us with your specifiions for a custom quote.

Q2: What is your MOQ and delivery time?

Our minimum order quantity is 1 piece for standard models. Delivery time is 3-7 working days for stock items, and 15-30 days for production orders depending on quantity.

Q3: How do you ensure quality?

All housings undergo dimensional inspection, material testing, and surface finish checks before shipment. We are ISO 9001 certified and provide material certifies upon request.
