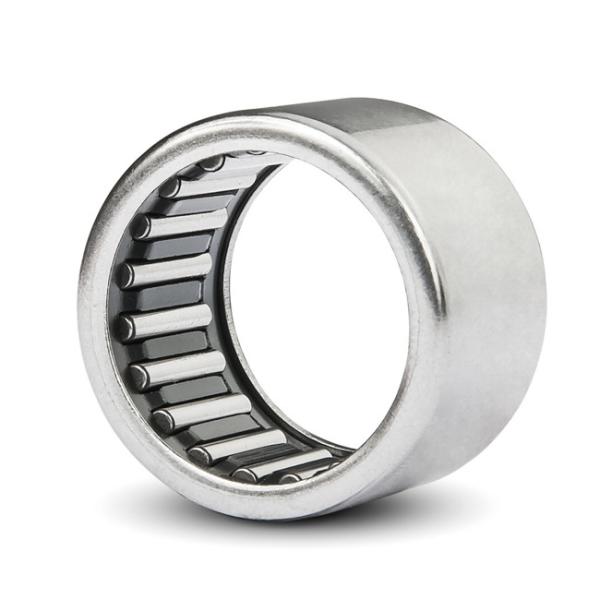

HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts
HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts
HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts
HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts
HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts
HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts
HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts
HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts
Specifications
Model Number :
HK4020
Material :
GCr15 Chrome Bearing Steel
Price :
USD 0.1-0.6
Seal Type :
Open
Payment Terms :
T/T
Packaging Details :
in individual packing box
Width（B） :
20mm
Certification :
ISO9001:2015
Type :
Needle Roller Bearing
Place of Origin :
China
Bearing Model :
HK4020
Brand Name :
GQZ /OEM
Number of row :
Single Row
Certifiion :
ISO9001:2015
Supply Ability :
100000 Sets per month
Inner diameter（d） :
40mm
MOQ :
1 PCS
Outer diameter（D） :
47mm
Delivery Time :
3-5 working days
Description
HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts

HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts

Product Overview
  • HK4020 is an open‑end drawn cup needle roller bearing with dimensions 40×47×20mm. Without an inner ring, it adopts thin stamped steel cup and dense needle‑roller assembly. Made of GCr15 chrome steel, this compact‑section bearing delivers outstanding radial load capacity and high rigidity. Its open‑end design enables convenient lubrication, perfectly suited for compact‑structure machinery with limited installation space.

*Contact GQZ now for quick quotation and bearing samples.

Key Specifiions
Item Specification
Model HK4020
Bearing Type Single‑row Drawn Cup Needle Roller Bearing Open‑end Without Inner Ring
Fw (Bore diameter under rollers) 40 mm
Outer Diameter (D) 47 mm
Width (C) 20 mm
Basic Dynamic Load(Cr) 24.2 KN
Basic Static Load(C0r) 53 KN
Weight 0.052 kg
Internal Clearance CN Normal Clearance
Seal Type Open‑end No Seal
Material GCr15 Chrome Steel
Precision Rating P0 / P6
Limiting Speed(Grease) 6300 r/min
Limiting Speed(Oil) 7000 r/min
Cage Material Sheet Steel
Main Features
  • Ultra‑thin cross‑section saves valuable installation space for compact equipment
  • High radial load‑carrying capacity and high structural rigidity under heavy load
  • Open‑end structure supports easy grease or oil lubrication and maintenance
  • No inner ring, the shaft surface can serve directly as the inner raceway
  • Low‑friction needle‑roller assembly ensures smooth stable rotation
  • Heat‑treated drawn‑cup outer shell offers good wear‑resistance and long service life
Typical Appliions
  • Hydraulic cylinders and hydraulic power units
  • Automotive transmission and chassis components
  • Power tools and small high‑speed rotary equipment
  • Construction machinery gearbox assemblies
  • Agricultural equipment and conveyor transmission parts
  • General‑purpose compact industrial machinery

*Send your requirements, GQZ provides stock bearings & OEM service.

Why Choose GQZ Bearing
  • 30 years professional bearing industry experience
  • ISO certified strict quality inspection
  • Flexible OEM & private label customization
  • 3-5 days fast delivery for stocked bearings
  • Full bearing series, universal interchangeable size
  • Factory direct price & reliable after-sales service

HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts

HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts

HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts

HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts

HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts

HK4020 Needle Roller Bearing 40×47×20mm Drawn Cup For Hydraulic Cylinders Power Tools Automotive Parts

FAQ

Q1: What does HK4020 open‑end mean?

A1: Both ends of this drawn‑cup needle bearing are open without bottom closure.

Q2: Does HK4020 come with an inner ring?

A2: No, it has no inner ring, the matched shaft needs sufficient hardness and finish.

Q3: What load can HK4020 mainly bear?

A3: It is designed to carry heavy radial loads, it can hardly take axial loads.

Q4: What is the difference between HK4020 and BK4020?

A4: HK4020 is open‑end, BK4020 has one closed‑end bottom.

*Cooperate with GQZ for high‑quality bearings and competitive factory prices.
