GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm
GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm
GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm
GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm
GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm
GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm
Specifications
Shaft Diameter :
45 mm
Certifiion :
ISO 9001
Lubriion :
Grease / Oil
Seal Type :
Extended Dual-Lip
Supply Ability :
3000 Pieces per Month
Housing Type :
Split Plummer Block
Packaging Details :
Packed in carton firstly, then reinforced with wooden case for outer packing
Net Weight :
2.34 kg
Brand Name :
GQZ
Place of Origin :
China
Payment Terms :
T/T,,PayPal
Model Number :
UYS 209 2S
MOQ :
1 Piece
Product Name :
UYS 209 2S
Price :
USD 25-50 / Piece
Delivery Time :
3-7 working days after payment
Dimensions :
45x190x107.0mm
Housing Material :
Cast Iron
Description
GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm

The UYS209-2S is a high-performance split plummer block housing equipped with extended dual-lip seal for industrial bearing appliions. It accommodates spherical roller bearings with a 45mm shaft diameter, providing excellent support and alignment for rotating shafts in demanding environments.

Product Features
  • Split housing design for easy bearing installation and maintenance
  • Made of high-strength cast iron for exceptional durability and load capacity
  • Precision machined bore ensures accurate bearing seating and alignment
  • Suitable for both oil and grease lubriion systems
  • Ribbed housing design enhances heat dissipation and structural rigidity
  • Compatible with standard spherical roller bearings and adapter sleeves
Technical Specifiions

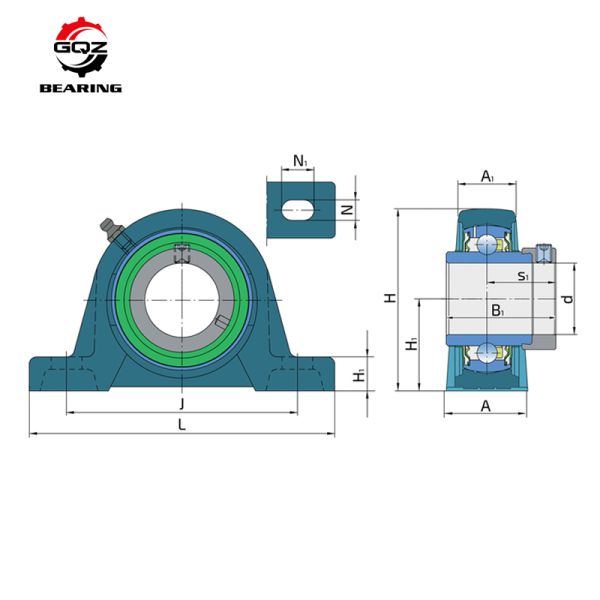

Parameter Value
Model UYS 209 2S
Shaft Diameter (d) 45 mm
Overall Length (L) 190 mm
Width (A) 52 mm
Height (H) 107 mm
Center Height (H₁) 54 mm
Base Height (H₂) 20 mm
Mounting Span Min (Jmin) 136 mm
Mounting Span Max (Jmax) 151 mm
Bolt Hole Width (N) 17 mm
Bolt Hole Length (N₁) 23.5 mm
Seal Width (S₁) 25.8
Net Weight 2.23 kg
Material Cast Iron
Housing Type Split Plummer Block
Appliions
  • Conveyor systems and material handling equipment
  • Fans, blowers, and air handling units
  • Crushers and mining machinery
  • Pumps and compressors
  • Industrial gearboxes and transmission systems
Why Choose GQZ
  • 25+ years experience in industrial bearing manufacturing
  • Exported to 50+ countries worldwide
  • Rich experience in OEM & custom projects
  • Strict quality inspection before shipment
  • Fast response within 24 hours
  • Stable supply for long-term cooperation

GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm

GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm

GQZ UYS209-2S Split Plummer Block Housing 45mm Shaft Cast Iron Split Housing Unit 45x190x107.0mm

FAQ

Q1: Do you support custom or non-standard dimensions?

Yes, we offer OEM service and can produce housings according to your drawings or samples. Contact us with your specifiions for a custom quote.

Q2: What is your MOQ and delivery time?

Our minimum order quantity is 1 piece for standard models. Delivery time is 3-7 working days for stock items, and 15-30 days for production orders depending on quantity.

Q3: How do you ensure quality?

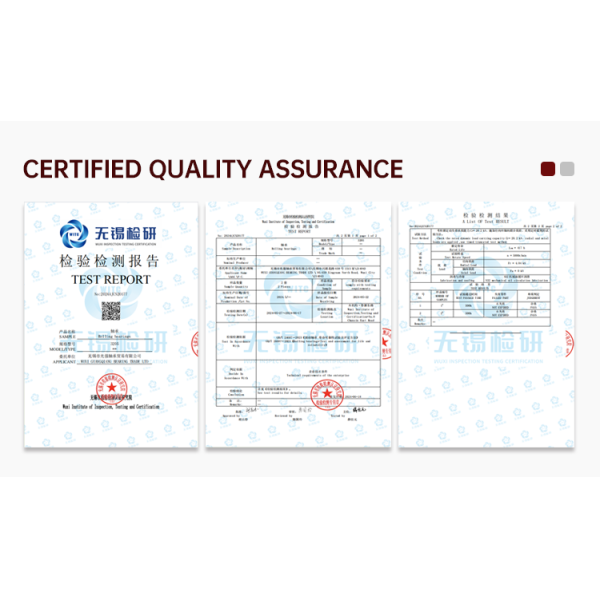

All housings undergo dimensional inspection, material testing, and surface finish checks before shipment. We are ISO 9001 certified and provide material certifies upon request.
