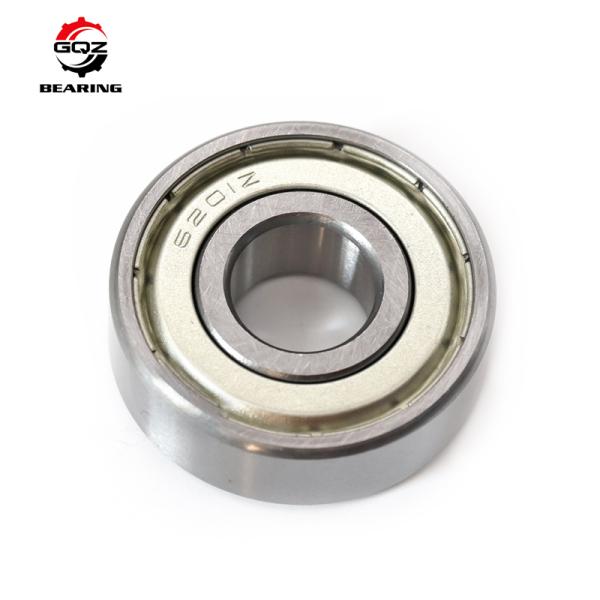

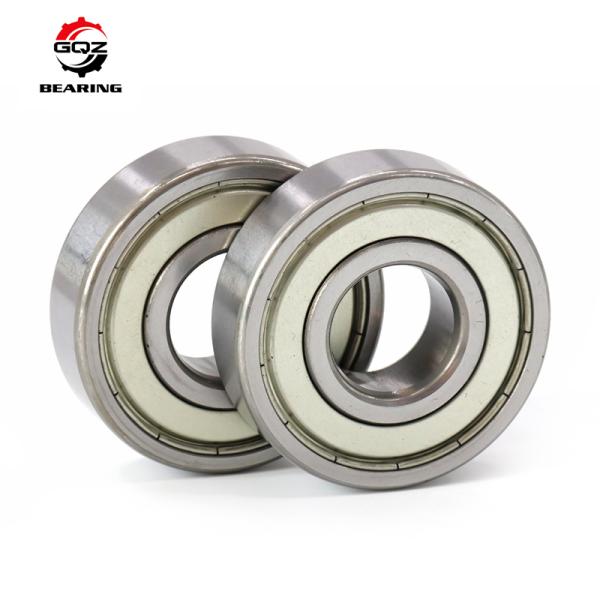

62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance
Specifications
Model Number :
62203-2ZRC3
Inner diameter（d） :
17mm
Payment Terms :
T/T,,
Material :
GCr15 Chrome Bearing Steel
Supply Ability :
100000 Sets per month
Seals type :
Metal Shield (2ZR)
MOQ :
1 PCS
Delivery Time :
3-5 working days
Width（B） :
16mm
Appliion :
Motors, Fans, Conveyors, Agricultural Machinery, General Industrial Equipment
Price :
USD 0.50 to 1.00
Bearing Model :
62203-2ZRC3
Packaging Details :
in individual packing box
Outer diameter（D） :
40mm
Brand Name :
GQZ /OEM
Feature :
Wide width design, double metal shield, dust-proof, C3 increased clearance for high temperature & interference fit
Certifiion :
ISO9001:2015
Clearance :
C3
Place of Origin :
China
Number of row :
Single Row
Description
62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance

62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance

Product Overview
  • 62203-2ZR C3 is a single row wide-section deep groove ball bearing with dimensions 17×40×16mm. Equipped with double-sided non-contact metal shields (2ZR) and C3 increased radial clearance. Compared with standard 6203 bearing, its wider width provides larger load capacity. This bearing can bear radial loads and bidirectional light axial loads simultaneously. It runs smoothly at medium-high speed, suitable for equipment with interference fit and obvious temperature rise. Manufactured from high-grade chrome bearing steel, it is widely used in general industrial machinery.

*Send us your inquiry now to get samples and the latest factory quotation for 62203-2ZRC3 bearings.

Key Specifiions
Specifiion Value
Bearing Model 62203-2ZRC3
Bore d 17 mm
Outer diameter D 40 mm
Width B 16 mm
r min 0.6 mm
Basic dynamic load Cr 13.2 kN
Basic static load C0r 7.8 kN
Limiting speed (Grease) 9500 r/min
Limiting speed (Oil) 11500 r/min
Clearance C3 (Increased radial clearance)
Seal 2ZR, double side metal shield
Approx weight 0.158 kg
Precision class P0, P6 optional
Main Features
  • Wide cross-section design delivers higher load capacity than standard 6203 bearing
  • Double-sided 2ZR metal shields, effective dust prevention, suitable for medium-high speed operation
  • C3 enlarged internal clearance, adapts to tight fitting and high-temperature working conditions
  • Low friction torque, stable rotation, low noise and vibration
  • Can withstand radial load plus bidirectional light axial load
  • Simple installation, pre-greased, low maintenance requirements
Typical Appliions
  • Electric motors, fans and blowers
  • Water pumps and small compressors
  • Conveyor equipment
  • Agricultural machinery
  • Woodworking machinery
  • General automation and transmission equipment

*Contact our engineering team today for professional bearing selection guidance and technical parameters.

Why Choose GQZ Bearing
  • Adopt premium GCr15 chrome bearing steel, precise heat treatment to guarantee hardness and wear resistance.
  • Strict clearance inspection; every 62203-2ZR C3 keeps stable C3 clearance to meet thermal expansion demand.
  • Fine grinding raceway ensures low noise, flexible rotation and extended service life.
  • Stable stock for wide series deep groove bearings, fast shipment for samples and bulk orders.
  • Support OEM laser marking, customized packaging and professional technical selection consultation.

62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance

62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance

62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance

62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance

62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance

62203-2ZRC3 Wholesale Deep Groove Ball Bearing 17*40*16mm Double Shielded Wide Bearing C3 Clearance

FAQ

Q1: Dimensions of 62203-2ZR C3?

A1: 17×40×16 mm.

Q2: What does 2ZR mean?

A2: Double-sided non-contact metal dust shields, dust-proof, not waterproof.

Q3: What is C3 clearance for?

A3: Increased clearance, suitable for tight fit and high-temperature working conditions.

Q4: Difference between 62203 and 6203?

A4: 62203 is wide series, wider width and higher load capacity than standard 6203.

Q5: Limiting speed of this bearing?

A5: 9500 r/min (grease), 11500 r/min (oil).

Q6: Can it carry heavy axial load?

A6: Only light bidirectional axial load.

*Place bulk orders with GQZ, enjoy stable stock, short lead time and reliable after-sales service.
