Specifications
MOQ :
1 PCS
Delivery Time :
3-5 working days
Housing overall length H :
113 mm
Structure :
Spherical Insert Bearing
Price :
USD 5 to 9
Appliion :
Food machinery, Beverage equipment, Marine equipment, Agricultural machinery, Conveyors
Packaging Details :
in individual packing box
Housing Type :
Two-bolt Flange Housing
Certifiion :
ISO9001:2015
Inner diameter :
d=15 mm
Place of Origin :
China
Precision class :
P0 / P6
Brand Name :
GQZ /OEM
Material :
Bearing insert: Stainless steel / Housing: Stainless steel
Model Number :
SSUCFL202
Bearing Model :
SSUCFL202
Payment Terms :
T/T,,
Feature :
Self-aligning, corrosion resistant, set screw locking, easy installation
Supply Ability :
100000 Sets per month
Type :
Ball Bearing
Description

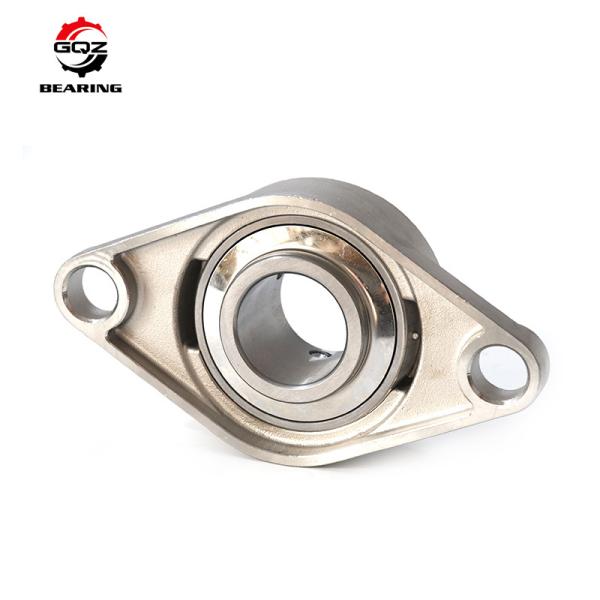

SSUCFL202 Stainless Steel Flange Pillow Block Bearing 15mm Two Bolt Flanged Mounted Ball Bearing For Food Machinery

SSUCFL202 Stainless Steel Flange Pillow Block Bearing 15mm Two Bolt Flanged Mounted Ball Bearing For Food Machinery

Product Overview
  • SS UCFL202 is a high-performance stainless steel two-bolt flanged insert bearing unit with a 15mm bore size. It combines a stainless steel spherical bearing insert and a stainless steel flange housing, featuring set screw locking and double-lip sealing structure. This mounted bearing adopts self-aligning function to compensate minor shaft misalignment, ensuring smooth and stable rotation. Full stainless steel construction provides excellent anti-rust and anti-corrosion performance, making it ideal for humid, wet, dusty and corrosive working environments commonly found in food processing, marine and sanitary equipment.

    *Send us your inquiry now to get samples and the latest factory quotation for SSUCFL202 bearings.

Key Specifiions
Specifiion Value
Bearing Model SSUCFL202
Bore d 15 mm
Housing overall length H 113 mm
Mounting hole spacing J 90 mm
Flange width L 60 mm
Insert bearing width B 31 mm
Offset S 12.7 mm
Flange thickness A1 11 mm
Mount hole diameter N 12 mm
Matching bolt M10
Basic dynamic load Cr 12800 N
Basic static load C0r 6650 N
Approximate weight 0.44 kg
Material Bearing insert: Stainless steel / Housing: Stainless steel
Main Features
  • Full stainless steel structure provides superior corrosion resistance, rust-proof and water-proof performance for long service life.
  • Self-aligning design automatically compensates shaft installation deviation and reduces running vibration.
  • Precision set screw locking ensures firm shaft fixation, preventing slipping during high-speed operation.
  • Double lip rubber seal effectively blocks dust, water vapor and debris to protect internal grease.
  • Integrated flange housing with two-bolt design enables fast and convenient installation.
  • Lightweight structure, stable operation, low noise and maintenance-free performance.

Typical Appliions
  • Food processing machinery and beverage equipment
  • Marine and coastal corrosion-resistant equipment
  • Conveyor systems and automated production lines
  • Agricultural and garden machinery
  • Medical and sanitary industrial equipment
  • Chemical and humid environment mechanical devices

*Contact our engineering team today for professional bearing selection guidance and technical parameters.

Why Choose GQZ Bearing
  • Strict stainless steel material selection – All housings and bearing inserts adopt high-quality stainless steel to ensure consistent anti-corrosion performance.
  • Precision manufacturing – Fine grinding process ensures high dimensional accuracy, flexible rotation and low noise.
  • Strong corrosion & rust resistance – Perfect replacement for ordinary cast iron bearings in wet and sanitary scenarios.
  • Stable stock & fast delivery – Complete models in stock, support sample testing and bulk wholesale orders.
  • Custom & OEM service – Provide laser logo, customized packaging and technical selection support.
SSUCFL202 Stainless Steel Flange Pillow Block Bearing 15mm Two Bolt Flanged Mounted Ball Bearing For Food Machinery SSUCFL202 Stainless Steel Flange Pillow Block Bearing 15mm Two Bolt Flanged Mounted Ball Bearing For Food Machinery SSUCFL202 Stainless Steel Flange Pillow Block Bearing 15mm Two Bolt Flanged Mounted Ball Bearing For Food Machinery SSUCFL202 Stainless Steel Flange Pillow Block Bearing 15mm Two Bolt Flanged Mounted Ball Bearing For Food Machinery SSUCFL202 Stainless Steel Flange Pillow Block Bearing 15mm Two Bolt Flanged Mounted Ball Bearing For Food Machinery SSUCFL202 Stainless Steel Flange Pillow Block Bearing 15mm Two Bolt Flanged Mounted Ball Bearing For Food Machinery
FAQ

Q1: What is the bore size of SS UCFL202?

A1: The inner bore diameter is15mm, standard shaft matching size.

Q2: What is the difference between UCFL202 and SS UCFL202?

A2: Ordinary UCFL202 is cast iron housing, easy to rust. SS UCFL202 is full stainless steel, completely anti-rust and corrosion-resistant.

Q3: Does this bearing support waterproof and wet environment?

A3: Yes. With full stainless steel material and double lip seals, it works perfectly in water, humidity and dust conditions.

Q4: What locking structure does SS UCFL202 adopt?

A4: Standard set screw locking, simple installation and firm positioning.

Q5: Is self-aligning function available?

A5: Yes, the spherical outer ring allows small angle deviation adjustment to protect shaft and machine.

*Place bulk orders with GQZ, enjoy stable stock, short lead time and reliable after-sales service.
