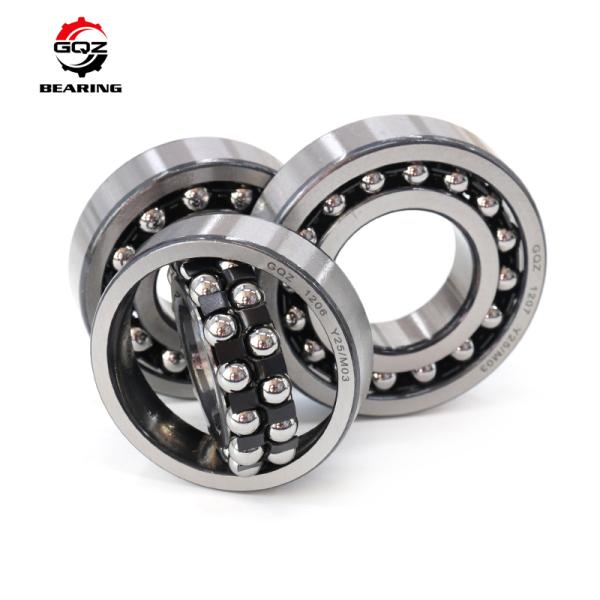

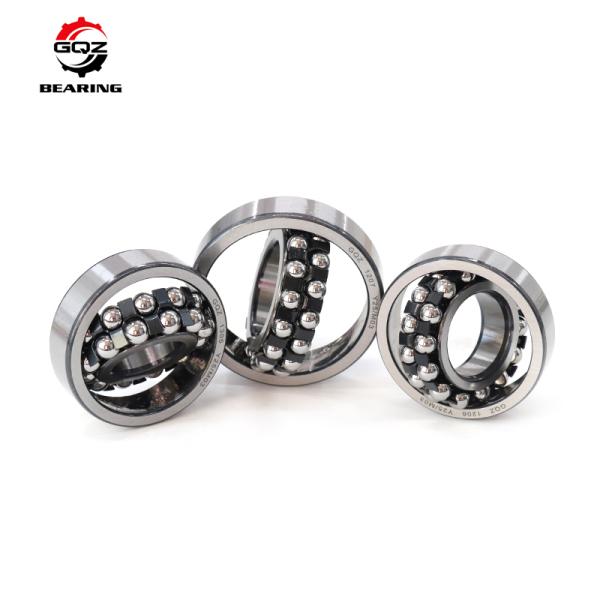

1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ
1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ
1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ
1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ
1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ
1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ
1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ
1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ
Specifications
Appliion :
Ventilation fans, conveyors, textile machinery, agricultural equipment, small gearboxes
Precision Class :
PO/P6
MOQ :
1 PCS
Delivery Time :
3-5 working days
Number of row :
Double Row
Price :
USD 0.8-2
Seals type :
Open
Model Number :
1206TV
Outer diameter :
62mm
Payment Terms :
T/T,,
Bearing Model :
1206TV
Supply Ability :
100000 Sets per month
Material :
GCr15 Chrome Bearing Steel
Packaging Details :
in individual packing box
Width（B） :
16mm
Brand Name :
GQZ /OEM
Feature :
Self-aligning capability, tolerate shaft misalignment, low friction, high speed, stable rotation
Certifiion :
ISO9001:2015
Inner diameter :
30mm
Place of Origin :
China
Description
1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ

1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ

Product Overview
  • 1206TV is double row open self-aligning ball bearing with dimension 30×62×16mm. It features spherical outer ring raceway, which allows angular compensation to tolerate shaft deflection and installation misalignment. Equipped with lightweight TV glass fiber reinforced polyamide ball-guided cage, it delivers low friction and low temperature rise for continuous medium & high-speed operation. Open structure supports oil circulation lubriion. It can bear combined radial load and moderate bidirectional axial loads, widely used for general machinery where alignment error exists.

*Send inquiry to get full technical datasheet and factory price of 1206TV bearing.

Key Specifiions
Specifiion Value
Model 1206TV
Bore d 30 mm
Outer diameter D 62 mm
Width B 16 mm
Minimum chamfer r 1 mm
Dynamic load Cr 15.9 kN
Static load C0r 4.65 kN
Limiting speed (Grease) 13000 r/min
Limiting speed (Oil) 15400 r/min
Approximate weight 0.22 kg
Type Double Row Self-Aligning Ball Bearing
Cage TV Polyamide resin ball-guided cage
Seal Type Open without seal
Material GCr15 Chrome Bearing Steel
Clearance CN standard, C3 optional
Precision Class P0 / P6 optional
Main Features
  • Spherical outer raceway, excellent self-aligning performance to compensate shaft misalignment
  • TV polyamide snap cage, light weight, low friction, stable high-speed running
  • Double row steel ball design, balance radial and light axial load capacity
  • Open design, suitable for grease and circulating oil lubriion
  • CN normal clearance default, C3 enlarged clearance available for high temperature
  • P0 standard precision, P6 precision grade optional
Typical Appliions
  • Industrial ventilation fans and blower equipment
  • Logistics conveyor rollers and transmission machinery
  • Textile production machinery and spinning equipment
  • Small agricultural machinery and farm rotary parts
  • Light-duty gearboxes and general mechanical reducers
  • Packaging machinery and small automated production lines
Why Choose GQZ Bearing
  • High-purity GCr15 bearing steel with standardized heat treatment for stable hardness and wear resistance.
  • Precision ground spherical raceway ensures reliable self-aligning performance.
  • Strict dimensional inspection to guarantee consistent clearance and rotation smoothness.
  • Ready stock of 12 series self-aligning ball bearings, support sample orders and fast bulk delivery.
  • OEM laser marking and customized packaging available for global wholesale buyers.

*Contact our engineer to select precision grade and cage for your machine spindle.

1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ 1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ 1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ 1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ 1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ 1206TV Self-Aligning Ball Bearing 30×62×16mm Double Row Nylon Cage Self Align Bearing For Fan Conveyor Textile Machinery GQZ
FAQ

Q1: Dimensions of 1206TV?

A1: Bore 30 mm, OD 62 mm, width 16 mm.

Q2: What does TV stand for?

A2: Glass fiber reinforced polyamide ball-guided snap cage.

Q3: Core advantage?

A3: Self-aligning, can absorb shaft installation misalignment.

Q4: Lubriion option?

A4: Open type, compatible with grease or circulating oil lubriion.

Q5: Optional clearance?

A5: CN standard clearance, C3 clearance can be customized.

*Stable stock for thin-wall cylindrical roller bearings, support fast bulk shipment.
