NJ Big Size Single Row Cylindrical Roller NJ230 Chrome Steel Crankshaft Bearings 150x270x45 mm
NJ Big Size Single Row Cylindrical Roller NJ230 Chrome Steel Crankshaft Bearings 150x270x45 mm
NJ Big Size Single Row Cylindrical Roller NJ230 Chrome Steel Crankshaft Bearings 150x270x45 mm
NJ Big Size Single Row Cylindrical Roller NJ230 Chrome Steel Crankshaft Bearings 150x270x45 mm
Specifications
Brand Name :
NSK
Model Number :
NJ230
Certification :
ISO9001:2008
Place of Origin :
Japan
MOQ :
1 pcs
Price :
negotiation
Payment Terms :
T/T or western Union or PayPal
Supply Ability :
3,000pcs per month
Delivery Time :
3 working days after received your payment
Packaging Details :
Packed in carton firstly,and then reinforced with wooden case for outer packing
Structure :
Cylindrical
Type :
Roller
Material :
Chrome steel
Application :
Vibration machinary,CNC machine and so on
earing crankshaft bearings width :
45 mm
Weight :
11.9 KG
Description

150x270x45mm NJ big size cylindrical roller bearing NJ230 Chrome steel cylindrical roller bearing crankshaft bearings

All sizes of roller bearings NJ230 Chrome steel cylindrical roller bearing crankshaft bearings :
  • N Series - Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.
  • NU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.
  • NN Series - Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.

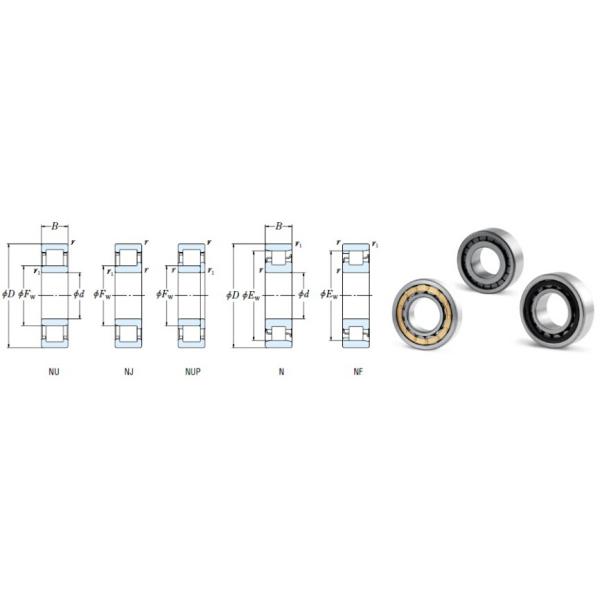

There are different types designated NU, NJ, NUP, N, NF for single-row bearings, and NNU, NN for double-row bearings depending on the design or absence of side ribs. AST’s cylindrical roller bearings come in the following series with various cage designs and Metric dimensions:

NJ Big Size Single Row Cylindrical Roller NJ230 Chrome Steel Crankshaft Bearings 150x270x45 mm

All sizes of roller bearings NJ230 Chrome steel cylindrical roller bearing crankshaft bearings specification :

d 150
D 270
B 45
rsmin 3
Ew 242
Fw 182
Mass (KG) 11.9
Cr (KN) 440
Cor (KN) 585
Limiting Speed 4500
Bearing Code NJ230E
D1Min 164
D1Max 179
D2Min 184
D3Min 196
D4Max 256

NJ Big Size Single Row Cylindrical Roller NJ230 Chrome Steel Crankshaft Bearings 150x270x45 mm

NJ Big Size Single Row Cylindrical Roller NJ230 Chrome Steel Crankshaft Bearings 150x270x45 mm

NJ Big Size Single Row Cylindrical Roller NJ230 Chrome Steel Crankshaft Bearings 150x270x45 mm

Stock series bearing

NJ205E NJ205EM NJ205M NJ205
NJ206E NJ206EM NJ206M NJ206
NJ207E NJ207EM NJ207M NJ207
NJ208E NJ208EM NJ208M NJ208
NJ209E NJ209EM NJ209M NJ209
NJ210E NJ210EM NJ210M NJ210
NJ211E NJ211EM NJ211M NJ211
NJ212E NJ212EM NJ212M NJ212
NJ213E NJ213EM NJ213M NJ213
NJ214E NJ214EM NJ214M NJ214
NJ215E NJ215EM NJ215M NJ215
NJ216E NJ216EM NJ216M NJ216
NJ217E NJ217EM NJ217M NJ217
NJ218E NJ218EM NJ218M NJ218
NJ219E NJ219EM NJ219M NJ219
NJ220E NJ220EM NJ220M NJ220
