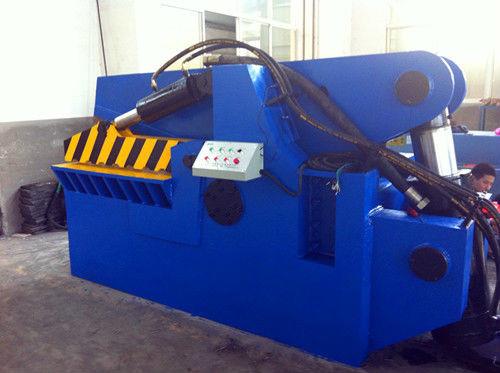

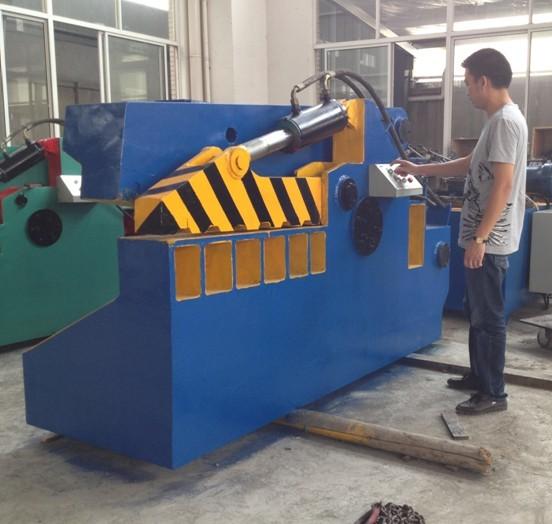

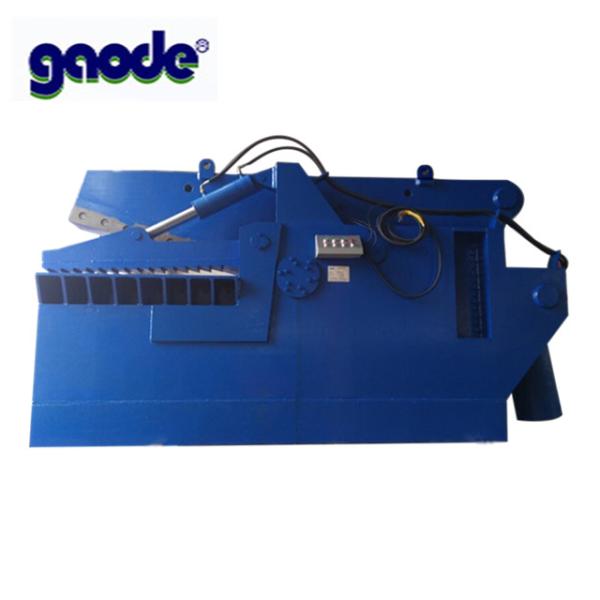

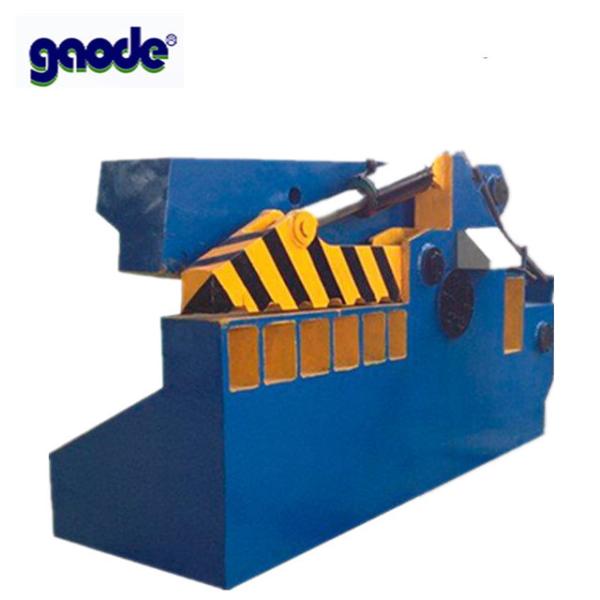

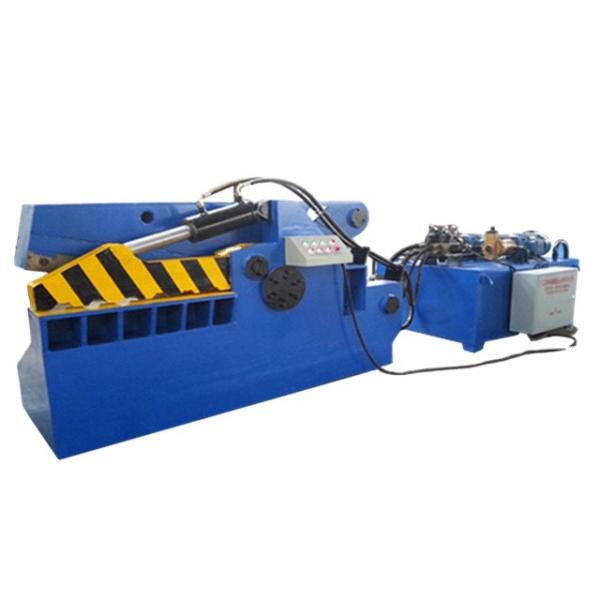

700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
gaode
Packaging Details :
in nude Alligator hydraulic metal scrap stainless steel cutter
Supply Ability :
100 Set/Sets per Year
Price :
$5,550.00/sets 1-4 sets
Condition :
New
Type :
CNC Plasma Cutters
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
PLC, Engine, Motor, Pump
Voltage :
220v or in your demand
Rated Power :
22kw
Dimension(L*W*H) :
2300*1000*1300
Year :
2019
Warranty :
6months
Key Selling Points :
Competitive Price
Applicable Industries :
Other
Showroom Location :
Germany, Russia, Thailand, Argentina, Bangladesh, Japan, Malaysia, Australia
Weight (KG) :
80 KG
color :
blue
Max Holding Force(ton) :
25
Max shear Force(ton) :
160
Blade Length(mm) :
700
Max Blade Opening(mm) :
320
Shear Frequency(times/min) :
9-16
Nominal Speed :
1460rpm
Power(KW) :
18.5
operation :
Menual Feeding menual or Automatic operation
Square Steel(mm) :
50*50
Port :
shanghai
Description

Alligator hydraulic metal scrap stainless steel cutter HC43-1600

Technical Specifications:

TECHNICAL SPECIFICATIONS

1

Max Shear Force

2000KN

2

Max Holding Force

250KN

3

Shearing Frequency

9~16 times/min

4

Height of Working Table

740 mm

5

Blade Length

700mm

6

Max Blade Opening

320mm

7

Hydraulic System Pressure

21.5MPa

8

Control System

Hydra-electrical Valves;

Push Button to Control

9

Shearing Material

Size

Round Steel

Ø35MM

Square Steel

50*50 MM

10

Motor

Model

Y180M-4

Quantity

1 set

Nominal Speed

1460rpm

Nominal Power

18.5 KW

11

Hydraulic Pump

Model

80YCY14-1B

Quantity

1set

Nominal Outflow

80ml/r

Nominal Pressure

31.5MPa

Product Flow:

Packaging & Shipping

Packaging Detail: in nude

Delivery Detail: 20-25 working days

700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter

Exhibition:

700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter

Factory:

Jiangyin Gaode Hydraulic Machinery Co,Ltd. We are the professional manufacture of hydraulic machinery and scrap proccessing equipment . As we all known, there are abundant technical force, advanced test equipment and technology and completed testing means.

The products are widely used in the industry of metallurgy, forge and press, casting textile, chemical fiber, materials recovery facility and so on.

700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter

Certifications

700mm Alligator Shears Hydraulic Metal Scrap Stainless Steel Cutter

contact

Company Contact: Jiangsu Gaode Hydraulic Machinery Co,Ltd.

Nancy Ren

Trademanager:cn200094822

TEL: 86-510-86996082 13815143573

FAX: 86-510-86993993

ADD: NO.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.
