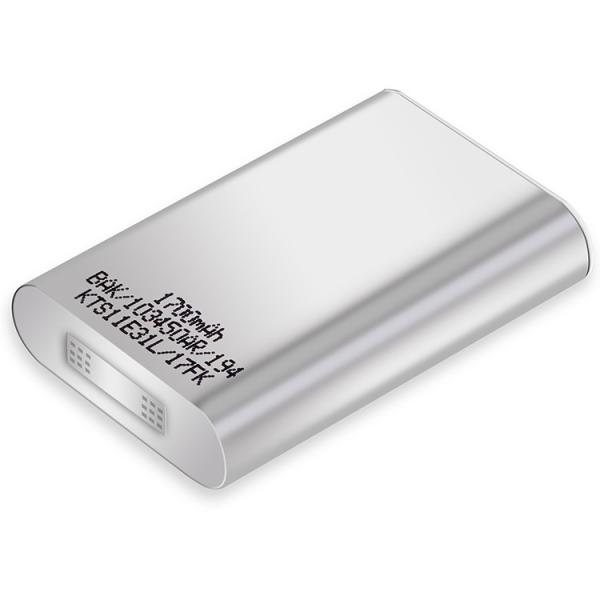

3.7V 1700mAh Rechargeable Li Ion Battery Lithium Polymer Cell 103450AR2 For Notebook

Specifications

Brand Name :

BAKTH / Neutral / OEM

Model Number :

103450AR2

Place of Origin :

Guangdong, China

Certification :

Packaging Details :

meet IATA

Supply Ability :

300000 Piece/Pieces per Month

MOQ :

100 pieces

Price :

CN¥18.75/pieces 100-999 pieces

Application :

Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Fo

Weight :

36g

Size :

10.4*34.5*50.5 (mm) Max

Product features and features :

production by automatic production line with high quality materials

Max charge voltage :

4.2V

Discharge cut off voltage :

2.75V

Standard charge current :

0.2C

Max charge current :

900mAh

Charging mode :

CC/CV

Charging Temperature :

0~45℃

Discharging Temperature :

-20 ~ 60℃

Warranty :

12 Months, 3months-1year

Anode Material :

LCO

Chargeable :

Yes

Storage Type :

30% full charged

The charging ratio :

0.5C

The discharge rate :

Port :

Shenzhen/Hongkong

Description

Rechargeable 3.7V 1700mAh lithium polymer cell lipo battery 103450AR2 for notebook computer battery wrap custom printed

Product Description

Product features and features	production by automatic production line with high quality materials	Charging Temperature	0~45℃
Nominal capacity	1700mAh (0.2C)	Discharging Temperature	-20 ~ 60℃
Nominal voltage	3.7V	Storage temperature	≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months
Max charge voltage	4.2V	Humidity Range	0~85% (non-condensing)
Discharge cut off voltage	2.75V	Dimension	10.434.550.5 (mm) Max
Standard charge current	0.2C	Weight	≤36g
Max charge current	900mAh	Brand	BAKTH / Neutral / OEM
Standard dischrge current	0.2C	Warranty	12 Months
Max dischrge current	1800mAh	PCB/PCM	none
Charging mode	CC/CV	Connector	none
Internal resistance	≤60m (AC Impedance, 1000Hz)	Battery type	Li-ion
Cycle life	300 cycles (≥80%)	Rechargeable or not	Yes

Model	Nominal capacity	Nominal voltage	Max discharge current	Cycle life	Dimension	Certificate (Part)	Battery type
N18650CP High energy	3350mAh	3.6V	30A	600cycles	65.0*18 (mm)Max	UN38.3 UL1642 IEC62133	18650 cell
N18650CK High energy	3050mAh	3.6V	2C	500cycles	65.0*18 (mm)Max
N18650CL High energy	3000mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
N18650CNP stability	2500mAh	3.6V	30A	600cycles	65.0*18 (mm)Max
H18650CIL High rate	2500mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
H18650CH High rate	2600mAh	3.6V	4C	500cycles	65.0*18 (mm)Max
H18650CC High rate	2150mAh	3.6V	5C	1000cycles	65.0*18 (mm)Max
N21700CB High energy	4800mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
26650FS2-Fe Stability	3300mAh	3.2V	5C	2000cycles	26*65.5 (mm)Max		LiFEPO4
26650FS3-Fe Stability	3600mAh	3.2V	3C	2000cycles	26*65.5 (mm)Max
26650HP-Fe High rate	2200mAh	3.2V	15C	2000cycles	26*65.5 (mm)Max
