| PRODUCT PARAMETERS | | |

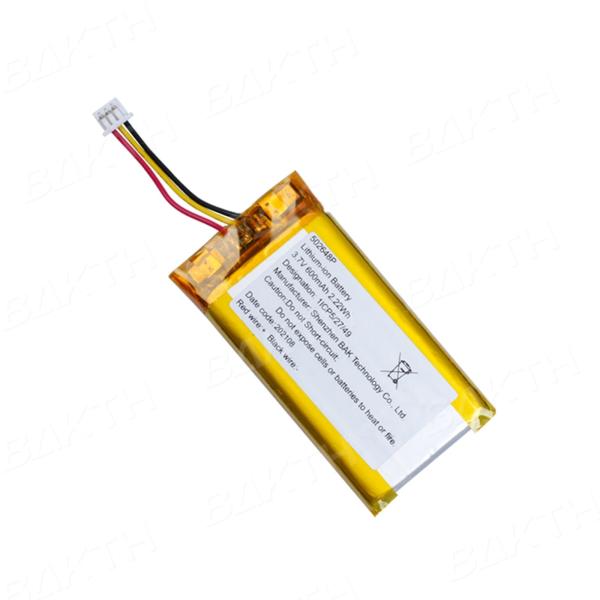

| Product Name | 1S1P 3.7V 600mAh 2.22Wh Lithium ion polymer cell 502648P | |
| Nominal Voltage | 3.7V | |
| Charge Voltage | 4.2V | |
| Nominal Capacity | 600mAh | |
| Cycle Life | 300 times | |
| Size | about 6.0*26.5*51(mm) | |
| Approx Weight | about 12g | |
| Charging mode | CC/CV | |
| Charging Temperature | 0~45℃ | |
| Max charge current | 1C | |
| Warranty | 12 Months | |
| Discharging Temperature | -20 ~ 60℃ | |
| Anode Material | LCO | |
