523450AR 1100mAh 3.7 V Lithium Battery Li Ion Battery Bank For Digital Devices

Specifications

Brand Name :

BAKTH/OEM/Neutral

Model Number :

BAKTH-523450AR-NP60

Place of Origin :

Guangdong, China

MOQ :

5pieces

Price :

CN¥26.54/pieces 2-499 pieces

Application :

Toys, Power Tools, Home Appliances, Consumer Electronics, SUBMARINES, Consumer Electronics

Cycle Life :

500 cycles

Weight :

About 30g

Operating Temperature(℃) :

-20~60℃

Size :

7.3*35.6*53(mm)

Max charge voltage :

4.2V

Discharge cut off voltage :

2.75V

Max charge current :

0.5C

Max dischrge current :

Charging mode :

CC/CV

Humidity Range :

0~85% (non-condensing)

Warranty :

1year

Description

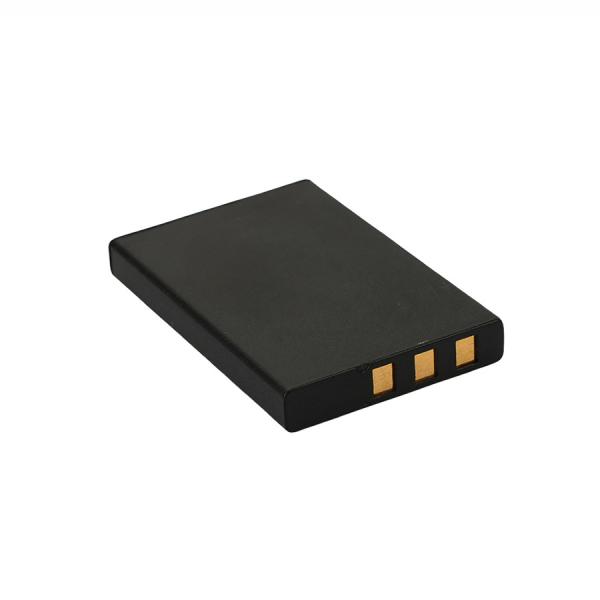

Real Capacity 523450AR 3.7V 1100mAh Rechargeable Lithium-Ion Battery for Digital Devices

This compact lithium-ion battery (model 523450AR) is designed to power a wide range of portable digital devices, offering reliable performance with a nominal voltage of 3.7V and a capacity of 1100mAh. Its lightweight and slim form factor make it ideal for integration into small electronics, ensuring efficient energy delivery without compromising on space or weight.

Key Features:

High Energy Density: The lithium-ion chemistry provides stable power output, suitable for devices requiring consistent voltage under varying loads.

Rechargeable & Long-Lasting: Supports 300–500 charge cycles (depending on usage conditions) with minimal capacity degradation over time.

Built-in Protection: Includes safeguards against overcharge, over-discharge, and short circuits to enhance safety and battery lifespan.

Wide Compatibility: Compatible with digital cameras, Bluetooth headsets, handheld scanners, LED lights, and other low-power electronic devices.

Applications:

Consumer Electronics: Backup power for smartwatches, wireless earbuds, or portable medical devices.

IoT Gadgets: Sensors, remote controls, and wearable technology.

Custom Projects: DIY electronics or replacements for OEM batteries in legacy devices.

Note:

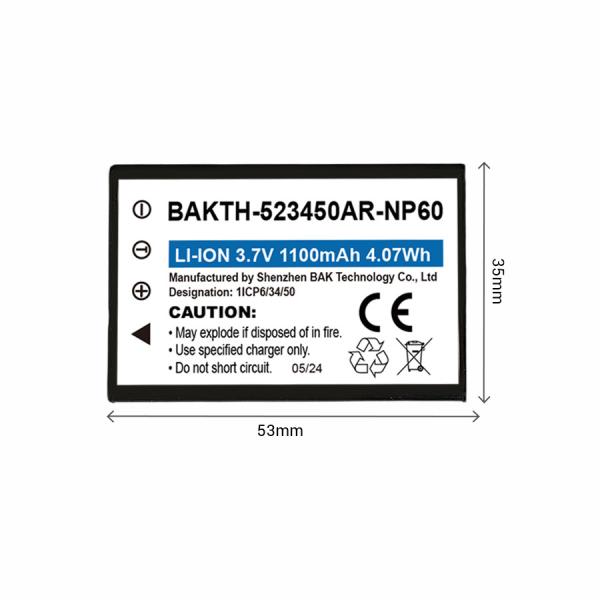

1.Always verify physical dimensions (7.3mm × 35.6mm × 53mm) before installation.

2.For optimal performance, use with a 3.7V Li-ion charger and avoid exposure to extreme temperatures.

Parameters:

Product features	production by automatic production line with high quality materials	Humidity Range	0~85% (non-condensing)
Nominal capacity	1100mAh	Dimension	7.335.653(mm)
Nominal voltage	3.7V	Weight	about 30g
Max charge voltage	4.2V	Brand	BAKTH / Neutral / OEM
Discharge cut off voltage	2.75V	Warranty	12 Months
Max charge current	0.5C	PCB/PCM	none
Max dischrge current	1C	Connector	none
Charging mode	CC/CV	Battery type	Li-ion
Discharging temperature	-20 ~ 60℃	Rechargeable or not	Yes
Storage temperature	≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months	Sample	acceptable

Certificate
