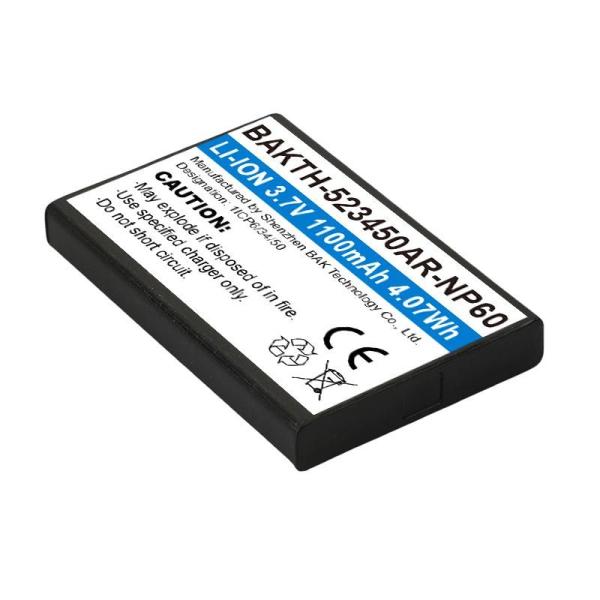

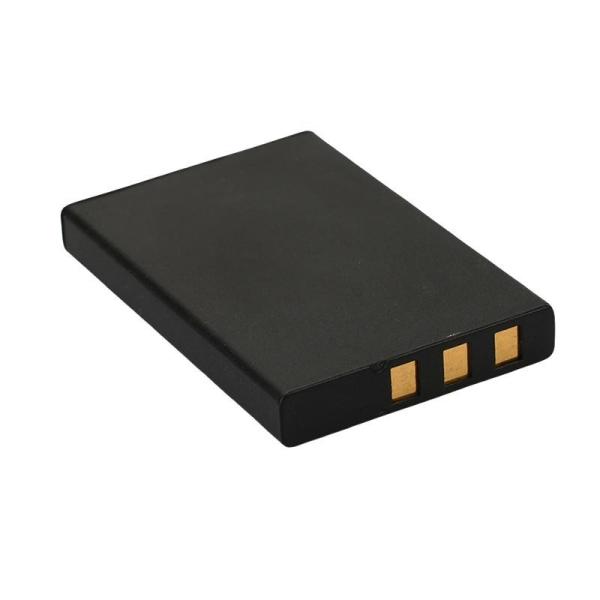

1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing
Specifications
Brand Name :
BAKTH/OEM
Model Number :
BAKTH-523450AR-NP60
Certification :
IEC62133-2:2017 Adm1:2021, UL2054, UN38.3, CE, UKCA, C-TICK
Place of Origin :
CN
MOQ :
10KPCS
Price :
US$2.0~US$4.0/PC
Payment Terms :
T/T
Supply Ability :
100KPCS/Month
Delivery Time :
4-6 weeks
Packaging Details :
300PCS/Carton
Discharging Temp :
-20-45℃
Service :
OEM/ODM accpeted
Warranty :
1 Year
Safety :
With secondary protection BMS, pass UL2054
Battery Type :
Li ion Battery Pack
Charge Cycles :
300 times
Max Discharge Current :
1.2A
Charge Temperature :
0°C to 45°C
Description

Lithium Battery 3.7V 1200mAh 523450A for Camera for US marketing

Product Overview

The lithium ion battery pack is rechargeable high capacity in limited dimensions, with many advantages, such as high energy density, long cycles and self-discharging consumption, quick charging, etc. This battery has passed IEC62133, UN38.3, UL2054, UKCA, C-TICK certificates, comply with ROHS&REACH standard. As custom battery pack manufacturer, our factory have 100Kpcs/monthly production ability to meet customer's custom battery pack need. From battery pack design, BMS (battery management system) design, battery assemble, all finished in our factory. As the professional lithium ion battery pack manufacturers, we mainly focus to improve our production ability, provide customized battery service to meet customers' requirements.

Specification

No.

Items

Specification

1

Normal Voltage

3.7V

2

Nominal Capacity

1200mAh

Standard charge & discharge

3

Minimum Capacity

1150mAh

4

Max Charge Voltage

4.2V (CC/CV)

5

Discharge cut-off voltage

2.4V (limited by PCB)

6

Standard Charge

0.2C (CC charge to 4.2V, then CV to 0.02C cut off)

7

Standard Discharge

0.2C (CC Discharge to 2.5V) (limited by PCB)

8

Max. Charge Current

0.2C(0℃~10℃)

0.5C Max (0℃~10℃)

9

Max. Discharge Current

1C

10

Humidity range

45-75% RH (non-condensing)

11

Impedance

≤230mΩ (AC Impedance, 1000 Hz)

12

Rechargeable lithium cell

523450AR (almunium case battery)

13

Battery Weight

Approx:30g

14

Battery Dimension

53*35.6*7.3mm Max

Features

Certifications and Safety---Passed the IEC62133-2:2017 Adm1:2021, UL2054, UN38.3, CE, UKCA, C-TICK certificates. Compliant with RoHS, REACH standards, and ensuring environmental safety and global market accessibility.
Stable chemistry resists thermal runaway.

Portable battery pack with case, suitable for camera, electronic device, and other medical devices.

Qualification

1200mAh Lithium Ion Battery Pack 523450A NP60 For Camera Marketing

Gurantee

Warranty Policy---1 year warranty.

Technology Guidance---Offering technology support service.

Custom battery pack design: Support.
