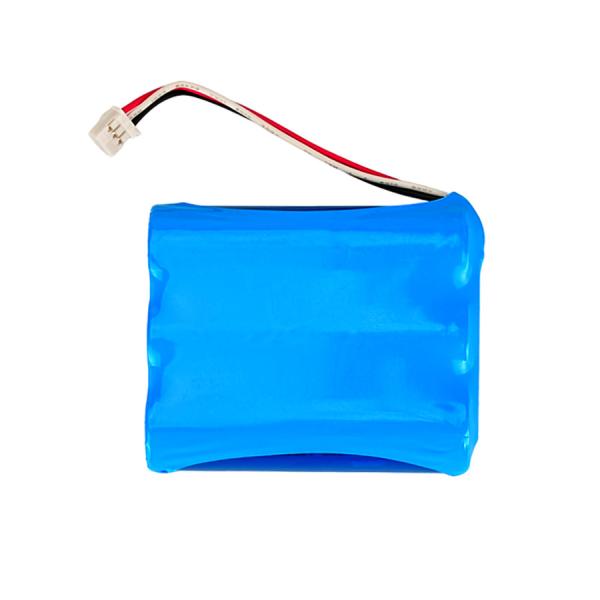

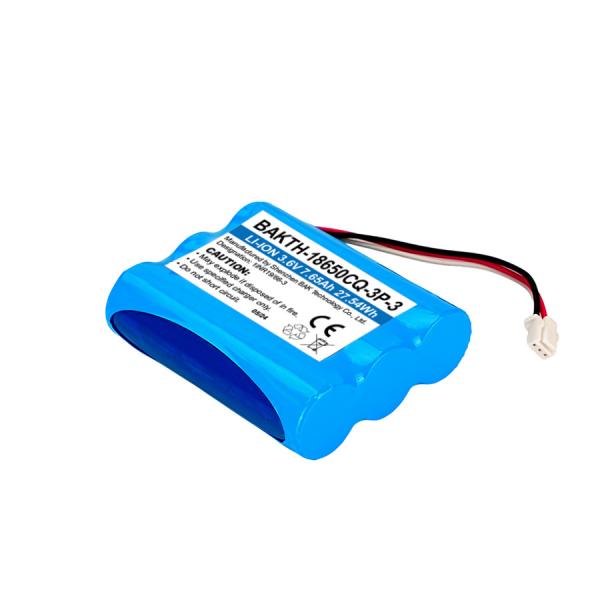

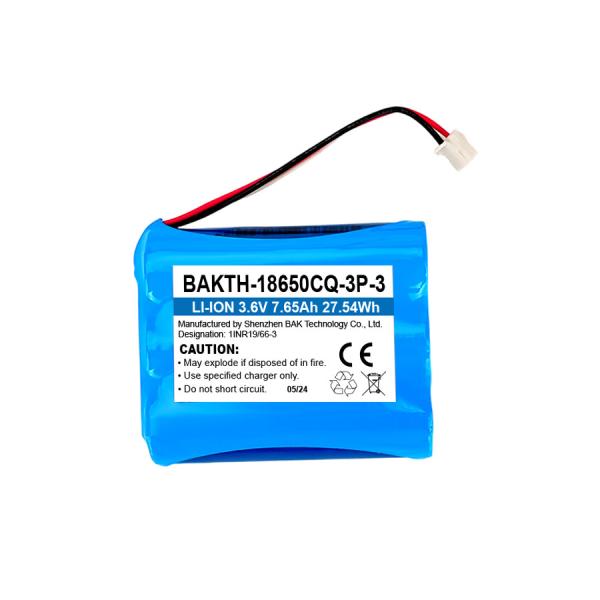

Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Eletronics
Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Eletronics
Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Eletronics
Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Eletronics
Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Eletronics
Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Eletronics
Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Eletronics
Customized Li Ion Battery Pack BAKTH 18650CQ-3P-3 7650mAh For Eletronics
Specifications
Brand Name :
BAKTH/OEM/Neutral
Model Number :
BAKTH-18650CQ-3P-3
Certification :
UN38.3, IEC62133
Place of Origin :
China
MOQ :
5pcs
Price :
USD7-8
Payment Terms :
T/T
Delivery Time :
30-35 days
Packaging Details :
60pcs/carton
Cell Type :
Liion Battery
Application :
Consumer Eletronic
Item No :
18650
Dimension :
19.5*56*70mm
Standard Charge Current :
0.2C
Discharge Current :
1C
Charge Method :
CC/CV
Description

Factory Customized Lithium Ion Battery Pack BAKTH-18650CQ-3P-3 7650mAh For Consumer Eletronics.

Overview:

This high-capacity lithium-ion battery pack (model BAKTH-18650CQ-3P-3) is engineered for custom integration into consumer electronics, delivering a robust 7650mAh capacity through its 3P configuration (three 18650 cells in parallel). With a nominal voltage of 3.7V (standard for Li-ion), it ensures extended runtime and stable power delivery for energy-hungry portable devices.

Parameters:

Product features production by automatic production line with high quality materials Charging Temperature 0~45℃
Nominal capacity 7650mAh Discharging Temperature -20 ~ 60℃
Nominal voltage 3.6V Storage temperature ≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
Max charge voltage 4.2V Humidity Range 0~85% (non-condensing)
Discharge cut off voltage 2.75V Dimension about 19.5*56*70mm
Standard charge current 0.2C Weight about 155g
Max charge current 1C Brand BAKTH / Neutral / OEM
Standard dischrge current 0.2C Warranty 12 Months
Max dischrge current 1C PCB/PCM yes
Charging mode CC/CV Connector JST PAP-03V-S connector or customized
Internal resistance ≤120 Battery type Li-ion
Cycle life 300 cycles Rechargeable or not Yes

Key Features:

Optimized Energy Density: Utilizes premium 18650 lithium-ion cells (BAKTH-CQ series) for balanced performance, longevity, and safety.

Modular Design: The 3P arrangement enhances capacity without increasing voltage, ideal for low-power, high-endurance applications.

Smart Protection: Integrated PCB (Protection Circuit Board) prevents overcharge, over-discharge, short circuits, and overheating.

Customization Options: Supports factory-tailored specifications for dimensions, connectors, and discharge rates to fit proprietary device designs.

Applications:

Portable Power Banks: Extended charging for smartphones and tablets.

Home Appliances: Cordless vacuum cleaners, electric toothbrushes.

IoT Devices: Smart home sensors, wearable health monitors.

DIY Projects: Custom battery solutions for drones or robotics.
