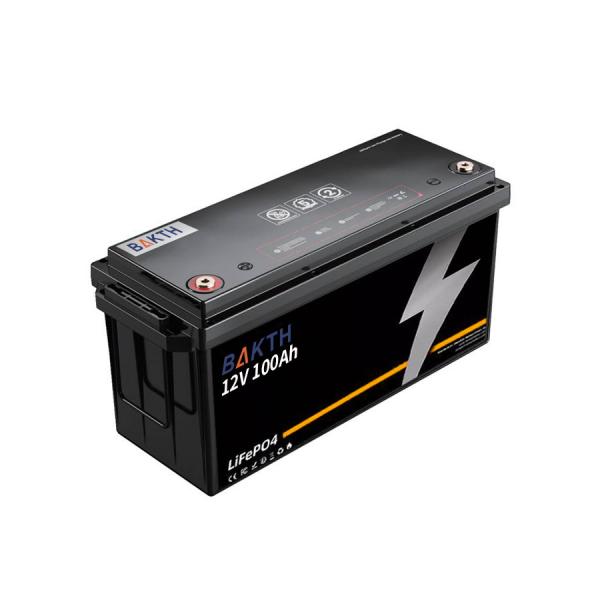

High Performance Lifepo4 Battery Pack 12V 100Ah For Energy Storage
High Performance Lifepo4 Battery Pack 12V 100Ah For Energy Storage
Specifications
Brand Name :
BAKTH
Model Number :
BAKTH-12.8V100Ah
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
2-99PCS
Price :
USD105.00-USD165.00/PC
Payment Terms :
T/T
Supply Ability :
5000 Units / Month
Delivery Time :
35-45 Days
Packaging Details :
Standard Export Packaging with Protective Foam & Carton Box
Battery Type :
LiFePO4
Voltage :
12.8V
Capacity :
100Ah
Terminal Type :
Copper terminals (Optional: T1, F2, M8, etc.)
Cycle Life :
≥4000 Cycles (Long Lifespan)
Application :
Outdoor devices, emergency systems, smart terminals, and more.
BMS Protection :
Built-in, with overcharge, over-discharge, overcurrent, short-circuit, and over-temperature protection
Casing :
Plastic casing / Customizable
Communication :
Optional (CANBus, MODBus, RS485/232, UART, Bluetooth)
Waterproof Rating :
IP65
Lead Time :
30-45 Days (Fast Delivery)
Customization Options :
Connector type, voltage/capacity, housing color, etc
Description

Product Overview


This 12V 100Ah LiFePO4 battery pack is designed for high-performance energy storage applications. Built with grade-A cells, it supports deep cycle usage, offering high energy density, long lifespan, and lightweight construction. It is widely used in solar systems, RVs, electric boats, and more.


Specification

Nominal Voltage 12.8V
Nominal Capacity 100Ah
Energy 1280Wh
Voltage Range 10V – 14.6V
Max Charge Current 50A
Max Continuous Discharge 100A
Operating Temperature -20°C to 60°C
Storage Temperature 0°C to 45°C
Dimensions (L×W×H) about 329mm x 172mm x 215mm
Weight Approximately 11 kg
Cycle Life 4000+ cycles @ 80%DOD
Protection Class IP65
BMS With overcharge, overdischarge, overcurrent, short circuit function
Casing Material ABS plastic
Charging Method CC-CV


Key Features

High Safety: Stable LiFePO4 chemistry
Ultra-long Cycle Life: 4000+ cycles @ 80% DOD
High Energy Density, Lightweight
Built-in Smart BMS for Overcharge, Overdischarge, Short Circuit Protection
Wide Operating Temperature Range
Supports Series and Parallel Expansion (up to 4S)

Applications

Solar Energy Storage Systems
Power Supply for RVs and Camper Vans
Electric Boats and Outboard Motors
Backup Power for Telecom Stations
Home Emergency Backup Power
UPS Systems

Production & Testing Process

Raw Material Inspection → Automated Cell Assembly → BMS Integration → Comprehensive Function Testing → High-Low Temperature Aging Test → Appearance and Packaging Inspection

Competitive Advantages

Own Factory with Strict Quality Control
100% Full Inspection Before Shipment
Experienced Technical Support Team
Fast Delivery (7-10 Days for Regular Products)
One-stop OEM/ODM Service


FAQ

Q1: Can the batteries be connected in series or parallel?
A1: Yes, up to 4 series and 4 parallel connections are supported.
Q2: How to maintain the battery?
A2: Avoid long-term overcharging or overdischarging. Regularly check the battery status.
Q3: Can I customize different sizes?
A3: Yes, customization service is available. Feel free to contact us!
