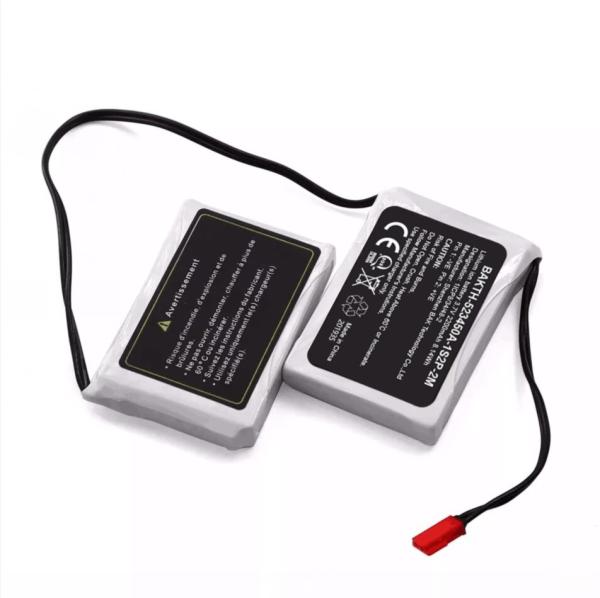

Rechargeable Snow / Ski Boots Use Flat Lithium Battery 523450AR 1S2P 3.7v 2200mAh Li-ion Battery

Specifications

Brand Name :

BAKTH / Neutral / OEM

Max Load Quantity(cells) :

Battery Type :

Solid state

Cycle Life :

500 cycles

Dimension (L*W*H) :

5.5*34.5*50.5(mm)

Application :

Toys, Home Appliances, Consumer Electronics

Model Number :

BAKTH-523450AR-1S2P-2M

Weight :

80g, about 80g

Operating Temperature(℃) :

-20 ~ 60℃

Place of Origin :

Guangdong, China

Cathode Materials :

LiCoO2

Battery Size :

523450AR

Size :

5.5*34.5*50.5(mm)

Max charge voltage :

4.2V

Discharge cut off voltage :

2.75V

Max charge current :

Charging mode :

CC/CV

Discharging Temperature :

-20 ~ 60℃

Humidity Range :

0~85% (non-condensing)

Warranty :

12 Months

MOQ :

2 sets

Price :

CN¥43.26/sets 2-499 sets

Description

Rechargeable Snow / Ski Boots Use Flat Lithium Battery 523450AR 1S2P 3.7v 2200mAh Li-ion Battery

Product Description

Model	Nominal capacity	Nominal voltage	Max discharge current	Cycle life	Dimension	Certificate (Part)	Battery type
N18650CP High energy	3350mAh	3.6V	30A	600cycles	65.0*18 (mm)Max	UN38.3 UL1642 IEC62133	18650 cell
N18650CK High energy	3050mAh	3.6V	2C	500cycles	65.0*18 (mm)Max
N18650CL High energy	3000mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
N18650CNP stability	2500mAh	3.6V	30A	600cycles	65.0*18 (mm)Max
H18650CIL High rate	2500mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
H18650CH High rate	2600mAh	3.6V	4C	500cycles	65.0*18 (mm)Max
H18650CC High rate	2150mAh	3.6V	5C	1000cycles	65.0*18 (mm)Max
N21700CB High energy	4800mAh	3.6V	3C	1000cycles	65.0*18 (mm)Max
26650FS2-Fe Stability	3300mAh	3.2V	5C	2000cycles	26*65.5 (mm)Max		LiFEPO4
26650FS3-Fe Stability	3600mAh	3.2V	3C	2000cycles	26*65.5 (mm)Max
26650HP-Fe High rate	2200mAh	3.2V	15C	2000cycles	26*65.5 (mm)Max

Product features	1. Production by automatic production line with high quality materials 2. Strictly quality control	Humidity Range	0~85% (non-condensing)
Nominal capacity	2200mAh	Dimension	5.534.550.5(mm)
Nominal voltage	3.7V	Weight	about 80g
Max charge voltage	4.2V	Brand	BAKTH / Neutral / OEM
Discharge cut off voltage	2.75V	Warranty	12 Months
Max charge current	1C	PCB/PCM	yes
Max dischrge current	1C	Connector	2P connector
Charging mode	CC/CV	Battery type	Li-ion
Discharging temperature	-20 ~ 60℃	Rechargeable or not	Yes
Storage temperature	≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months	Sample	available
