TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
Specifications
Brand Name :
TIANKONGRC
Model Number :
BLS-HV70MG
Certification :
CE&ROHS
Place of Origin :
China
MOQ :
100PCS
Price :
21.4USD
Payment Terms :
Paypal,T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Month
Delivery Time :
3-5 days for sample orders or according your order quantity
Packaging Details :
Color Box
Torque :
55.0-71.0kg.cm
Rotational speed :
0.13sec/60 degree(4.8V), 0.10sec/60 degree(8.4V)

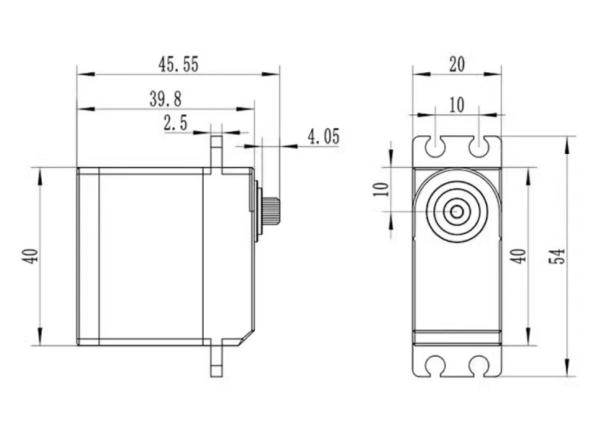

Dimension :
40*20*39.8mm
Weight :
90g±5g
Operation Voltage :
4.8V-8.4V
Description

Features :

  • 70KG brushless servo with high operating voltage from 4.8v to 8.4v DC
  • No-load speed: 0.13sec/60° (at 4.8V), 0.10sec/60° (at 8.4V)
  • Stall torque: 55 Kg-cm (at 4.8V), 71 Kg-cm (at 8.4V)
  • 70KG Waterpoof Servo: Waterproof performance IP67. Controllable angle range from 0 to 180 degrees
  • All metal servo: Full aluminum case (includes top cover, CNC middle shell and bottom cover), stainless steel metal gears, which make it precise control, less noise, light weight, higher operating accuracy

Specification:

Control Angle 180 Degree
Stall Torque 55 Kg-cm (at 4.8V), 71 Kg-cm (at 8.4V)
No-load speed 0.13sec/60° (at 4.8V), 0.10sec/60° (at 8.4V)
Operating Voltage 4.8 ~ 8.4 DC Volts
Pulse width range 500～2500 μsec
Rotating direction Counterclockwise (when 500～2500 μsec
Dead band 2μsec
Motor Type Brushless Motor
Gear Type All-metal
Bearing 2BB
Dimensions 40x20x39.8mm
Case Material All aluminium housing
Horns Material Aluminium + Plastic

Package includes :

  • 1 x 70kg Robot Servo (180°)
  • Serveral plastic horns
  • Screws (As Shown on The Picture)

Application :

TIANKONGRC BLS-HV70MG 70KG Brushless Servo High Torque Digital RC Servo Motor Waterproof All-Metal High Voltage 4.8~8.4V 180° Control Angle Steering Servo Motor For 1:8 1:10 RC Car
