Specifications
Brand Name :
TIANKONGRC
Model Number :
H70
Certification :
CE&ROHS
Place of Origin :
China
MOQ :
10PCS
Price :
27.0USD
Payment Terms :
Paypal,T/T, Western Union, MoneyGram
Supply Ability :
10000PCS/Month
Delivery Time :
3-5 days for sample orders or according your order quantity
Packaging Details :
Color Box
Torque :
58kg.cm/4.8V, 71kg.cm/8.4V
Rotational speed :
0.21 sec/60°(4.8V), 0.12 sec/60°(8.4V)

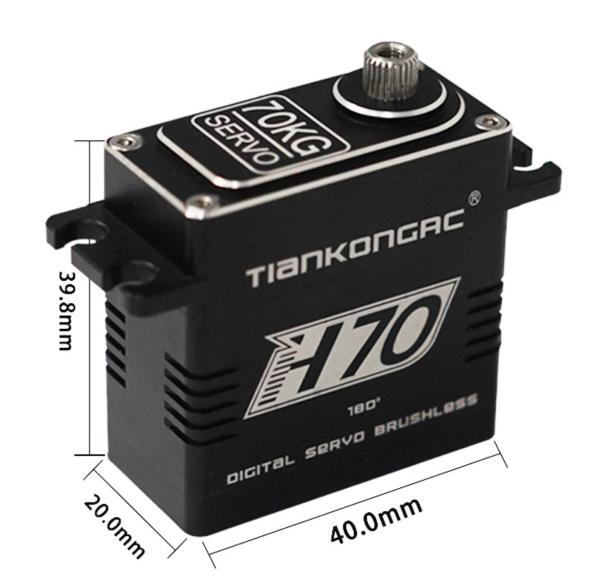

Dimension :
40.0*20.0*39.8mm
Weight :
80g±5%
Description

Features:


High Torque and High Speed:
This servo offers outstanding performance at different voltages. At the rated voltage of 8.4V, the no-load speed reaches 0.12sec/60°, and the peak stall torque is as high as 71kg·cm. It can easily handle the complex operational requirements of RC climbing cars.
Full Metal Structure and Waterproof Design:
With a full metal casing and steel gears, the servo is robust and durable. The waterproof feature allows it to be used in harsh environments, effectively extending its service life.
Brushless Motor Drive:
Equipped with a brushless motor, it offers higher efficiency, lower noise, and a longer lifespan compared to traditional brushed motors.
High Precision and Fast Response:
With an operating frequency of 1520ms/333Hz and a dead zone width of only 3 microseconds, the servo can quickly and accurately respond to control signals.

Specifications:

Operating Voltage 4.8V 6V 7.4V 8.4V
No Load Speed 0.21sec/60° 0.17sec/60° 0.14sec/60° 0.12sec/60°
Peak Stall Torque 52kg·cm 62kg·cm 68kg·cm 71kg·cm
Dimension 40.0 x 20.0 x 39.8 mm
Weight 80g ± 5%
Operating Temperature -20℃ to 60℃
Operating Frequency 1520ms/333Hz 0.5-2.5ms
Dead Zone Width 3usec
Motor Type Brushless Bearing Type

2BB
Gear Material Steel Cable Length 30cm

Application :
