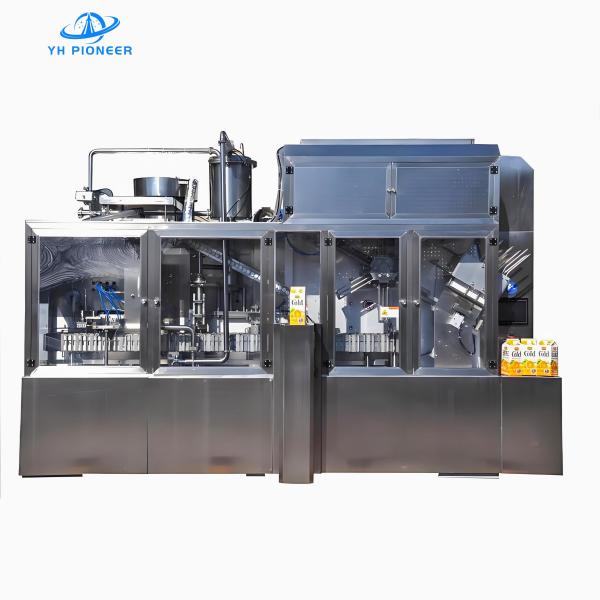

Stainless Steel Roof Carton Filling Machine 304 316 Material For Hygienic Juice Packaging Compact 3300mm Length Space Optimized Design
Stainless Steel Roof Carton Filling Machine 304 316 Material For Hygienic Juice Packaging Compact 3300mm Length Space Optimized Design
Stainless Steel Roof Carton Filling Machine 304 316 Material For Hygienic Juice Packaging Compact 3300mm Length Space Optimized Design
Stainless Steel Roof Carton Filling Machine 304 316 Material For Hygienic Juice Packaging Compact 3300mm Length Space Optimized Design
Stainless Steel Roof Carton Filling Machine 304 316 Material For Hygienic Juice Packaging Compact 3300mm Length Space Optimized Design
Stainless Steel Roof Carton Filling Machine 304 316 Material For Hygienic Juice Packaging Compact 3300mm Length Space Optimized Design
Stainless Steel Roof Carton Filling Machine 304 316 Material For Hygienic Juice Packaging Compact 3300mm Length Space Optimized Design
Stainless Steel Roof Carton Filling Machine 304 316 Material For Hygienic Juice Packaging Compact 3300mm Length Space Optimized Design
Specifications
Brand Name :
YH PIONEER
Place of Origin :
China
MOQ :
1 Sets
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 Sets/month
Delivery Time :
To be negotiated
Packaging Details :
Wooden box
Production Capacity :
Up to 3,000 cartons/hour
Weight :
3500KG
Rated Power :
27KW (3-phase 380V, 50Hz)
Compatible Containers :
Standard cold-fill roof cartons (300ml, 500ml, 1,000ml)
Dimensions :
3300mm (L) × 2100mm (W) × 2300mm (H)
Air Consumption :
650L/min (7kg/cm²)
Description

Stainless Steel Roof Carton Filling Machine With 304 316 Material For Hygienic Juice Packaging And Compact 3300mm Length Space Optimized Design

Roof Carton Filling Machine

We provide professional Roof Carton Filling Machine that can accurately and efficiently stack and arrange goods, significantly improving the operational efficiency of warehousing and logistics.

The Roof Carton Filling Machine is a high-performance solution designed for the automated production of cold-filled beverages such as juices and drinks. Utilizing modular design and an independent touchscreen control panel, this machine enables seamless switching between producing lidded or non-lidded cartons, ensuring long-term storage for products with fresh-seal lids. Its advanced integration of mechanical, electrical, and pneumatic systems guarantees stable operation, high efficiency, and user-friendly functionality.

TECHNOLOGICAL ADVANTAGE

Modular Flexibility: Adaptable design allows customization for lidded or non-lidded carton production.

High Automation: Fully automated processes from carton forming, filling, sealing, to output, minimizing manual intervention.

Precision Control: Equipped with micro-adjustment knobs and PLC systems for accurate filling volume and temperature regulation.

Durability: Stainless steel (304/316) construction for food-grade hygiene and corrosion resistance.

Energy Efficiency: Optimized heating and cooling systems reduce energy consumption.

Safety & Stability: Robust steel frame, safety sensors, and alarms ensure reliable operation.

PRODUCT SPECIFICATIONS

Rated Power: 27KW (3-phase, 380V, 50Hz).

Production Capacity: Up to 3,000 cartons/hour.

Container Compatibility: Standard cold-fill roof cartons (300ml, 500ml, 1000ml).

Air Consumption: 650L/min (7kg/cm²).

Cooling Water Requirements:

Chilled water (5°C): 22.8L/min (2.8kg/cm²).

Tap water (21°C): 4.6L/min (2.1kg/cm²).

Dimensions: 3300mm (L) × 2100mm (W) × 2300mm (H).

Weight: 3,500kg.


PRODUCT MATERIALS

Core Mechanisms: Heavy-duty steel frame with adjustable leveling feet.

Heating & Cooling Systems: High-precision electric heaters and water-cooled sealing units.

Pneumatic Components: Japanese-sourced cylinders, valves, and regulators for consistent performance.

Electrical Systems: PLC controllers, sensors, and inverters from Japan and Germany.

Drivetrain: Italian motors and precision bearings for smooth operation.


PRODUCT APPLICATION

Beverage Industry: Ideal for cold-filled juices, dairy products, and functional drinks.

Food Processing: Suitable for liquid products containing small particles (≤3mm diameter).

Packaging Solutions: Supports storage-ready cartons for extended shelf life.

Custom Production: Adaptable to diverse carton sizes and formats.


SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Roof Carton Filling Machine remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.

PRODUCT PARAMENTERS

Rated Power 27KW (3-phase 380V, 50Hz)
Production Capacity Up to 3,000 cartons/hour
Compatible Containers Standard cold-fill roof cartons (300ml, 500ml, 1,000ml)
Air Consumption 650L/min (7kg/cm²)
5°C chilled water 22.8L/min (2.8kg/cm²)
21°C tap water 4.6L/min (2.1kg/cm²)
Weight 3500KG
Dimensions 3300mm (L) × 2100mm (W) × 2300mm (H)

*It can be modified according to customer requirements.
