Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Specifications
condition :
New
weight (kg) :
50
place of origin :
Shandong, China
brand name :
YATE
warranty :
1 Year
Product name :
stainless steel filter housing
Application :
Industrial solid-liquid separation
Type :
Single bag / multiple bags
Material :
Stainless Steel 304/316
Usage :
Liquild Filter
Size :
1 bag
Name :
bag filter housing/cartridge filter housing
Working Pressure :
10 bar
Min. Filtration Precision :
0.2-200 μm

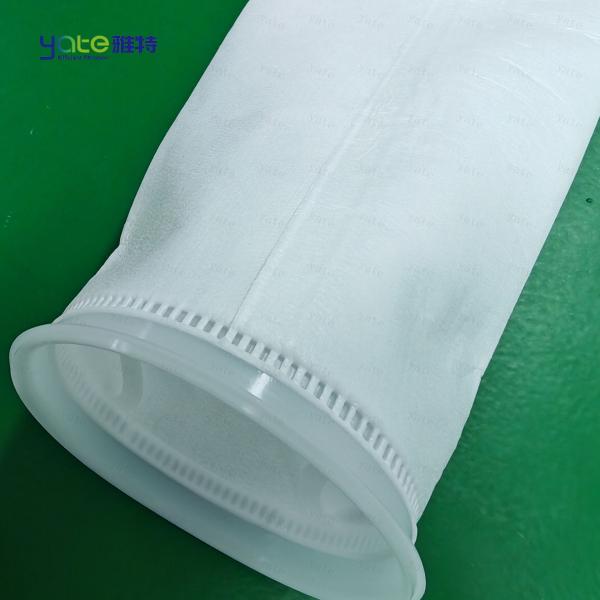

Filter Bag Material :
PP/PE/PTFE/SS
Price :
$230/sets 1-19 sets
Description
Shandong Yate has advanced automatic production equipment, sophisticated processing technology and a strict and perfect quality management system, and gathers professional technical elites and leading-level scientific and technological teams in the industry, making full use of new technologies, new processes, and new materials to ensure product stability, sturdiness and reliability. The detailed information is as follows:
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity

Application Field

Food and beverage industry: wine, beer, vodka, juice, soda filtration; Syrup, additive filtration; Oil filter
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Automotive: oil removal and filtration of electrophoretic paint; Filter varnish and finish
Electronic industry: coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration
Products Description


Advantages of industrial stainless steel bag filter

1. The bag filter can be easily and quickly switched on and off to minimize downtime. 2. Bag filter switch mechanism adopts industry-approved rocker arm suspension ring design, safe and reliable. 3. The design of the bag filter housing side into the bottom to ensure that the liquid can be completely discharged, can reduce the tangent of the height, and the pipeline installation is more convenient; 4. The design and compact size of the bag filter housing minimize the loss of liquid. 5. Industrial bag filter can be customized 1-24 bags according to user needs, material according to user material characteristics, can be designed for carbon steel, stainless steel (304, 316L) and so on.
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Model
Filter Bag#
Filter Bag
Qty
Filtration Area(m2)
Connection
Max.Flow
(m3/h)
Working Pressure(MPa)
YT-1D
1#
1
0.25
DN50
20
0.6
YT-2D
2#
1
0.5
DN50
40
0.6
YT-2P2S
2#
2
1
DN50-DN100
70
0.6
YT-3P2S
2#
3
1.5
DN80-DN100
100
0.6
YT-4P2S
2#
4
2
DN80-DN100
140
0.6
YT-5P2S
2#
5
2.5
DN80-DN100
175
0.6
YT-6P2S
2#
6
3
DN80-DN100
240
0.6
YT-7P2S
2#
7
3.5
DN80-DN100
245
0.6
YT-8P2S
2#
8
4
DN100-DN200
280
0.6
YT-10P2S
2#
10
5
DN150-DN200
350
0.6
YT-12P2S
2#
12
6
DN150-DN250
420
0.6
YT-14P2S
2#
14
7
DN200-DN250
490
0.6
YT-16P2S
2#
16
8
DN200-DN300
560
0.6
YT-18P2S
2#
18
9
DN250-DN350
630
0.6
YT-20P2S
2#
20
10
DN250-DN400
700
0.6
YT-22P2S
2#
22
11
DN300-DN450
770
0.6
YT-24P2S
2#
24
12
DN350-DN450
840
0.6
Advantages


1. Choose high-quality materials 2. Superb welding technology, strong sealing 3. Efficient filtration effect 4. Provide complete filtration solutions 5. Global real case feedback 6. Factory processing equipment and inspection equipment are complete.
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
Food Grade Tequila Brandy Wine Beer Vodka Filtration System Single / Multi Bag Filter Housing With 10 Bar Pressure Capacity
