Specifications
condition :
New
weight (kg) :
100
place of origin :
Shandong, China
brand name :
YATE
warranty :
1 Year
Particle Size :
0.5Micron
Flow Rate :
0.75gpm (2.8lpm)
Maximum pressure :
150psi
Product name :
stainless steel filter housing
Application :
Industrial solid-liquid separation
Type :
Single bag / multiple bags
Material :
Stainless Steel 304/316
Usage :
Liquild Filter
Size :
3-12 bag
Name :
bag filter housing/cartridge filter housing
Working Pressure :
10 bar
Min. Filtration Precision :
0.5-200 μm
Filter Bag Material :
PP/PE/PTFE/SS
Price :
$1,697.20/sets 1-19 sets
Description
304 316 Stainless Steel Fast Open Bag Filter Housing for Mining Water Treatment Petrochemical Plant Cold Water Circulation

Application Field

Food and beverage:wine，beer ，vodka，juice, soda filtration; Syrup, additive filtration; Oil filter
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Automotive: oil removal and filtration of electrophoretic paint; Filter varnish and finish
Electronic industry: coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products
Petrochemical industry: aviation kerosene filtration; Oil and fuel filtration
Products Description


Advantages of quick-opening stainless steel bag filter

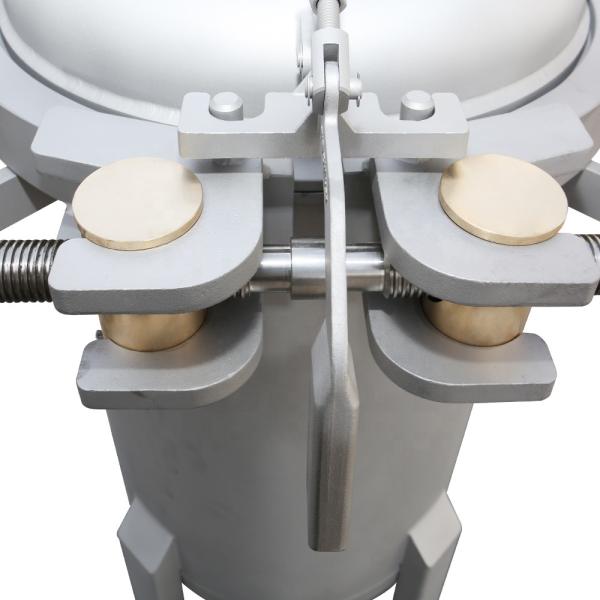

1. Handwheel fast opening design, open cover only 15 seconds, suitable for frequent change of filter bag conditions.
2.The bag filter opens up and down to save space and is suitable for working conditions with limited position. 3. The design of the bag filter housing side into the bottom to ensure that the liquid can be completely discharged, can reduce the tangent of the height, and the pipeline installation is more convenient; 4. The design and compact size of the bag filter housing minimize the loss of liquid. 5. Industrial bag filter can be customized 1-24 bags according to user needs, material according to user material characteristics, can be designed for carbon steel, stainless steel (304, 316L) and so on.
304 316 Stainless Steel Fast Open Bag Filter Housing for Mining Water Treatment Petrochemical Plant Cold Water Circulation
Model
Filter Bag#
Filter Bag
Qty
Filtration Area(m2)
Connection
Max.Flow
(m3/h)
Working Pressure(MPa)
YT-2P2S
2#
2
1
DN50-DN100
70
0.6
YT-3P2S
2#
3
1.5
DN80-DN100
100
0.6
YT-4P2S
2#
4
2
DN80-DN100
140
0.6
YT-6P2S
2#
6
3
DN80-DN100
240
0.6
YT-8P2S
2#
8
4
DN100-DN200
280
0.6
YT-10P2S
2#
10
5
DN150-DN200
350
0.6
YT-12P2S
2#
12
6
DN150-DN250
420
0.6
YT-14P2S
2#
14
7
DN200-DN250
490
0.6
YT-16P2S
2#
16
8
DN200-DN300
560
0.6
YT-18P2S
2#
18
9
DN250-DN350
630
0.6
YT-20P2S
2#
20
10
DN250-DN400
700
0.6
Advantages


1. Choose high-quality materials 2. Superb welding technology, strong sealing 3. Efficient filtration effect 4. Provide complete filtration solutions 5. Global real case feedback 6. Factory processing equipment and inspection equipment are complete.
