Explosion-Proof​ Automatic Internal Scraper Self-Cleaning Filter High Viscosity Liquid Filtration Petroleum Chemical ,Cooling Water Treatment and Pigment Filtration
Explosion-Proof​ Automatic Internal Scraper Self-Cleaning Filter High Viscosity Liquid Filtration Petroleum Chemical ,Cooling Water Treatment and Pigment Filtration
Specifications
Brand Name :
YATE
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1
Price :
$2300
Precision :
20-1000 um
Maximum Pressure :
1.25Mpa
Core Components :
Cartridge filter housing
Condition :
new
Origin :
ShanDong
Connection Standard :
Clamp , Flange ， Screw thread
Cleaningmethod :
Manual / Automatic backwash
Material :
Stainless Steel 304/316
Usage :
Viscosity Liquild Filter
Applicable Industries :
grease,paint,resin,viscose
Function :
Filtering Liquid
Description

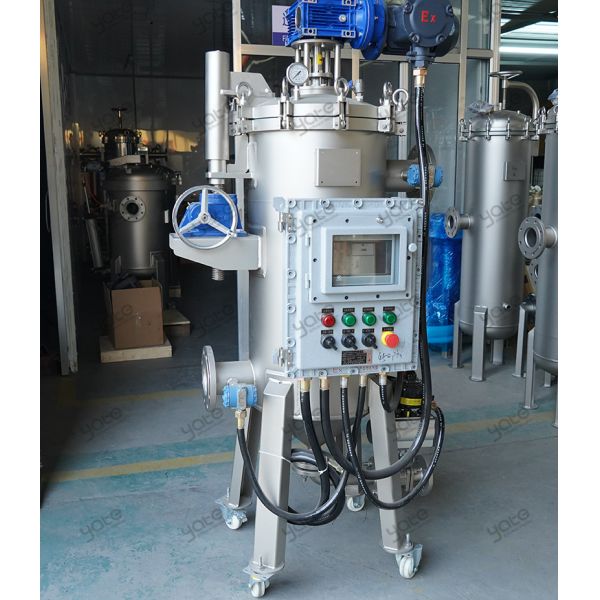

Internal Scraper Self-Cleaning Filter

The scraper type self-cleaning filter is a precision device that drives the scraper through the cylinder (reduction motor) to remove the impurities intercepted by the filter element and protect the normal operation of other equipment in the system. The water enters the self-cleaning filter body from the water inlet, which is controlled by advanced intelligence (PLC). According to the pressure difference and time, the cleaning and sewage functions can be automatically turned on, with a high degree of automation.


Working Principle:

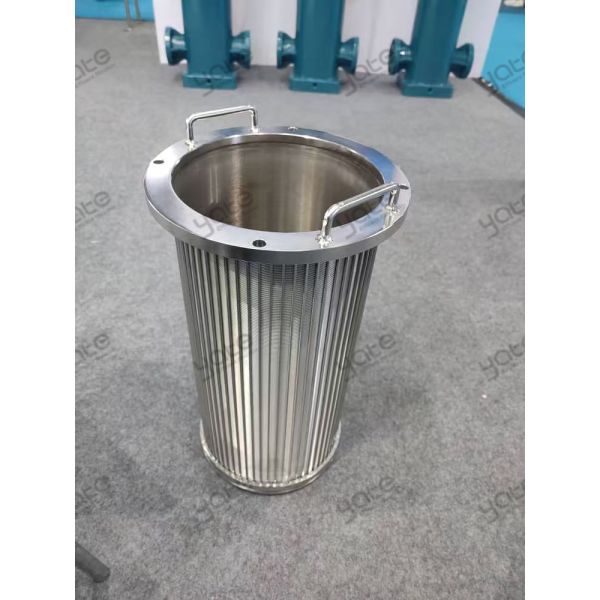

Filter:The liquid to be filtered enters the filter through the liquid inlet. During the filtration process, impurities in the water accumulate on the stainless steel filter element, and the impurities in the inner layer gradually accumulate, resulting in a pressure difference between the inside and outside sides. The pressure difference sensor monitors the difference between the water inlet and outlet. pressure change

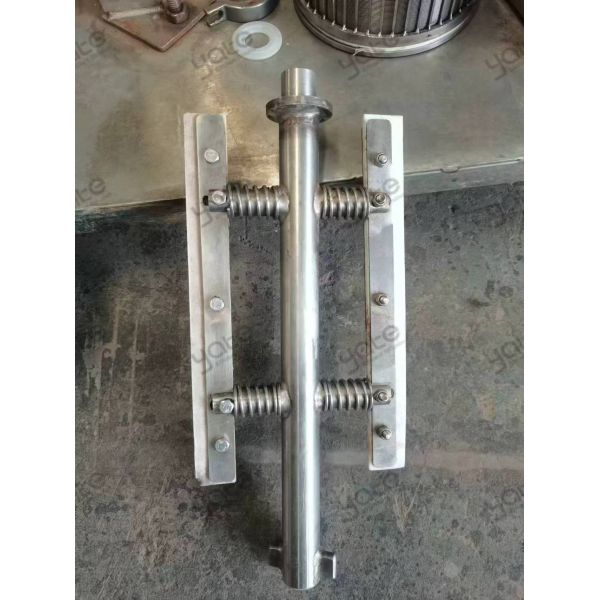

Cleaning:When the pressure difference reaches the set value, the automatic cleaning process will be started, and the electronic control system will give a signal to the cylinder (motor) to start working, driving the scraper to reciprocate (rotate) up and down to scrape impurities

Sewage:Alter a certain period of time, the blowdown valve is opened and blowdown begins. The blowdown time is set according to the amount of impurities and the value of the filtrate.


Core advantages:
✓ Dual certifications of CE in EU & ISO9001 international quality management system

✓ 20+ items utility model invention patents technology reserves
✓ Independent R&D center and professional testing laboratory
✓ Top-notch technical team in the industry
✓ Implement the highest international quality standards strictly
✓ Fully customized service solution for the whole process

Explosion-Proof​ Automatic Internal Scraper Self-Cleaning Filter High Viscosity Liquid Filtration Petroleum Chemical ,Cooling Water Treatment and Pigment Filtration

Explosion-Proof​ Automatic Internal Scraper Self-Cleaning Filter High Viscosity Liquid Filtration Petroleum Chemical ,Cooling Water Treatment and Pigment Filtration

Explosion-Proof​ Automatic Internal Scraper Self-Cleaning Filter High Viscosity Liquid Filtration Petroleum Chemical ,Cooling Water Treatment and Pigment Filtration

Explosion-Proof​ Automatic Internal Scraper Self-Cleaning Filter High Viscosity Liquid Filtration Petroleum Chemical ,Cooling Water Treatment and Pigment Filtration

Explosion-Proof​ Automatic Internal Scraper Self-Cleaning Filter High Viscosity Liquid Filtration Petroleum Chemical ,Cooling Water Treatment and Pigment Filtration

Explosion-Proof​ Automatic Internal Scraper Self-Cleaning Filter High Viscosity Liquid Filtration Petroleum Chemical ,Cooling Water Treatment and Pigment Filtration

FAQ:

Can filters be customized for specific connection sizes or requirements?

Yes. We offer customization options for inlet/outlet port sizes, housing materials, and other details to meet your production setup or local standards. Please contact us and inform us of your specific requirements, and we will provide you with a solution that meets your needs.

What certifications does the company have?

We have EU CE certification and other international system certifications, such as ISO9001, ISO45001, ISO14001 and SGS.

What industries can filters be applied to?

Our filters can be applied to oils, coatings, resins, fermentation broths, viscose, etc.

Can different filtration precisions be selected?

We have filter bags with various precisions, ranging from 20 microns to 500 microns, to meet your needs.
