Customizable High Quality Automatic Stainless Steel External Scraper Self-cleaning Filter Housing for Paint Filtration
Customizable High Quality Automatic Stainless Steel External Scraper Self-cleaning Filter Housing for Paint Filtration
Specifications
Brand Name :
YATE
Certification :
CE,ISO9001
Place of Origin :
China
MOQ :
1
Price :
Customized
Precision :
20-1000 um
Maximum Pressure :
1.25Mpa
Core Components :
Cartridge filter housing
Condition :
new
Origin :
ShanDong
Connection Standard :
Clamp , Flange ， Screw thread
Cleaningmethod :
Manual / Automatic backwash
Material :
Stainless Steel 304/316
Usage :
Viscosity Liquild Filter
Applicable Industries :
grease,paint,resin,viscose
Function :
Filtering Liquid
Max. Capacity :
10T/H, 20T/H, 30T/H
Fittings/inlet/outlet Size :
DN50, DN65, DN80, DN100
Product Type :
High Pressure Filter
Flow Rate :
customized
Description

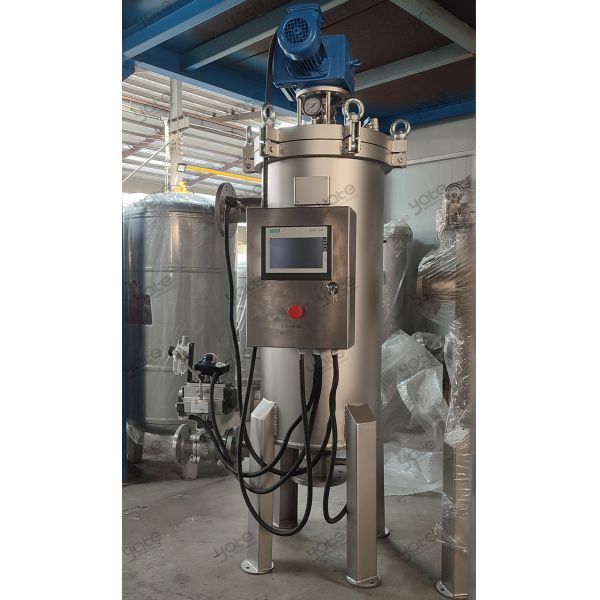

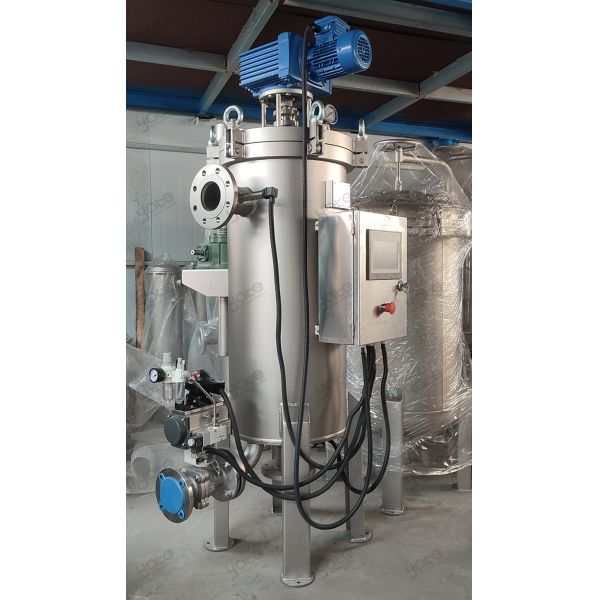

External Scraper Self-Cleaning Filter

The scraper type self-cleaning filter is a precision device that drives the scraper through the cylinder (reduction motor) to remove the impurities intercepted by the filter element and protect the normal operation of other equipment in the system. The water enters the self-cleaning filter body from the water inlet, which is controlled by advanced intelligence (PLC). According to the pressure difference and time, the cleaning and sewage functions can be automatically turned on, with a high degree of automation.

Working Principle:
Liqud from the filter inlet flow, flow from top to bottom,filter element surface flow to the outet.When a certain amount of impurites are collected on the surface of the filter element, the scraper of the motor driven assembly calibrator rotates close to the surface of the filter element to scrape off impurities, and impurities gather in the collection chamber along with the dowrward liquid. When a certain amount of impurities are accumulated, the automatic blowdown valve opens to discharge the liquid containing high concentration of impurities, and the residual liquid can be recovered or discharged.


FAQ:

Can filters be customized for specific connection sizes or requirements?

Yes. We offer customization options for inlet/outlet port sizes, housing materials, and other details to meet your production setup or local standards. Please contact us and inform us of your specific requirements, and we will provide you with a solution that meets your needs.
What certifications does the company have?
We have EU CE certification and other international system certifications, such as ISO9001, ISO45001, ISO14001 and SGS.
What industries can filters be applied to?
Our filters can be applied to oils, resins, fermentation broths,chocolate,fruit juices, viscose, etc.
Can different filtration precisions be selected?
We have filter bags with various precisions, ranging from 35 microns to 2000 microns, to meet your needs

Customizable High Quality Automatic Stainless Steel External Scraper Self-cleaning Filter Housing for Paint Filtration

Core Advantages.

•Accuracy range 35-2000 microns.

•Can handle liquids with viscosities up to 800, 000 centipoise.

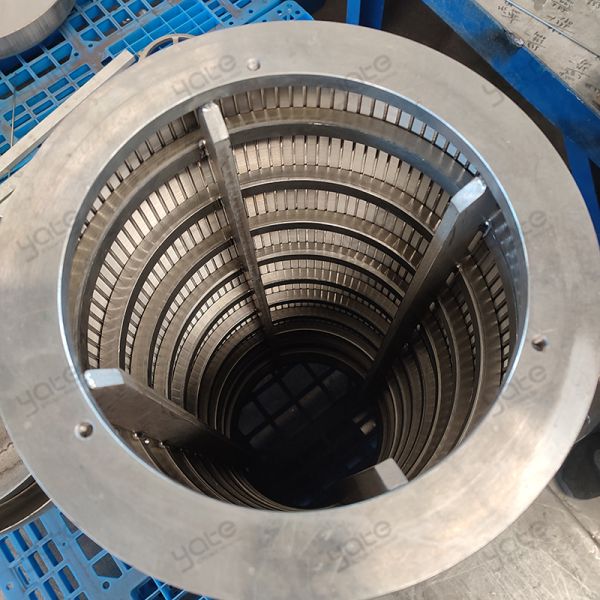

•The surface slit width is precise and the deviation is less than 5 microns.

• V-shaped gap,it is not easy to jam impurities, and maintain a stable flow for a long time.

•It can filter dificult impurites, such as sludge impurities, soft agglomerated impurites etc.

•High-strength structure, the gap will not be deformed when the pressure diference rises.

•High-strength positive and negative pressure impact.
