Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Specifications
Place of Origin :
Shandong, China
Brand Name :
YATE
MOQ :
1
Price :
$170-180
Weight :
150 kg
Material :
Stainless Steel 304/316
Working Pressure :
6 bar
Filtration Precision :
0.5-500 μm
Filter Bag Material :
PP/PE/PTFE/SS
Cylinder Diameter :
φ219-φ1300mm
Internal Filter Bag Size :
180*430/180*810/105*230/150*380/150*560mm
Inlet Connection :
clamp quick connection/flange/thread
Design Pressure :
0.8-1.6Mpa
Design Temperature :
70℃-150℃
Sealing Ring Material :
food grade silicone/fluorine rubber/EPDM/nitrile rubber
Surface Treatment :
food grade internal and external polishing
Filter Element Length :
10inch/20inch/30inch/40inch
Flow Rate :
0.5-2 tons (per 10-40 inch element)
Interface Type :
222/226 interface
Description
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter

APPLICATION OF STAINLESS STEEL BAG FILTER HOUSING

Food and beverage: beer, wine filtration; juice and soda Filtration ; Syrup, oral liquid filtration; Additives, oil filtration
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Automotive: electrophoretic paint filtration; varnishes and topcoats filtration
Electronics industry: lithium battery coolant filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products; Chemical auxiliary filtration
Petrochemical industry: aviation kerosene filtration; Diesel and fuel filtration ；graphene, ink filtration
Specifications Data

Core Advantages

*Excellent filtration efficiency: Precision-designed filter elements can effectively intercept impurity particles as small as microns, ensuring the high purity and clarity of the output liquid, meeting the strict requirements of food, medicine, chemical, electronics and other industries for liquid quality.
*Efficient and energy-saving: The optimized fluid channel design reduces fluid resistance, improves filtration efficiency, and reduces energy consumption, helping enterprises achieve green production.
*Wide Applicability: Suitable for filtering a variety of liquid media, including but not limited to water, oil, chemical solutions, etc., to meet the filtering needs of different industries and different processes.

Core Advantages

*Easy to clean and maintain: The unique detachable structure design makes cleaning and replacing the filter element easy and quick, reducing downtime and improving production efficiency. At the same time, it supports backwashing function to further extend the service life of the filter element.

*Safety and Sanitation: Made of all stainless steel, non-toxic and harmless, with a smooth and easy-to-clean surface, it complies
with international health standards such as GMP and FDA to ensure product safety and pollution-free.
Products Details
Bag Filter Bag+Filter Bag
Filter
material
Cylinder diameter
φ219-φ1300mm
Material
304/316/2205, etc.
Internal filter bag size
180*430/180*810/105*230/150*380/150*560mm, etc.
Internal filter bag filtration accuracy
0.2-200 microns
Inlet and outlet connection method
clamp quick connection/flange/thread
Design pressure
0.8-1.6Mpa
Design temperature
70℃-150℃ (depending on the temperature resistance of the internally installed filter bag)
Sealing ring material
food grade silicone/fluorine rubber/EPDM/nitrile rubber
Surface treatment
food grade internal and external polishing/internal grinding and external sandblasting (customized according to your requirements)
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Cartridge Filter Housing +Filter Element
Filter
material
Cylinder diameter
φ102-φ350mm
Material
304/316/2205, etc.
Internal filter bag size
10inch/20inch/30inch/40inch, etc.
Internal filter bag filtration accuracy
0.1-100 microns
Inlet and outlet connection method
clamp quick connection/flange/thread
Design pressure
0.6-0.8Mpa
Design temperature
70℃-150℃ (depending on the temperature resistance of the internally installed filter bag)
Sealing ring material
food grade silicone/fluorine rubber/EPDM/nitrile rubber
Surface treatment
food grade internal and external polishing
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Filter Material Performance Table
product Name
strong acid
weak acid
strong
alkali
weak base
oils and fats
aromatic
alcohol ethers
organic solvent
polyester
(PE)
√
√
√
√
√
polypropylene
(PP)
√
√
√
√
√
√
√
nylon
(NMO)
√
√
√
√
√
teflonethene
(PTFE)
√
√
√
√
√
√
√
√
Product Description
The YATE brand has two factories, one is the filter housing manufacturing factory, and the other is the filter element and filter bag manufacturing factory, which can meet your filtering requirements and provide you with a complete filtering solution. We use advanced production technology and sophisticated equipment, and strictly control every process. From material selection to production and packaging, every link strives for perfection to ensure that every detail of the filter housing and filter bag and filter element meets high quality requirements. Please see the introduction below.
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter

Removable filter set

As you can see in the picture above, the movable filter set can be combined in different ways:
1. Material: 304 stainless steel, 316 stainless steel, 2205 stainless steel, etc. 2. Single bag filter + pump + trolley + filter bag 3. Multi-bag filter + pump + trolley + filter bag 4. Core filter + pump + trolley + filter element 5. Bag filter housing + cartridge filter + trolley + pump + filter bag + filter element And so on, there are many different combinations. If you need a fully automatic production line and want me to give you a fully automatic filter, you can also combine and install it. I can match different solutions for you according to your requirements.
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter

This is Filter Bag

Regarding the filter bag, you can buy it separately or you can match it with the filter.
Filter bags are made of different materials: PP material/PE material/nylon material/PTFE material/oil absorption filter bag, etc.
Filter accuracy: 0.2 micron/0.5 micron/1 micron/5 micron/10 micron/15 micron/20 micron/25 micron/50 micron/75 micron/100 micron/150 micron/200 micron options
Ring: stainless steel and plastic ring
Production environment: Aseptic workshop, filter bags produced by fully automatic production line meet food grade requirements, you can watch the video
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter

Bag Filter Housing

There are different specifications for bag filters: 1-bag filter, 2-bag filter, 3-bag filter, 4-bag filter to 24-bag filter
Design pressure: 0.6Mpa-1.6Mpa Design temperature: 75-220 degrees Celsius Flow rate: Different specifications are provided for you according to your flow rate Material: 304 stainless steel, 316 stainless steel, 2205 stainless steel, etc. Surface treatment: sandblasting or polishing You can see that the top of the filter adopts the rocker arm opening method, which makes the filter more convenient and quick when using or maintaining it.
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter

Professional customization, considerate service

Internal structure of bag filter: Internal surface treatment: It can be polishing liquid or sandblasting, made for you according to your requirements The picture shows the internal picture of a three-bag filter. A three-bag filter means that three filter bags can be installed inside the filter.
Spring pressure piece: The function of the spring pressure piece is to fix the filter bag and make it seal. The spring pressure piece makes the force more uniform and will not cause the risk of leakage.
Top inlet: You can see there is a small hole next to the three filter bag installation ports. This is where the unfiltered liquid flows into the filter. The liquid enters the filter evenly from the top, and the distribution is more even, making the update and maintenance of the filter bag more convenient.
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter

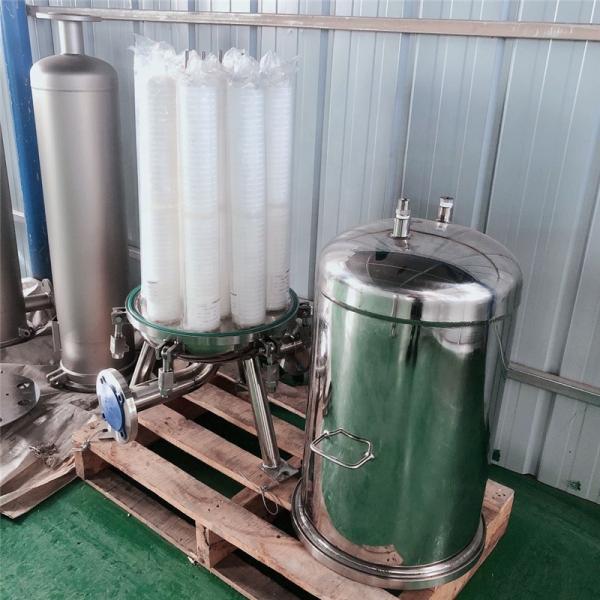

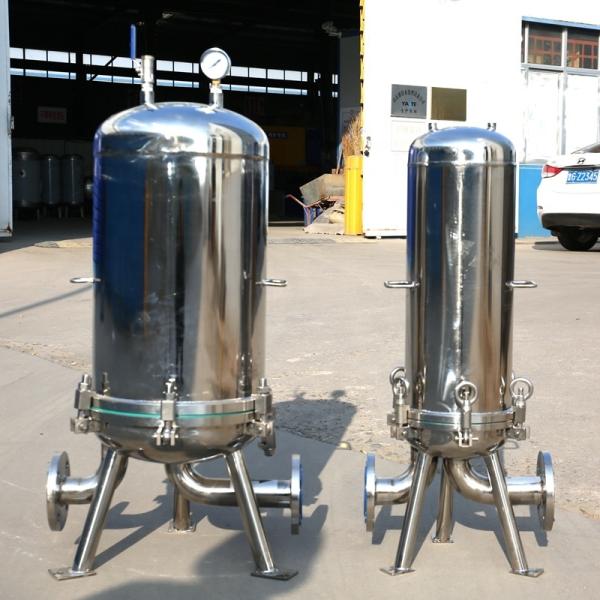

Microporous filter housing

In the picture you can clearly see that the filter has different specifications and the number of filter elements that can be installed inside: 1 core/3 cores/5 cores/7 cores/9 cores/11 cores, etc. The flow rate is different for different numbers of filter elements, so I will match it for you according to your flow requirements.
Inside the filter: You can install filter elements of different specifications, 10 inches long, 20 inches long, 30 inches long, 40 inches long filter elements, according to your requirements for you to match
Surface treatment: internal and external polishing
Professional engineers: We have a strong team to provide you with services. Among them, professional engineers will help you solve the filtering problems you encounter, and can draw professional drawings for you when we start formal cooperation, so that you can install the filter correctly when it reaches your hands.
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter

Professional customization, considerate service

In the picture above, you can clearly see how the pleated filter element is installed inside the filter. There are two ways to connect the filter housing and the filter element. One is the 222 interface and the other is the 226 interface. We can match different filter elements for you, and we can also make different filters for you according to your filter element interface.
Filtration accuracy: The minimum filtration accuracy can reach 0.1 micron Material: PP material/PTFE material/PES material, etc. Flow rate: The flow rate of each 10-inch filter element is 0.5 tons, the flow rate of 20 inches is 1 ton, the flow rate of 30 inches is 1.5 tons, and the flow rate of 40 inches is 2 tons. This is the flow rate of pure water tested under ideal conditions. The flow rate will produce different flow rates according to the different properties of the liquid. You can use it as a reference

What I want to say to you

We have two professional factories and a professional team with 12 years of experience. We have a very complete system for pre-sales, sales and after-sales services. If you want to know more, you can contact me directly and I will provide you with more information and show you my factory.
Laboratory Testing Equipment
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Olympus Spectrum Analyzer
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Ultrasonic Thickness Gauge
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Ultrasonic flaw detector
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Ultrasonic Thickness Gauge
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Water pressure test
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Water pressure test
Company Profile, Showroom and Certificates
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
Stainless Steel 304/316 Filter Housing 6 Bar 0.5-500 μm Wine Filter
