UPS Commercial Backup Power Supply Zero Transfer Time 10kva Tower
UPS Commercial Backup Power Supply Zero Transfer Time 10kva Tower
UPS Commercial Backup Power Supply Zero Transfer Time 10kva Tower
UPS Commercial Backup Power Supply Zero Transfer Time 10kva Tower
Specifications
Brand Name :
J-ENERGIZE
Model Number :
JET-HT11 10K
Place of Origin :
XIAN, CHINA
MOQ :
1 Unit
Payment Terms :
L/C, T/T
Delivery Time :
Negotiable
Packaging Details :
Carton
Product name :
Uninterrupted Power Supply,10kVA UPS
Nominal Capacity :
10KVA / 8KW
AC Input Bypass Voltage :
80VAC × (1±5%) ~ 285VAC × (1±5%)
AC Input Voltage Range :
120~275VAC ±5
Weight :
19.5 KGS
Waveform :
True sine wave
Overload Cap. :
105~125% Bypass after 1mins
Application :
small enterprise, medium enterprise, small data center, server room, network, communication, automatic control system
Battery type :
built-in battery
Transfer time :
0 ms,Zero Conversion
Protection :
Overvoltage,Unbalanced Loads,Short Circuit,Overcurrent
Description

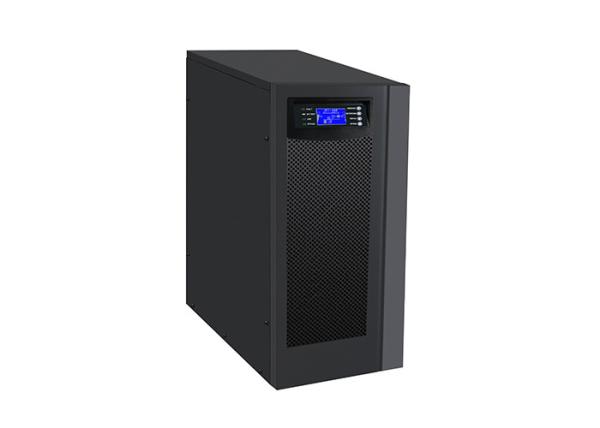

HT11 10K 10kva Tower UPS Uniterruptible Power Supply Zero Transfer Time

JET-HT11 10K Online High-Frequency UPS

10KVA

1/1 Phase

Power Factor 0.8

6-10KVA Online High-Frequency UPS, has tower and rack installation. It is an ideal power supply solution for small capacity scenes based on online dual transform technology, which can eliminate all kinds of power grid problems. The battery is built in the standard machine.

Such as Model HT11 10K, is 10KVA tower type UPS, 1 / 1 Phase, built-in battery, with power factor 0.8. As we known, grid is not stable, if UPS conversion time is zero, that is more security and reliable.

JET-HT11 series is applied in servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.

Key Features

1, A very wide range of input voltage and frequency, even in remote parts of electric power environment is very bad to normal power supply, reduce the number of battery discharge, improve the service life of the battery.

2, Double conversion design, Zero transfer/complete isolation of input AC.

3, Advanced DSP numerical control technology application, the performance of UPS is more stable, more superior quality.

4, True sine-wave output with less than 3% THD.

5, Microprocessor control ensures high reliability

6, The load power factor is 0.8.

7, Wide input voltage range and frequency range fit to harsh power grid condition.

HT11 10K Specifications

Model

technical parameters

10K 10KL (R)
Nominal Capacity 10KVA / 8KW
Nominal Voltage 220VAC
AC Input Nominal Frequency 50Hz
Voltage Range 120~275VAC ±5
Frequency Range 45~55Hz ±0.5Hz
Bypass Voltage 80VAC × (1±5%) ~ 285VAC × (1±5%)
Battery Input Battery Pack 192VDC (Optional up to 240V)
Batteries Capacity &Qty 12VDC x 16 (Optional up to 20 sets)
Charging Current 4A
AC Output Voltage 220VAC ±1% (Invert Output)
Frequency 46~54Hz (Normal AC Input) 50Hz ±1% (Abnormal AC Input)
Wave Form THD<3% (Linear Load) Sine Wave, THD<8% (Non-Linear Load)
Power Factor 0.8
Overload Cap. 105~125% Bypass after 1mins
Communication & Monitoring Function RS232, dry contact
Tower Type Weight (kgs) 59 19.5
Dimension (W x H x D) (mm) 248×620×500 248×460×500
Rack Type Weight (kgs) 19.5 19.5
Dimension (W x H x D) (mm) 640×130×440 640×130×440

Remark: 10KVA UPS also has rack mount installation model, the differences are list as above.

Models:

H: High-frequency

T: Tower type

R: Rack type

L: Long run machine
