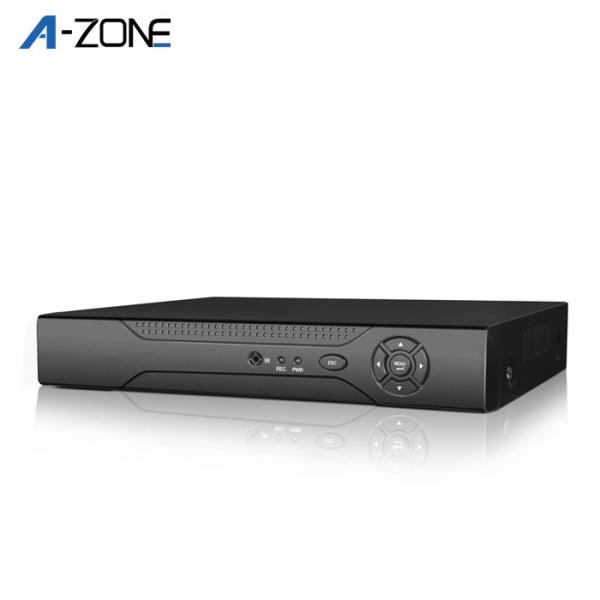

1080P Mini Hd Network Nvr 16 Channel DVR 2MP Surveillance For AHD Camera
1080P Mini Hd Network Nvr 16 Channel DVR 2MP Surveillance For AHD Camera
1080P Mini Hd Network Nvr 16 Channel DVR 2MP Surveillance For AHD Camera
1080P Mini Hd Network Nvr 16 Channel DVR 2MP Surveillance For AHD Camera
Specifications
Brand Name :
A-ZONE
Model Number :
AZ-5-in-1 dvr
Certification :
CE、FC、ROHS、IP66
Place of Origin :
shenzhen
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000pcs/M
Delivery Time :
depends on quantity
Packaging Details :
customized fashion box
product name :
5-in-1 dvr
Resolution :
1080P
Main Processor :
Embedded processor
Power supply :
DC12V
Operating System :
Embedded LINUX
Video Output :
1 HDMI,1VGA,1BNC
Description

Mini DVR And NVR 2MP AHD 1080P CCTV DVR Surveillance For AHD Camera

feature:

1. HD H.264 5-IN-1 AHD/CVI/TVI/IPC DVR

2. P2P Plug & Play , Support long-distance surveillance

3. User friendly graphic interface

4. Support iphone, Android windows mobile, PC etc.

5. Support 1pcs *SATA HDD (Max.6TB)

6. QR Code scan sep up. Anytime & anywhere remote viewing live demo and playback.

our company:

Tollar security equipment co.,ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.

Main Processor Embedded processor
Operating System Embedded LINUX
Standard NTSC(525Line,60f/s),PAL(625Line,50f/s)
Video Input 4ch BNC / 1 ch IP Cable 8ch BNC / 1 ch IP Cable 16ch , / 1 ch IP Cable
Video Output 1 HDMI,1VGA,1BNC
Audio Input 1 channel or 2 channel
Audio Output 1 channel or 2 channel
Display &Redording
Resolution 1920*1080,1280*1024,1280*720,1024*768,800*600
Display Split 1/4/8/9 1280*1024,20
Privacy Masking 4 rectangular zones(each camera)
OSD Camera title,Time,Video loss,Camera lock,Motion detection,Recording
Video &Audio Compression H.264/G.711
Recording Resolution

1080P (1920*1080/1280*600)/960h(960*576/960*480)/D1/4CIF(704*576/704*480)/

CIF(352*288/352*240)/QCIF(176*144/176*120)
Record Rate Main stream :1080P /960P/720P/960H/D1/HD1/2CIF/CIF(1-25/30fps)
Extra Stream :CIF/QCIF(1-25/30fps)
Bit Rate 48-6144kb/s
Record Mode Manual,Schedule(Regular(continuous),MD),Stop
Record Interval 1-120min(default;60min),Pre-record;1-30sec,Post-record:10-300
Fuctions
Trigger Events Recording,PTZ,Tour,Video Push,Email,FTP,Spot,Buzzer&Screen
Video Detection Video Detection,Motion Detection,MD Zones:396(22/8),Video loss&camera Blank
Alarm Input 4 /8/16 channel
Sync Playback 1/ 4 /8 optional
Search Mode Time/Date,MD&Exact search(accurate to second)
Playback fuctions Play,Pause,Stop,Rewind,Fast play,Slow play,Next file,Previous file,Next camera,Previous camera,Full screen,Repeat,Shuffle,Backup selection
Backup Mode USB Device/network
Network&storage
Network Ethernet RJ-45 port(10/100M/1000M)
Network Functions PPPOE,DDNS,FTP,IP Fiter
Smart Phone iphone,ipad,Android,Windows,Phone
HDD 1 OR 2 SATA port, up to 64TB
General
Power supply DC12V
Power comsuption 10W(without HDD)
Workinig Environment -/10%~+90%RH / 86~106kpa
Demension 250*45*235mm ( reference only )
