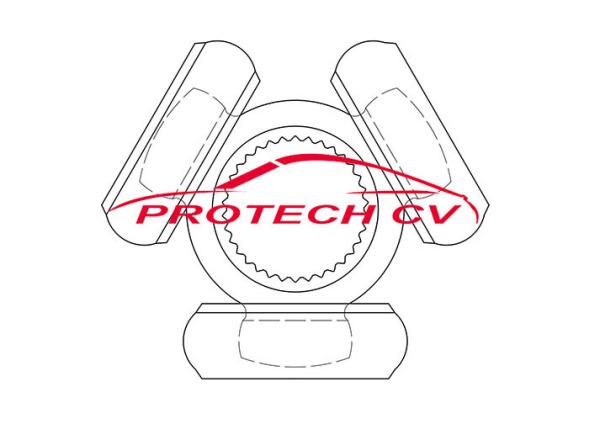

20Cr Steel CV Joint Tripod Heavy Duty AAR CV Joint Inner Tripod
20Cr Steel CV Joint Tripod Heavy Duty AAR CV Joint Inner Tripod
Specifications
Brand Name :
protech CV
Model Number :
T08-3422
Certification :
TS16949
Place of Origin :
china
MOQ :
200
Price :
$1-$5
Payment Terms :
FOB
Supply Ability :
100000
Delivery Time :
30 days
Packaging Details :
paper box 5*20*20
Material :
55# Or 20CrMnTi Steel, High Quality Heat-treatment
Design :
100% Match OE Sample , General Design To Make Axle Simple
Technology 1# :
Cold Forging Joint Housing
Technology 2# :
Joint All Grinding, Check Each Tripod To Make It 100% Match Inner Joint
Boot :
TPEE Boot Can Resist Lowest Temperature -40 ℃, And Highest Temperature 160 ℃
Clamp :
Heavy Duty Clamp, OE Steel
Customized Service :
Provide Modified Car And Race Car Customization Services
Process :
Factory Whole Industry Process, Better Quality Control
HD Axle :
EXTREME Weather Unit Axle
Description
the low plunging resistance and low axial forces of the AAR.Tripod deliver additional NVH refinement, making it appropriate for high working angles. It has a maximum articulation angle of 26 degrees. use carburizing Heat treatment technology, the depth of hardness 0.8-1.2mm, hardness of surface 58-62 HRC, the heart of tripod hardness 34-44 HRC, flatness limited 0.04mm, the perpendicularity tolerance of splines limited 0.04mm.
Good quality of stangth.
20Cr Steel CV Joint Tripod Heavy Duty AAR CV Joint Inner Tripod20Cr Steel CV Joint Tripod Heavy Duty AAR CV Joint Inner Tripod20Cr Steel CV Joint Tripod Heavy Duty AAR CV Joint Inner Tripod
