Specifications
Brand Name :
AST
Model Number :
SK96-D190
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
5-8 working days
Name :
4 axis L board clamping tool
Material :
steel
size :
D190*227mm
Repeatability :
within 0.005mm
features :
flexible exchange quickly
OEM :
support
Description

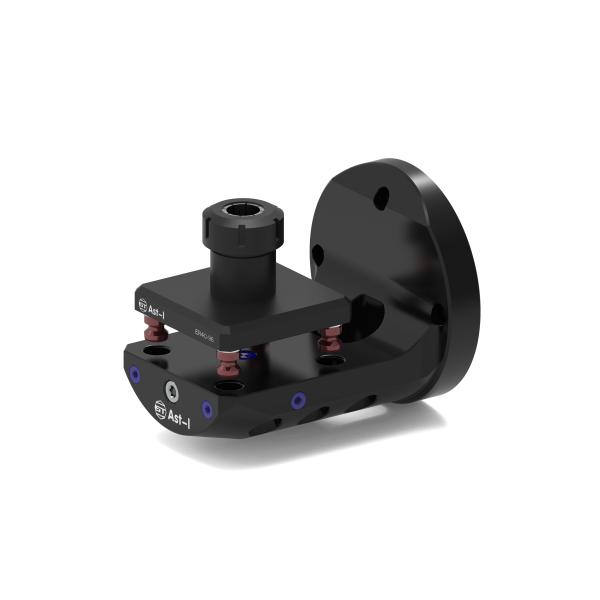

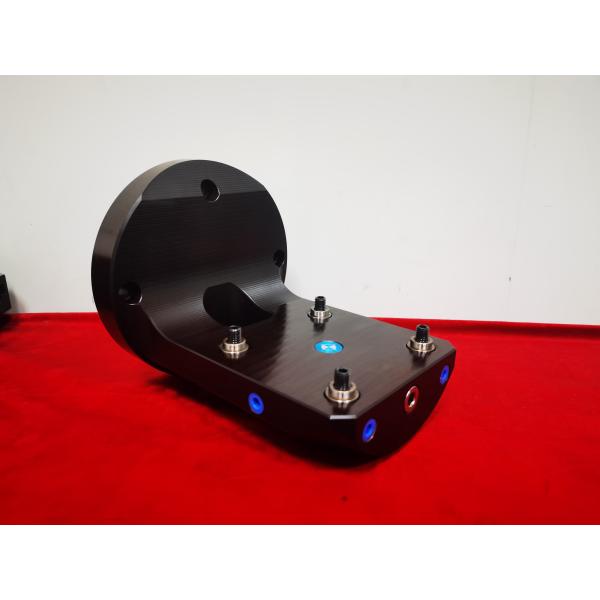

CNC Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis CNC Machining
Product Overview

The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables when using clamps for this purpose.

Key Features
  • The Quick•Point 96 variant is popular as an interface on pallet automations or customized clamping fixtures
  • Mounting holes are suitable for the Quick•Point riser made of aluminum, improving accessibility for 5-sided machining
  • Eliminates need for disassembly and calibration time
  • Maximizes changeout efficiency with zero point quick exchange system
Technical Specifications
Size D190*227
Repeat position 0.005mm
Locking force 22KN (4pcs pull stud)
Material Steel
Weight 13.00Kg
Product Images
Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining Cnc Small Machining Fixture Clamps Zero Point Positioning Manual For 4 Axis Cnc Machining
