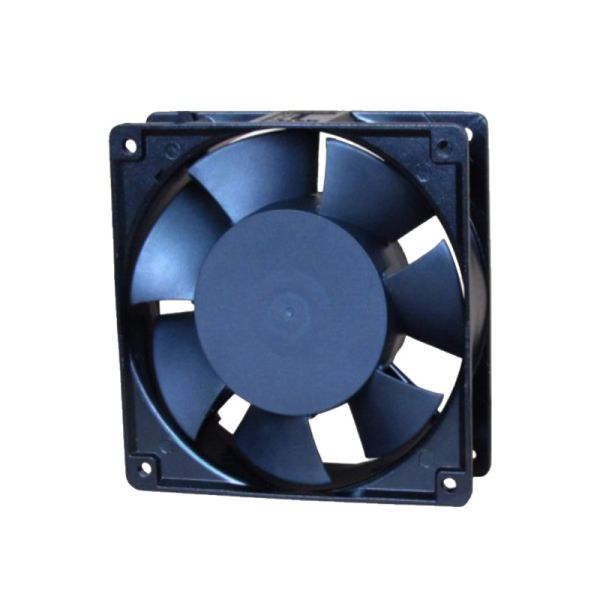

110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
Specifications
customized support :
OEM, ODM
mounting type :
Free Standing
blade material :
Plastic
Place of Origin :
Guangdong, China
Brand Name :
OEM
Model Number :
12038
Voltage :
05V-24V
warranty :
1 Year
after-sales service provided :
Video Technical Support
Power Source :
Electric
bearing type :
Ball Bearing
Type :
Axial Fan
Material :
PBT
Size :
120x120x38mm
Name :
220v ac fan
Bearing Type :
Dual Ball Bearing
Item :
Cooing Fans
Application :
Air Purifier
Keyword :
Silent Fan
Motor :
100% Copper Motor
Function :
Waterproof
Usage :
Air Cooling System
MOQ :
1 piece
Price :
$3.20-5 / piece
Description
12cm 220v Ac 120x120x38mm 12038 19w 2950rpm Refrigerator High Temperature Cabinet Axial Panel Heater Cooling Fan

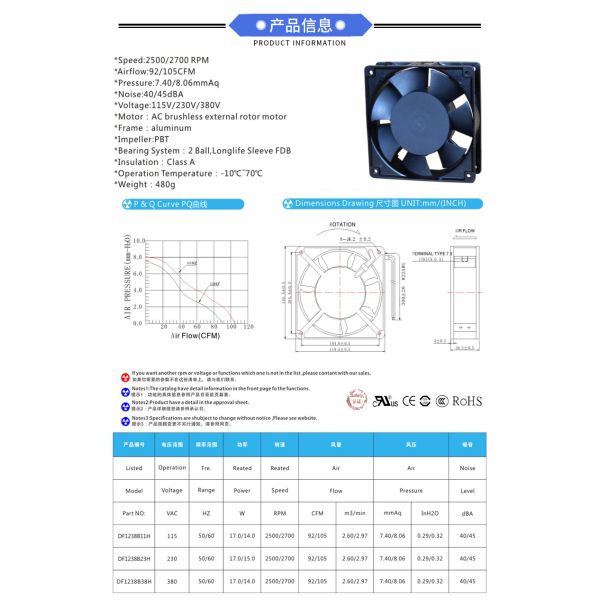

Products Description
Speed
2500-2700 RPM
Airflow
92- 105 CFM
Pressure
77.40- 8.06mmAq
Noise
40- 45dBA
Voltage
115V/ 230V/ 380V
Motor
DC Brushless external rotor motor
Frame
Aluminum
Impeller
PBT
Bearing System
2 Ball, Longlife Sleeve, FDB
Insulation
Class A
Operation Temperture
-10℃ - 70℃
Weight
480g
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
R&D Reliability Equipment
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
Quality Control:
1.Incoming quality control
2.In process quality control
3.QA Inspection
4.100% testing before the packing.
Company Profile
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
Dongguan XinBinMing Cooling Fan Co., Ltd., a manufacturer which is always focusing on the R&D, production and selling the cooling fans.
We passed the ISO9001, IATF16949, the products passed UL, RoHS, TUV, CE, SGS, CCC certificates. Our products are widely used in automobile, power supply, home appliances, medical treatment, communication all over the world.
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
Services:
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give warranty on quality of products, and will give you solution if any quality problems occurs when you receive our items.
Certifications
We passed the ISO9001, IATF16949, the products passed UL, RoHS, CUL, TUV, CE, SGS, CCC certificates
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
Our Cooling fan accessories advantage:
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
Application
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
Workshop Show
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
110v 220v 230v High Airflow Cooler Motor 120x120x38mm Ac Axial Cooling Fans 12038
FAQ
1. Do you customized cooling fans?
Yes, Cooling fans can be customized base on your requirement.
2. How do you guarantee the quality of products?
We use selected raw materials, strict production methods, and 100% inspection and certification before leaving the factory to ensure that the goods received by customers are consistent with our description.
3. How many kinds of bearings do you have for cooling fans?
We have sleeve bearings, hydraulic sleeve bearings and double ball bearings. The service life of sleeve fan is 25000 hours, that of hydraulic sleeve bearing is 30000 hours, and that of ball bearing is 50000 hours.
4. What kind of cooling fans can your company provide?
We can provide DC/AC brushless fans, which are mainly divided into three categories: axial flow fans, blowers (centrifugal fans) and cross flow fans (tangential fans).
5. What functions can the fan choose?
Optional functions: automatic restart, speed detection, shutdown alarm, waterproof (IP68 optional), PWM function, temperature control, etc.
7. How to select a DC fan?
To choose a DC fan, you should consider the following points: Fan size (mm), Fan speed (RPM), Fan airflow (CFM), Fan noise level (DBA), Fan starting voltage (V), Fan current (a ), Fan connector.

Please feel free to contact us if any confuse, we always on your service!
