Specifications
Brand Name :
FARMNET
Model Number :
FISMART-A
Place of Origin :
China
MOQ :
1 piece
Price :
$6003-6857
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
25-30 days
Packaging Details :
Our export packing : 1. Steel (bundling and packaging) 2. Equipment, spare parts (wooden cases, carton packaging) 3. PC sheet, glass, film, and other independent packaging
Application :
Fertilizer Spreader
Power(w) :
2.2KW
Dimension(l*w*h) :
911*905*1438 mm
Power supply :
380V AC 50HZ
Inlet and outlet :
DN40
Fertilizer Machine Networking :
WIFI/WAN/4G
Human Machine Interface :
10 inch capacitive touch screen
EC/PH sensor :
Standard single channel EC/PH
Fertilizer injection channel :
2 fertilizer 1 acid (standard) Maximum 4 channels
Description
Fismart-A High Precision Automated Smart EC PH Sensor PWM Bypass Fertilizer Dosing System Spreader Fertilizer Machine Farming

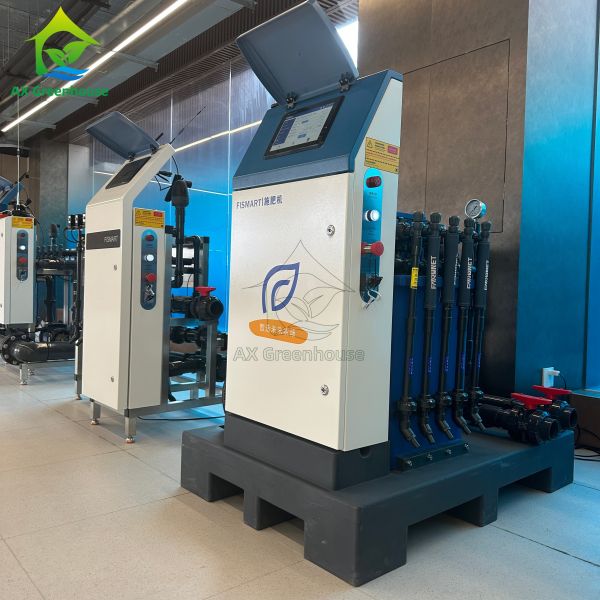

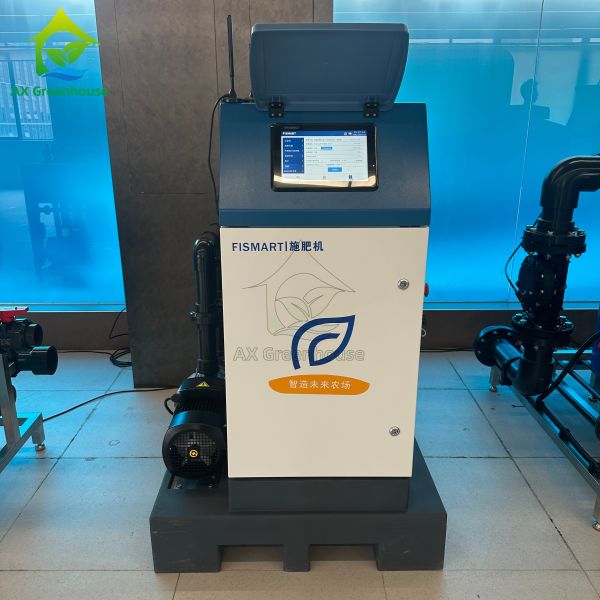

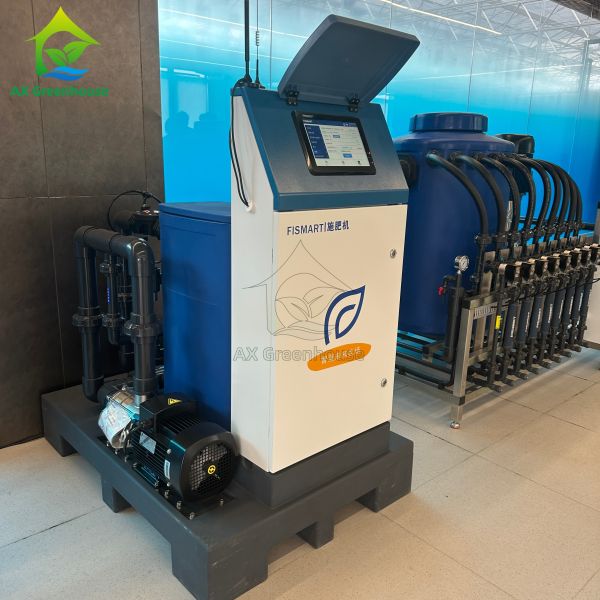

FISMART-A

FISMART-A is loved by a wide range of growers due to its ultra-high cost effectiveness.

A newly designed operating system allows every use to efficiently and safely complete irrigation and fertilization through the simplest and most intelligent operations.

Equipped with high-precision EC and PH sensors for accurate measurement.

By using OWM modulation technology,we can perfectly control the fertilizer absorption ratio and ensure precise fertilizer distribution,making us a trustworthy production partner.

Upgraded Protection, Strong And Durable

As an agricultural production tool, strongness is extremely important. FISMART-A adopts 304 stainless steel material and robot welding technology, and the overall structural strength is extremely high, acid-resistant and corrosion-resistant.

Intelligent Perception Of Precise Fertilizer Distribution, A Reliable Production Tool

Equipped with high-precision EC and PH sensors for accurate measurement. Through PWM modulation technology, it perfectly controls the fertilizer absorption ratio and ensures accurate fertilizer distribution. It is a production partner worthy of complete trust.

Flexible Response To Multiple Valve Control Modes

Can be connected to three types of valve controllers: multi-line and bus wireless, and can be configured and combined at will to easily cope with valve control.

Internet Of Things Support, Support Remote Control

FISMART-A supports multiple ways of networking, WIFI/WAN/4G are all available. Remote control through mobile phone APP, even if you are far away, it is close at hand.

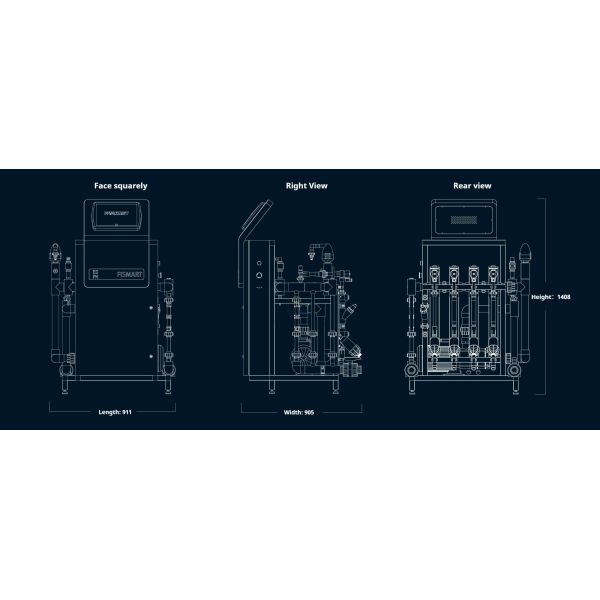

Size 911mm* 905mm* 1438mm
Weight 129Kg
Power Supply 380V AC 50Hz
Power 2.2KW
Inlet And Outlet DN40
Type Bypass

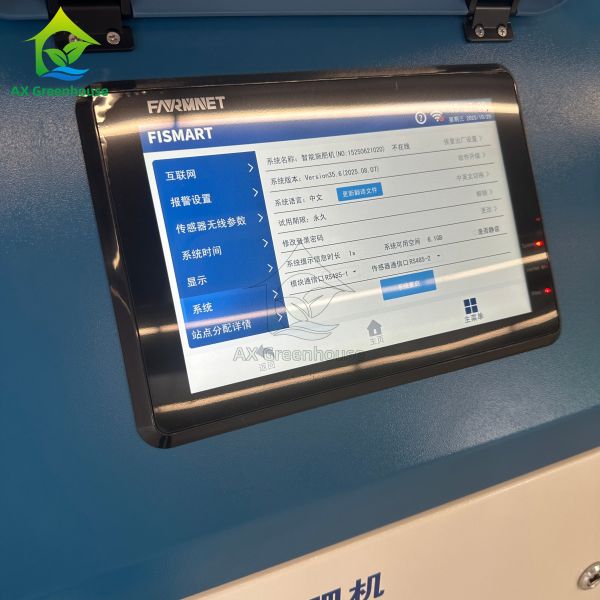

Human-machine Interface 10-inch capacitive touch screen
Pump (P/Q/H) Lingxiao (2.2KW/8m3/48m)
EC Pre-control No
EC/PH Sensor Standard single-channel EC/PH
Inverter No
Water Supply Pump External
Flowmeter Clip flowmeter
Stabilization Time 60s
Fertilizer Distribution Accuracy ±0.1ms/cm
Pipeline Pressure ＜6.0bar
Fertilizer Distribution Method EC/PH automatic adjustment or proportional adjustment, each channel can set the fertilizer absorption ratio
