TLOF Solar Airfield Light Taxiway Edge FATO Aiming Point Steady
TLOF Solar Airfield Light Taxiway Edge FATO Aiming Point Steady
TLOF Solar Airfield Light Taxiway Edge FATO Aiming Point Steady
TLOF Solar Airfield Light Taxiway Edge FATO Aiming Point Steady
Specifications
Certification :
ICAO CE
Packaging Details :
carton
Horizontal Output(degrees) :
360
Delivery Time :
3-15 work days
Operation Mode :
24hours working after switched ON
MOQ :
1
Available Colors :
Red, Green, Yellow, White, Blue
Payment Terms :
T/T, Western Union,
Brand Name :
ANNHUNG
Vertical Divergence(degrees) :
≥8
Model Number :
AH-SA-B
Flash Characteristics :
Steady(Flashing mode is optional)
Place of Origin :
China
Light Source :
LED
Description

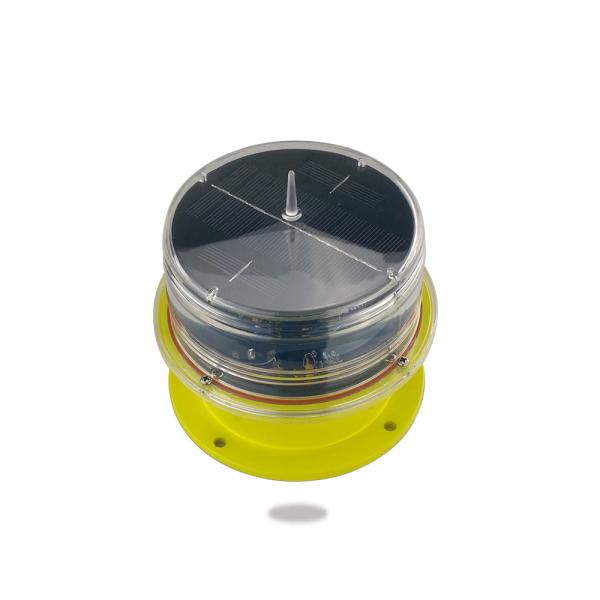

AH-SA-B Solar Airfield Light

AH-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA-B.

Fragile coupling need to be paid separately if needed.

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.

FAA AC 150/5390-2B Heliport Design Guide

CAP 437

Features

Electrical

LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

Physical

Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).

PC housing,UV resistance, shockproof and corrosion proof.

Bird deterrent spike

Powder coated die casting aluminum base

Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon

System design

ON/OFF button interface located under base

Optional

External battery charger for 110-240vac charging

Wireless remote control

Carry case for batch of lights

NVG - compatible infrared (IR) LED

Installation bracket

Application

Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting

Helipad taxiway

Emergency operations

Description Parameter

Lamb Body Material

Aluminum Alloy

Base Material

Powder-coated Die-casting aluminum

Mounting

140×140×M6

Dimension(mm)

162×162×160

Weight(kg)

 1

Product Life Expectancy

≥10 years

Ambient Temperature(℃)

-55~70

Humidity

-0~100

Wind Speed

80m/s

Waterproof

IP68

FAA

AC 150/5390-2B Heliport Design Guide
