IALA LED Marine Lantern Selfcontained GPS Sync Flashing Mono Crystalline
IALA LED Marine Lantern Selfcontained GPS Sync Flashing Mono Crystalline
IALA LED Marine Lantern Selfcontained GPS Sync Flashing Mono Crystalline
IALA LED Marine Lantern Selfcontained GPS Sync Flashing Mono Crystalline
Specifications
Weight(kg) :
2
Certification :
ICAO CE
Dimension(mm) :
220×220×233
Payment Terms :
T/T, Western Union
Available Colors :
Red, Green, Yellow, White, Blue
Model Number :
AH-LS-C1
MOQ :
1
Place of Origin :
China
Delivery Time :
7-15 work days
Packaging Details :
carton
Brand Name :
ANNHUNG
Supply Ability :
2000Pieces for one month
Base Material :
Powder-coated Die-casting aluminum
Mounting(mm) :
190×190×Φ12
Body Material :
UV protected Polycarbonate
Description

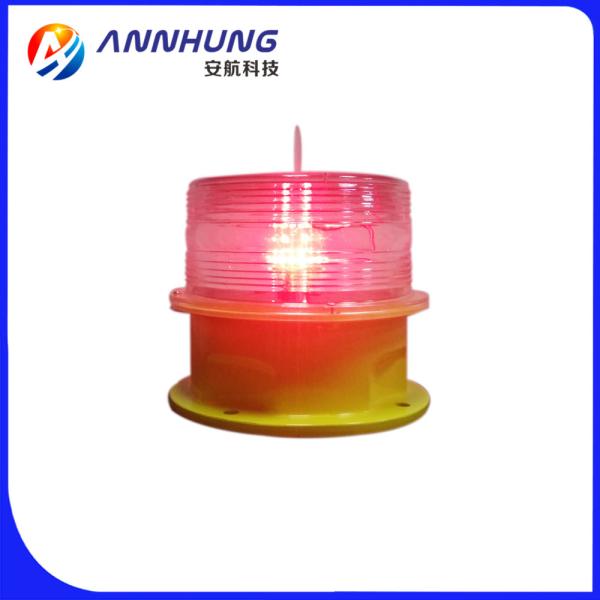

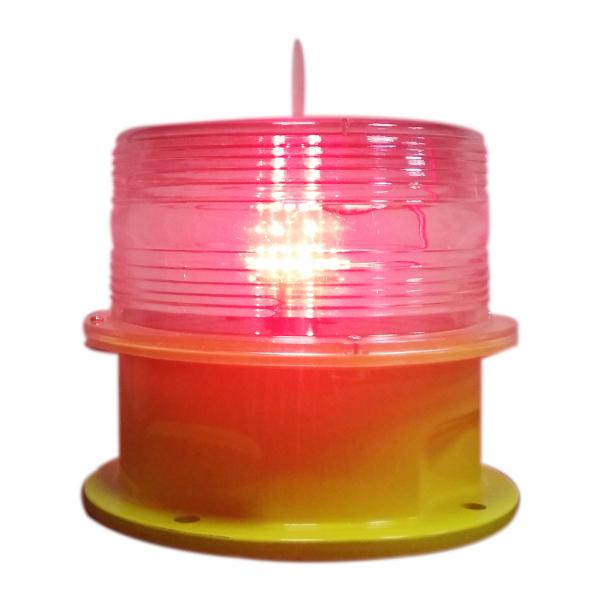

AH-LS-C1 LED Solar Powered Marine Lanterns

This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.

Optional function: The user could change the light flashing characteristics (IALA 366 flashes) easily by IR programmer.

Compliance

IALA E-200-1

Features

Electrical

Based on LED technology, and its color complies to IALA Recommendations E-200-1.

LED technology reduces maintenance time & costs

Physical

Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).

PC housing,UV resistance, shockproof and corrosion proof.

Bird deterrent spike

Powder coated die casting aluminum base

Built-in monocrystalline silicon solar panel, conversion efficiency is better than polycrystalline silicon

System design

Built-in photocell for day/night operation(dusk to dawn operation)

ON/OFF button interface located under base

Optional

External battery charger

GPS sync flashing

366 IALA flash characteristics adjustable

Infrared Programmer for flashing rate setting

Application

AH-LS-C1 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.

Description Parameter
Light Source LED
Flash Characteristics

FL3S(0.2,2.8) (others are optional)
Operation Mode

Dusk-to-dawn Automatically (Built-in photocell)
LED Life Experience(hours) >100,000
Solar Module Type Mono crystalline Silicon
Output(watts) 3W
Battery type Lithium ion battery

Nominal Voltage (V)

 3.7V

Battery Capacity (Ah)

Depends on different visible range

Charging Regulation

Microprocessor controlled
Humidity 10%-95%RH(No condensation)
Wind Speed

0~100%
Waterproof IP68

IALA

Signal colors compliance to IALA E-200-1

Company Information

Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.


Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
