Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
Specifications
Brand Name :
ANNHUNG
MOQ :
1
Flash Rate :
20-60FPM
Payment Terms :
T/T,Western Union
Price :
88888
Input Voltage :
12Vdc
Body Material :
Aluminum Alloy
Color Temperature :
Red
Lifespan :
>100,000 hours
Light Source :
LED
Supply Ability :
1000pcs per month
IP Rating :
IP66
Battery Type :
Lithium ion
Light Intensity :
≥2000cd
Wind Resistance :
240Km/h
Delivery Time :
3-15days
Beam Angle :
360°
Luminous Flux :
100lm
Certification :
88888
Luminous Efficiency :
100lm/w
Place of Origin :
Guangdong, China
Model Number :
AH-MI-B2(L)
Solar Module :
Mono crystalline Silicon
Packaging Details :
Carton
Autonomy :
≥180 hours
Description

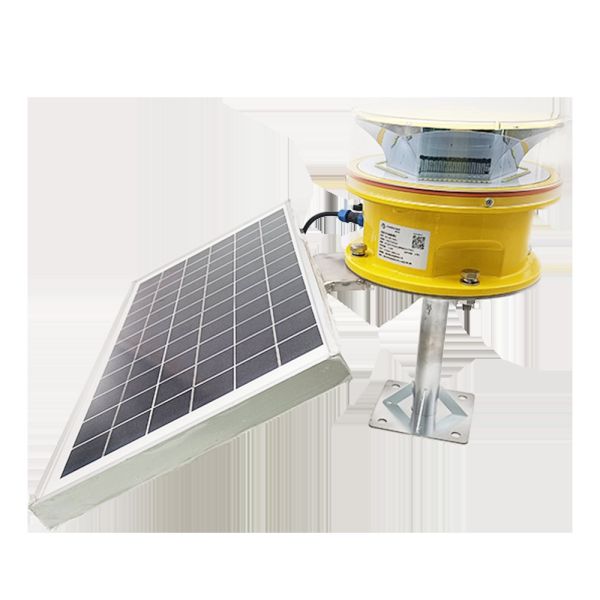

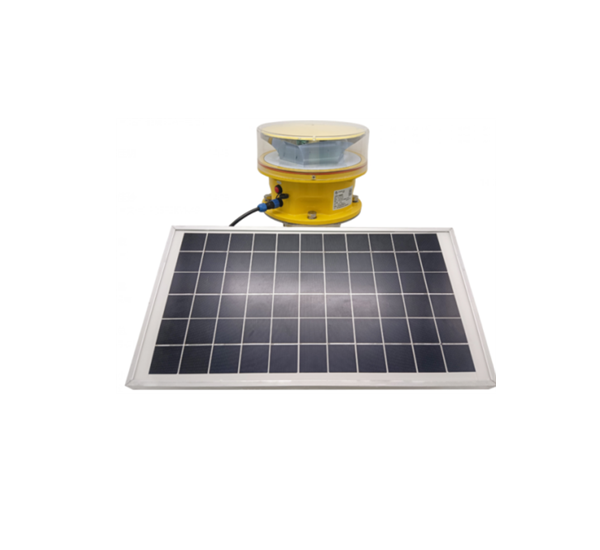

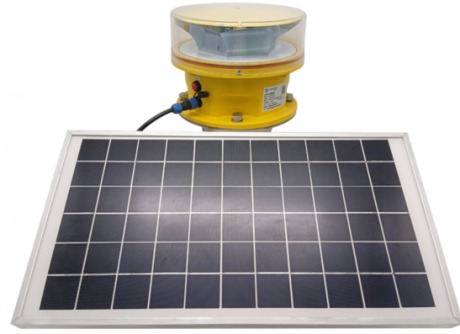

Solar LED Red Aviation Obstruction Light - Medium Intensity
This LED medium-intensity aviation obstruction light emits red color (white optional), designed for marking obstacles with heights exceeding 45 meters. Featuring ultra-high intensity CREE LEDs and self-designed reflectors for optimal light convergence and energy efficiency.
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
Key Features
  • Ultra high intensity CREE LED light source for long lifespan and superior performance
  • Self-designed reflector system for maximum light convergence with minimal power consumption
  • Solar powered with lithium ion battery backup
  • 360-degree beam angle for comprehensive visibility
  • IP66 rated for weather resistance
  • Withstands wind speeds up to 240 km/h
Compliance Standards
  • ICAO Annex 14 Volume 1, Seventh edition, 2016 - Medium Intensity Type B/C Obstruction Light
  • FAA L-864, FAA L-885
  • CAAC MH6012-2015 Aviation obstruction light, MH 5001-2013 Aerodrome technical standards
Technical Specifications
Specification Value
Warranty 1 Year
Type Aviation Obstruction Lights
Lifespan >100,000 hours
Working Time >10 years (Battery 3-5 years)
Product Weight 2.5 kg
Input Voltage 12V DC
Light Intensity ≥2000 cd
Flash Characteristics 20-60 FPM
Battery Type Lithium ion battery
Solar Module Type Mono crystalline Silicon
Autonomy ≥180 hours (20 FPM, longer optional)
Wind Speed Rating 240 Km/h
IP Rating IP66
Emitting Color Red
Lamp Body Material Aluminum Alloy
Application Cases
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness

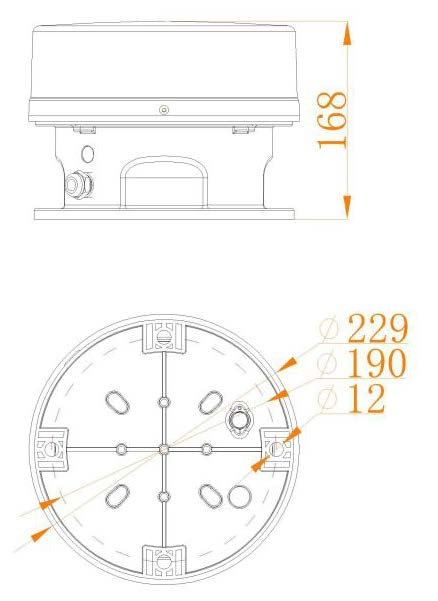

Product Dimensions
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
Packaging & Delivery
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
About ANNHUNG Technology
Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness Solar Aviation Obstruction Light LED Red Medium Intensity with IP66 Aluminum Alloy and ≥2000cd Brightness
