Specifications
Brand Name :
WelandSignal
Model Number :
OM2K-B
Certification :
ROHS, CE
Place of Origin :
SHAANXI, CHINA
MOQ :
1pc
Price :
USD$200
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
Each has one small carton and 6pcs in one big carton
Light source :
super bright LED
Color :
Red, Green, Yellow, Blue, White
Material :
Polycarbonate, Shock-resistance, anti-UV, Salt and dust self-protection
Working Mode :
Flashing, steady on
Peak intensity :
2500cd
Waterproof :
IP68
Mounting :
4pcs bolts
Warranty :
5 years
OEM :
color, flashing frequency, logo, carton design
Standard :
FAA,ICAO
Application :
tower, chimney ,tall buildings, bridge aviation obstruction lighting area
Description

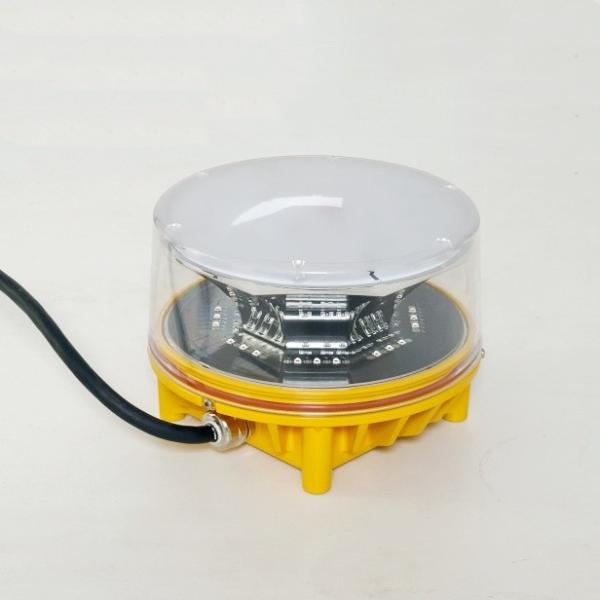

OM2K-B Medium Intensity OB Light: The Next Level in Tower Safety
Introducing the OM2K-B, the latest medium intensity OB light designed to take your aviation safety to the next level. Building on the success of the OM2K, the OM2K-B takes advantage of the latest technology to give you better performance. It has a sleeker, more refined design that is easier to install and adds a touch of class to any structure.

SPECIFICATIONS

OM2K-B Medium Intensity Aviation Obstruction Light

Mechanical Specifications Electrical Specifications

Peak Intensity

2500cd Structure

Excellent heat dissipation

Working Model

Flahing/Steady On Lens Material Polycarbonate

Protect Level

IP68 Voltage 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC

Energy Manage System (EMS)

Intelligent Microprocessor Function Optional Synchronization

Temperature

-45℃~70℃ Installation M6*4pcs bolts

Automatic Light Control (ALC)

Turn on at night and off at daytime automatically Applications tower, chimney ,tall buildings, bridge aviation obstruction lighting area

Key Enhancements:

  • Improved LED Efficiency: The OM2K-B uses an optical flat lens with an internal reflector to increase the light output from the LED, making it brighter and more efficient.

High-Power OSRAM LEDs: The OM2K-B uses high-power OSRAM LEDs to give you long life and exceptional brightness for high-demand applications.

  • Better Thermal Management: The OM2K-B has a new heat dissipation design that provides stable, reliable performance even at maximum brightness, extending the life of the light.
  • Sleek, Compact Design: The OM2K-B is smaller and more stylish, giving you a tough light that looks great and works great

Features:

  • ICAO-Compliant Optical Design: Precision designed for compliance with ICAO standards to give you the best performance in aviation applications.
  • High-Quality Aluminum Head: Made from high-quality aluminum to provide excellent thermal efficiency, contributing to the long life of the LEDs.
  • Advanced Shock Resistance: Built to outlast traditional Xenon lights with better shock resistance and reliability.
    Low Maintenance: Designed for long life with minimal maintenance.
  • Safe Low-Voltage Operation: Low voltage for safety, the light is safe to use in many different applications.
  • Long-Term Cost Efficiency: This light is a cost-effective solution that gives you a great return on investment.
  • 5-Year Warranty: Backed by a 5-year warranty to give you peace of mind and long-term support.

Applications:

  • Telecommunication towers
  • Radio towers
  • Wind turbines
  • Smokestacks and chimneys

Standards:

  • ICAO Annex 14, 4th Edition, July 2004: Complies with international aviation safety regulations.
  • FAA AC No. 150/5345-43F, 2006: Meets U.S. Federal Aviation Administration guidelines for obstruction lighting.

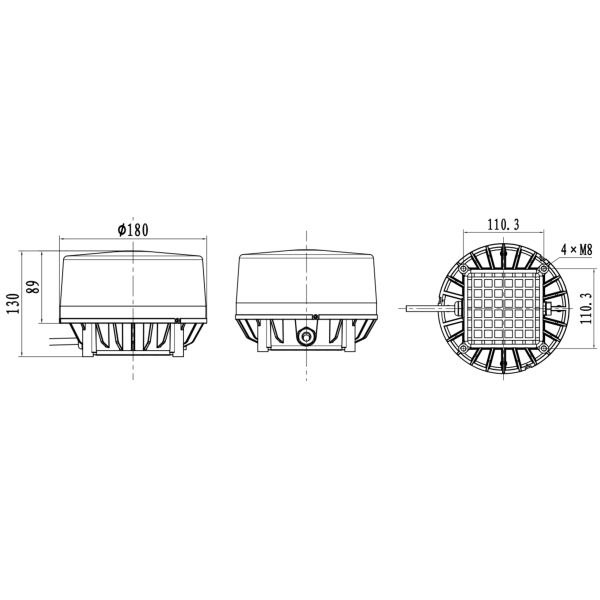

Dimension(mm):

ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light For Towers And Buildings
